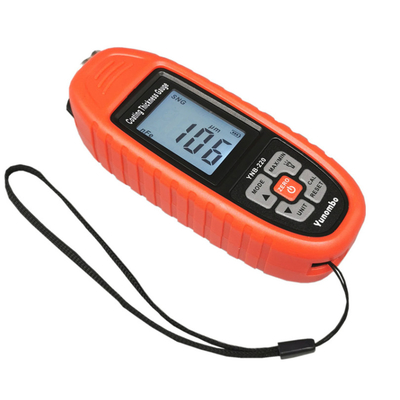

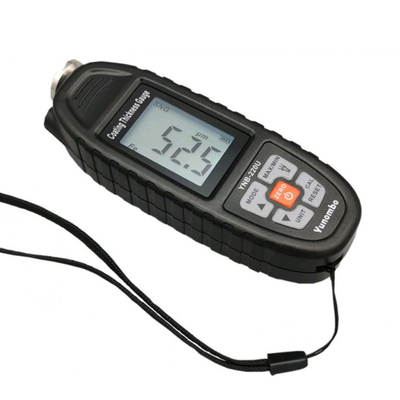

YNB-220U Coating Car Paint Thickness Gauge With Color Rotate Display

Original Yunombo Car Paint Thickness Gauge YNB-220 YNB-220U YNB-220B Coating Thickness Gauge Color&Rotate display

YNB-220U Yunombo (Fe + Zn / Fe / NFe) is a high-quality thickness gauge of paint coating, designed to measure the thickness of paint both on magnetic metals (example: iron Fe. steel) and on non-magnetic metals (aluminum, copper, NFe). The paint tester allows you to perform accurate thickness measurements in the range up to 1500 μm (1.5 mm), in three modes: constant (CON), unit (SNG) and relative (DIFF) measurements. Statistics are represented by the functions of displaying average (AVG) minimum (MIN) and maximum (MAX) values.

An important difference between the YNB-200U paint tester is the fe+zn galvanizing detection function, as well as an extended operating temperature range from -20 ºС to 40 ºС.

However, there are three modifications to the YNB220, somewhat different in functionality and equipment, namely:

YNB220B – basic, no detection of galvanizing, built-in LED

YNB220U / YNB220 – automatic detection of the presence of galvanized Fe + Zn, built-in ultraviolet flashlight (model YNB220U).

Paint tester YNB-220U is successfully used to check the body parts of cars for the presence of hidden damage and when controlling the paintwork. The use of an automotive thickness gauge will allow you to find and identify all the body repairs and restoration of the paintwork.

The thickness gauge is powered by two 1.5 V AAA batteries (supplied) !

TECHNICAL CHARACTERISTICS of the thickness gauge paint YNB-220U:
• Types of metals: magnetic (Fe), non-magnetic (NFe), magnetic with galvanizing (Fe+ Zn)
• Measuring modes: single measurements / constant measurements
• Thickness measurement range: from 0 to 1500 μm
• Resolution: 0.0001 mm (0.1 μm) to 100 μm, 0.001 mm (1 μm) more than 100 μm.
• Accuracy: ± 1 μm + 3%, up to 150 μm, ± 5 μm, more than 150 μm
• Minimum substrate diameter: 12 mm
• Minimum substrate thickness: 0.5 mm
• Function to hold the measurement results: yes
• Choice of measurement units: μm / mm / mils
• Auto power off: yes, 2 min, saves battery
power • Power supply: 2 pcs. x 1.5 V, type "AAA"
• Dimensions / weight: 47 mm x 31 mm x 123 mm / 109 grams.

Standard color kit of thickness gauge YNB220U:
• Automotive thickness gauge YNB-220U - 1 pc.

• Set of calibration films (49μm, 102μm, 258μm, 500 μm, 1017 μm, 1517 μm) - 1 set.

• Calibration plates (iron / aluminum) - 1 set.

• Cover - 1 pc. • Battery "AAA"; 1,5 V - 2 pcs. (included)

• User manual - 1 copy.
