410i Smart Hoseless Wireless Probe For Micro Pressure Meter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWarranty | 1 Year | Customized Support | OEM, ODM |
---|---|---|---|
Operating Temperature | -20 To +50 °C | Storage Temperature | -20 To +60 °C |
Battery Life | 250 H (without Illumination, Without Bluetooth) | Dimensions | 200 X 109 X 63 Mm |
Weight | 1060 G | Protection Class | IP42 |
Order Number | 0560 0550 | Range | -1 To 60 Bar |
Overload | 65 Bar | Resolution | 0.01 Bar |
High Light | Hoseless Wireless Probe,Smart Wireless Probe 410i,410i Micro Pressure Meter Smart Probe |
Hot Sales Testo 510i/410i Smart Hoseless and Wireless Micro Pressure Meter Pressure Gauge Pressure Meter Testo 549i

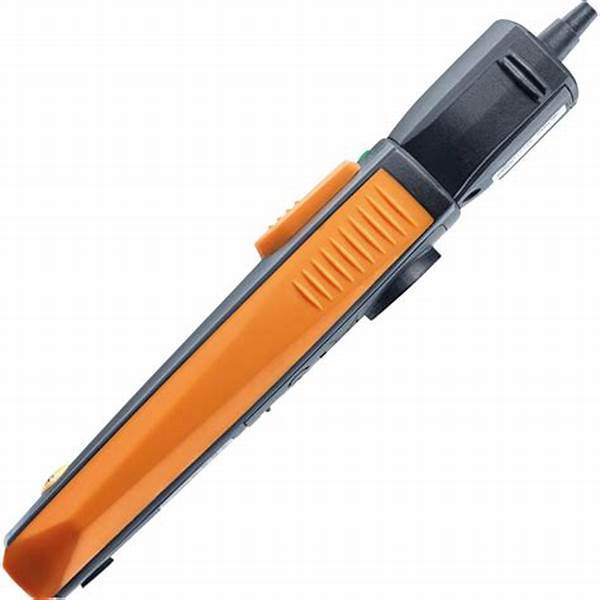

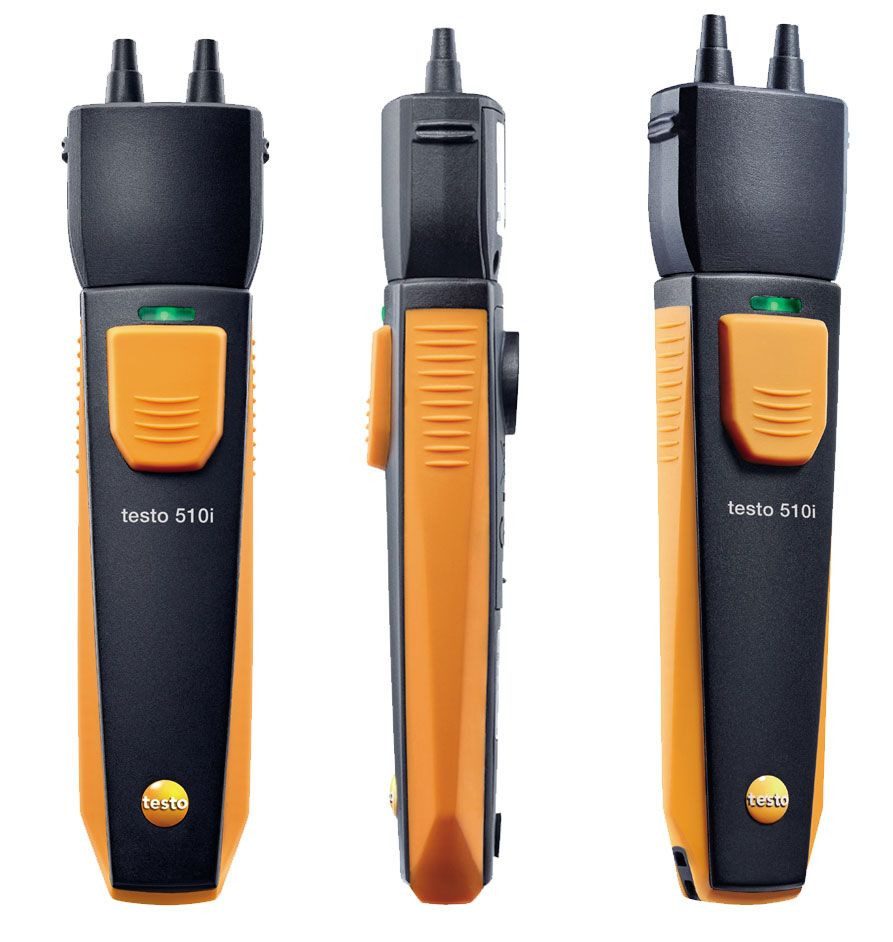

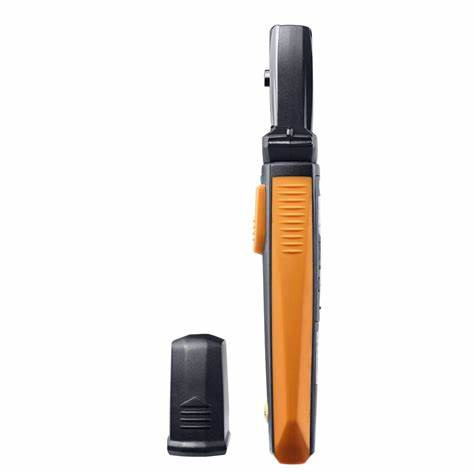

testo 510i - Differential pressure manometer wireless Smart Probe
Order-Nr. 0560 1510
- Pocket-sized temperature and air density-compensated differential pressure measurement
- Measures static pressure, air flow, and volume flow (pitot tube not included)
- Measures manifold pressure and pressure drop across filters and coils, and has a measurement menu in the Smart app that includes pressure drop alarms
- Magnetic back holds instrument for hands-free operation
The testo 510i Smart Probe is a wireless differential pressure probe used for accurate low-pressure measurements. The testo 510i is great for measuring pressure in manifolds, static pressure, and pressure drops in buildings or ventilation systems. Use it to measure the pressure drop across coils and filters, or in ducts and systems.
Details
Product Description
Users can read the measurements using the testo Smart app installed on their smart device. It can be used for determining air velocity and volume flow, when used with pitot tubes (not included). The testo 510i works on smart devices with either Android or Apple operating systems.
The testo Smart app is a powerful and easy to use tool. It allows you to remotely read measurements from up to six (6) Smart Probes, and easily document and report the results. Automatic calculations make it a snap!
All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The app creates custom reports, which can be saved and/or shared by email. All your data can be stored and retrieved, saving you hours of time consuming paperwork!
Delivery Scope
Testo 510i Bluetooth differential pressure probe with hose set (Ø 0.15 in. and 0.2 in.) and adapter, including 3 AAA batteries and certificate of conformity
Technical Data
Differential pressure (internal sensor) - Piezoresistive | |
---|---|
Measuring range | -60 to +60 InH₂O / -150 to +150 hPa |
Accuracy |
±0.02 InH₂O (0 to +0.4 InH₂O) / ±0.05 hPa (0 to +1 hPa) ±(0.1 InH₂O + 1.5 % of mv) (+0 to +60 InH₂O) / ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) |
Resolution | 0.01 InH₂O / 0.01 hPa |
General technical data | |
---|---|
Weight | 3.25 oz. / 92 g |
Dimensions | 6 x 1 x 1 in. / 148 x 36 x 23 mm |
Operating temperature | -4° to 122 °F / -20 to +50 °C |
Housing | ABS / TPE |
System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
Product colour | black/orange |
Battery type | 3 x AAA |
Battery life | 150 h |
Storage temperature | -4° to 140 °F / -20 to +60 °C |
