Place of Origin Germany
Brand Name Testo
Certification CE
Model Number 549
Minimum Order Quantity 1
Price USD$160/PC
Packaging Details Carton
Delivery Time 5-8 work days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Customized Support OEM, ODM
Operating Temperature -20 To +50 °C Storage Temperature -20 To +60 °C
Battery Life 250 H (without Illumination, Without Bluetooth) Dimensions 200 X 109 X 63 Mm
Weight 1060 G Protection Class IP42
Order Number 0560 0550 Range -1 To 60 Bar
Overload 65 Bar Resolution 0.01 Bar
High Light

2 Way Digital Manifold Gauge

,

Temperature Compensated Digital Manifold Gauge

,

Manifold Digital Pneumatic Pressure Gauge
Leave a Message
Product Description

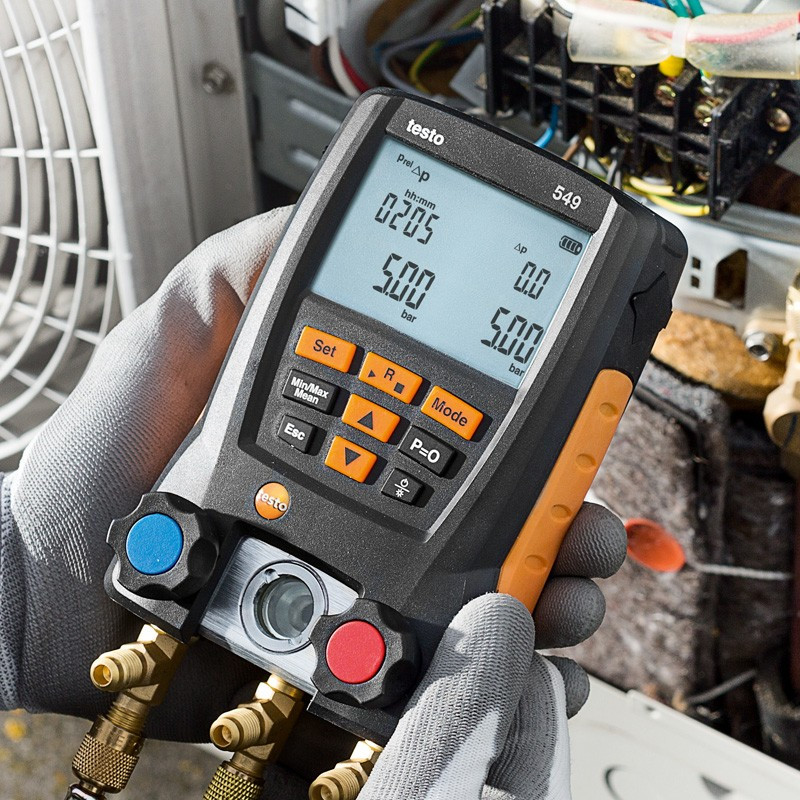

Testo 549 - testo 550 . Digital manifold



The testo 549 digital manifold is a breakthrough value, making analog gauges obsolete. It precisely measures high side / low side pressure and instantly displays the corresponding saturation / evaporation temperatures for 60 refrigerants. With optional temperature probes, automatic superheat and sub-cooling calculations can also be displayed.



Details

Product Description

The versatility of 60 on-board refrigerant profiles means the testo 549 digital manifold is the only gauge that you need. The proven, rugged design will give you years of dependable service. With optional temperature probes the testo 549 digital manifold provides accurate, real-time superheat and sub-cooling at the push of a button.
  • Measures high side / low side pressure and displays saturation / evaportation temperatures
  • 2-way valve block with three connections and sight glass
  • 60 refrigerant profiles stored in the instrument
  • Large 2-line backlit display
  • Provides real-time superheat and sub-cooling with optional temperature probes

Delivery Scope

testo 549, digital manifold; including batteries, certificate of conformity, and user's manual.





Technical Data

Temperature
Measuring range -58° to 302 °F / -50 to +150 °C
Accuracy ±0.9 °F / ±0.5 °C
Resolution 0.1 °F / 0.1 °C
Probe connection 2 Temperature NTC measurement channels





Pressure measurement
Measuring range -15 to +870 psi / -1 to +60 bar
Accuracy ±0.5 % Fs
Resolution 0.14 psi / 0.01 bar
Probe connection 3 x 1/4" SAE
Overload rel. (high pressure) 943 psi / 65 bar





Vacuum
Measuring range -15 to 0 psi (indication) / -1 to 0 bar





General technical data
Weight 37.39 oz. / 1060 g
Dimensions 7.87 x 4.29 x 2.48 in. / 200 x 109 x 63 mm
Operating temperature -4° to 122 °F / -20 to +50 °C
Protection class IP42
Product colour Black
Battery life approx. 250h (display light off, Bluetooth off)
Refrigerants in instrument R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update by Testo Service R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature -4° to 140 °F / -20 to +60 °C
