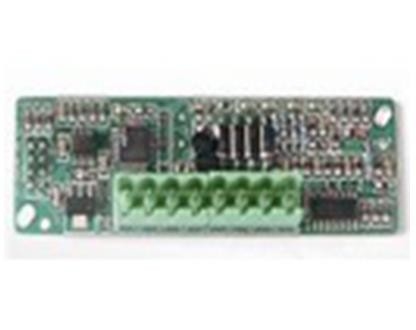

Z-4AD2DA-A-BD BD Plc Expansion Modules Programmable Logic Controller 20mA

  • Z-4AD2DA-A-BD BD Plc Expansion Modules Programmable Logic Controller 20mA
  • Z-4AD2DA-A-BD BD Plc Expansion Modules Programmable Logic Controller 20mA
  • Z-4AD2DA-A-BD BD Plc Expansion Modules Programmable Logic Controller 20mA
  • Z-4AD2DA-A-BD BD Plc Expansion Modules Programmable Logic Controller 20mA
Place of Origin CHINA
Brand Name xinje
Certification CCC ISO
Model Number Z-4AD2DA-A-BD
Minimum Order Quantity 1
Price $95-110/pc
Packaging Details Carton (standard original package)
Delivery Time 14 Work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000/PC/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Integrated Precision ±0.8% Of Full Scale Digital Output Range 10-bit Binary Number (0~1023)
Analog Output Range Analog Output Range Current Inputinput Range 0~20mA, 4~20mA (input Resistor 125Ω)
Ambient Humidity 5~95% Ambient Temperature 0℃~60℃
High Light

BD PLC Expansion Modules

,

Z-4AD2DA-A-BD PLC Expansion Modules

,

Programmable Logic Controller 20mA
Leave a Message
Product Description

Z series BD board

Product features

Special expansion BD board for ZG3 / ZGM series all-in-one controller

It supports 12-bit analog input, and voltage or current mode is optional

Support PT100 platinum thermistor (2-wire system) input, accuracy 0.1 ℃

It supports 10-bit analog output and current mode

Support 20-bit voltage signal 0 ~ 10mV

Support 1-channel RS232 or 1-channel RS485 communication

It is directly installed on the back of the controller without taking up excess space



Product list

Model Function
Z-3AD3PT-BD

3-channel 12 bits high-precision analog voltage input, voltage 0 ~ 10V, 0 ~ 5V optional.

Analog input of 3-channel platinum temperature measuring resistor (PT100 2-wire) temperature sensor, - 100 ~ 500 ℃.
Z-4AD2DA-A-BD

4-channel 12 bits high-precision analog current input, 0 ~ 20mA and 4 ~ 20mA optional.

2-channel 10 bits high-precision analog current output, 0 ~ 20mA and 4 ~ 20mA optional.
Z-1WT-BD 1 channel of 20 bits high-precision voltage signal input, which can collect 0 ~ 10mV voltage signal
Z-2WT-BD 2 channel of 20 bits high-precision voltage signal input, which can collect 0 ~ 10mV voltage signal
Z-NES-BD

1-channel RS232 or 1-channel RS485 communication. The two kinds of communication cannot be used at the same time



Specifications

Z-4AD2DA-A-BD

Item Current input Current output
Analog input range 0~20mA, 4~20mA (input resistor 125Ω) -
Analog output range -

DC0~20mA, 4~20mA

(external load resistor less than 500Ω)
Resolution 1/4096 (12Bit); the transformed data will store in the PLC in hex format (12Bit) 1/1024 (10Bit); the transformed data will store in the PLC in hex format
Digital input range 12-bit binary number (0~4095) -
Digital output range - 10-bit binary number (0~1023)
Integrated precision ±0.8% of full scale
Transformed time 1ms/1 channel 1ms/1 channel
Insulation There is no insulation between each I/O channel, there is insulation between I/O and internal circuit
Points occupy

0 points (the data are operated in data register, it will not be limited by PLC max I/O points)





Z-4AD2DA-A-BD BD Plc Expansion Modules Programmable Logic Controller 20mA 0Z-4AD2DA-A-BD BD Plc Expansion Modules Programmable Logic Controller 20mA 1Z-4AD2DA-A-BD BD Plc Expansion Modules Programmable Logic Controller 20mA 2

Z-3AD3PT-BD

Item Voltage input Temperature input
Analog input range 0~5V, 0~10V (input resistor 13.3kΩ) Pt100 (2-wire) sensor
Temperature range - -100~500℃
Resolution 1/4096 (12Bit); the transformed data is saved in PLC(12-bit) in hex format 0.1℃
Digital input range 12-bit binary numbers (0~4095) -1000~5000
Integrated accuracy ±0.8% of the full scale
Conversion time 1ms/1 channel 1ms/1 channel
Insulation There is no insulation between each I/O channel, there is insulation between I/O and internal circuit
Point occupa 0 points (the data are operated in data register, it will not be limited by PLC max I/O points)



Z-1WT-BD, Z-2WT-BD

Analog input range DC0～10mV(sensor 2mv/v)
A/D actual resolution 1/1048575(20-Bit)
Max display resolution 1/300000
Nonlinear 0.01%F.S
Conversion speed 150 times/second, 300 times/second, 450 times/second optional
Power supply AC220V±10% 50/60Hz
Sensor excitation power supply 5VDC/120mA, four 350 Ω load cells can be connected in parallel
Installation mode Directly mounted on the back of ZG series integral controller
Using environment No corrosive gas
Ambient temperature -10℃~50℃
Ambient humidity 5~95%RH (no condensation)
Software version V3.5.2 and up



Z-NES-BD

Installation mode Directly mounted on the back of ZG series integral controller
Using environment No corrosive gas
Ambient temperature 0℃~60℃
Ambient humidity

5~95%
