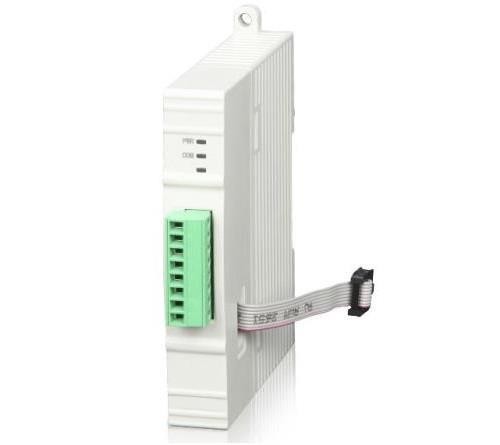

XD Series Encoder SSI Interface Module XD-E4SSI 10-31 Bits

  • XD Series Encoder SSI Interface Module XD-E4SSI 10-31 Bits
  • XD Series Encoder SSI Interface Module XD-E4SSI 10-31 Bits
  • XD Series Encoder SSI Interface Module XD-E4SSI 10-31 Bits
  • XD Series Encoder SSI Interface Module XD-E4SSI 10-31 Bits
Place of Origin CHINA
Brand Name xinje
Certification CCC ISO
Model Number XD-E4SSI
Minimum Order Quantity 1
Price ($236-$296)/PC
Packaging Details Carton (standard original package)
Delivery Time 14 Work days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 1000/PC/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Module Power Supply DC24V（input Range: 20.4~28.8V） Ambient Temperature 0℃~60℃
Storage Ambient Temperature -20~70℃ Encoder Bit Number 10-bit~31-bit
Communication Frequency 125KHz~1MHz Power Supply For Encoder DC24V±10%, 150mA
High Light

Encoder SSI Interface Module

,

SSI Interface Module 31 Bits

,

31 Bits encoder interface module
You can tick the products you need and communicate with us in the message board.
Communication frequency Shielded twisted pair cable length
125KHz Max 320m
250KHz Max 160m
500KHz Max 60m
1MHz Max 20m
Leave a Message
Communication frequency Shielded twisted pair cable length
Product Description

XD series SSI encoder expansion module XD-E4SSI suitable for 10 ~ 31 bits SSI encoder, AC220V power input

XD series SSI encoder expansion module

Support 4-channel absolute encoder position detection or displacement sensor detection. It is suitable for 10 ~ 31 bits SSI encoder, supports 125kHz ~ 1MHz communication frequency, and supports gray code or binary format coding.

Product features

Support 4-channel absolute encoder position detection or 4-channel displacement sensor detection.

XD series PLC can generally expand 10 ~ 16 modules.

Power specification: DC24V

It is suitable for 10 ~ 31 bits SSI encoder, supports 125kHz ~ 1MHz communication frequency, and supports gray code or binary format coding.

It has the function of disconnection detection and alarm.



Model list

Model Function
XD-E4SSI

4-channel encoder detection module, suitable for 10 ~ 31 bits SSI encoder,

AC220V power input

General Specifications

Item Specification
Module power supply DC24V(input range: 20.4~28.8V)
Module power consumption 1W(No load)
Position detection Absolute mode
Difference between SSI data and clock signal Comply with RS422 standard
Use environment No corrosive gas
Ambient temperature 0℃~60℃
Storage ambient temperature -20~70℃
Ambient humidity 5~95%RH
Storage ambient humidity 5~95%RH

Functional Specifications

I/O precision table

Item Encoder input
Encoder bit number 10-bit~31-bit
Digital output range 0~encoder max feedback value
Resolution 1/ encoder max feedback value
Communication frequency 125KHz~1MHz
Encoder type Gray code or binary code
Comprehensive accuracy 1%
Conversion speed 400us/1 channel
Power supply for encoder DC24V±10%, 150mA



Communication speed and cable length

Communication frequency Shielded twisted pair cable length
125KHz Max 320m
250KHz Max 160m
500KHz Max 60m
1MHz

Max 20m



XD Series Encoder SSI Interface Module XD-E4SSI 10-31 Bits 0

XD Series Encoder SSI Interface Module XD-E4SSI 10-31 Bits 1
