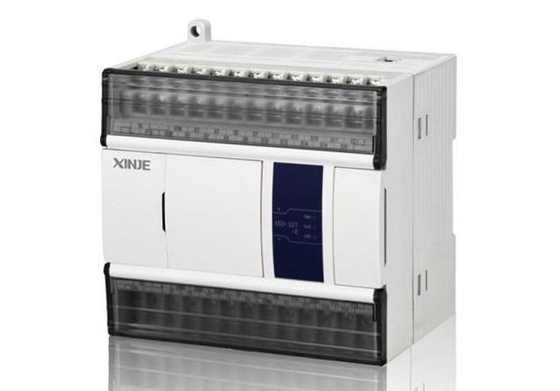

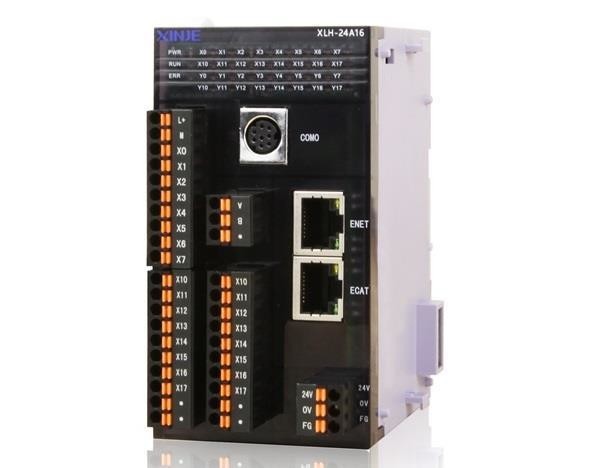

14 Bits High Precision PLC Logic Controller 16 Modules Expandable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOperating Environment | No Corrosive Gas | Ambient Temperature | 0℃~60℃ |
---|---|---|---|
Store Temperature | -20~70℃ | Ambient Humidity | 5~95% RH |
Store Humidity | 5~95% RH | Comprehensive Accuracy | 1% |
Highlight | High Precision PLC Logic Controller,PLC Logic Controller 16 Modules,14 Bits programmable logical controller |
Voltage input | 0~5V, 0~10V, -5~5V, -10~10V | |
---|---|---|
Current input | 0~20mA, 4~20mA -20~20mA | |
Voltage output | 0~5V,0~10V -5~5V, -10~10V (External load resistor 2KΩ~1MΩ) | |
Current output | 0~20mA 4~20mA (External load resistor < 500Ω) |
XG series AD/DA expansion module
XG series PLC is suitable for analog input and output right expansion module, including 4-point input and 2-point output specifications. XG series PLC can generally expand 16 modules.
Product features
XG series PLC is suitable for analog input and output right expansion module,
including 4-point input and 2-point output specifications.
XG series PLC can generally expand 16 modules.
Power specification: DC24V
14 bits high-precision analog input and 12 bits high-precision analog output
Analog input type: voltage and current are optional
Analog output type: voltage and current are optional
Analog input and output are bipolar
Model list
Model | Function |
XG-E4AD2DA | 4-channel 14-bit analog input (current and voltage optional), Voltage 0 ~ 10V, 0 ~ 5V, ± 5V, ± 10V optional, Current 0 ~ 20mA, 4 ~ 20mA, - 20 ~ 20mA optional. 2-channel 12-bit analog output (current and voltage optional). Voltage 0 ~ 10V, 0 ~ 5V, ± 5V, ± 10V optional. Current 0 ~ 20mA, 4 ~ 20mA optional |
-
General Specifications
Operating Environment No corrosive gas Ambient Temperature 0℃~60℃ Store Temperature -20~70℃ Ambient Humidity 5~95% RH Store Humidity 5~95% RH Installation Can be fixed with M3 screw or directly installed on DIN46277 rail (width: 35mm)
Functional Specifications
Item | Voltage input | Current input | Voltage output | Current output | |
4AD2DA | 4AD2DA | 4AD2DA | 4AD2DA | ||
Analog input range |
0~5V, 0~10V, -5~5V, -10~10V |
0~20mA, 4~20mA -20~20mA |
- | - | |
Max input range | DC±15V | -40~40mA | - | - | |
Analog output range | - | - |
0~5V,0~10V -5~5V, -10~10V (External load resistor 2KΩ~1MΩ) |
0~20mA 4~20mA (External load resistor < 500Ω) |
|
Digital input range | - | - | 12-bit binary value | ||
0~4095 or -2048~2047 | 0~4095 | ||||
Digital output range |
14-bit binary value (0~16383 or -8192~8191) |
- | |||
Resolution | 1/16383(14-Bit), the converted data is stored in PLC in hexadecimal form (14-Bit) | 1/4095(12-Bit), the converted data is stored in PLC in hexadecimal form (12-Bit) | |||
Comprehensive accuracy | 1% | ||||
Conversion speed | 2ms/1 channel | 2ms/1 channel | |||
Power supply for analog vlaue |
DC24V±10%, 150mA |
