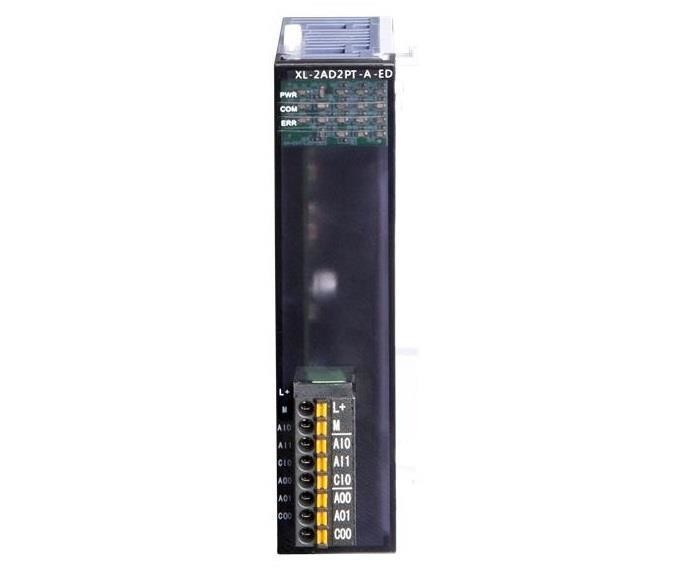

8 Points XG2 Programmable Logic Controller 16MB Medium PLC

  • 8 Points XG2 Programmable Logic Controller 16MB Medium PLC
  • 8 Points XG2 Programmable Logic Controller 16MB Medium PLC
  • 8 Points XG2 Programmable Logic Controller 16MB Medium PLC
  • 8 Points XG2 Programmable Logic Controller 16MB Medium PLC
  • 8 Points XG2 Programmable Logic Controller 16MB Medium PLC
Place of Origin China
Brand Name xinje
Certification CCC ISO
Model Number XG2-26T4
Minimum Order Quantity 1
Price ($400-$450)/PC
Packaging Details Carton (standard original package)
Delivery Time 7 Work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000/PC/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Program Execution Mode Loop Scan Mode Programming Mode Command And Ladder Chart
Processing Speed 0.005~0.01us Power-off Retentive FlashROM And 3V Lithium Battery
User Program Capacity ※1 16MB Output Points 8 Points Y0~Y7
High Light

8 Points Programmable Logic Controller

,

Programmable Logic Controller 16MB

,

16MB Medium PLC
You can tick the products you need and communicate with us in the message board.
Insulation voltage Above DC 500V 2MΩ
Anti noise Noise voltage 1000Vp-p 1us pulse 1 minute
Ambient temperature 0℃~60℃
Ambient humidity 5%~95% (no condensation)
Leave a Message
Insulation voltage Above DC 500V 2MΩ
Product Description

XG2 series PLC

Medium sized PLC, with powerful function, strong applicability and larger storage space. The program capacity is 16MB. It supports the function of EtnerCAT bus and can control the synchronous movement of 32 axes servo motor.

Product features

Medium sized PLC has powerful function, strong applicability and larger storage space

The program capacity is 16MB and the speed is 5-6 times that of XG1

It supports the function of EtnerCAT bus and can control the synchronous movement of 32 axes servo motor

It supports 4-channel high-speed pulse output and 4-channel 200kHz differential input high-speed counting

Support motion control commands such as interpolation and follow-up

It supports NPN and differential signal input, transistor output and DC24V power supply

Up to 16 expansion modules can be connected externally

Support PID, external interrupt, C function block, basic logic control and data operation

Support Ethernet communication, MODBUS communication and other functions

With clock and data power down holding function





Model list

Model

Input points

(DC24V)

Output points

(R, T)
AC power supply DC power supply
  Relay output Transistor output Relay and transistor mixed output Relay output Transistor output Relay and transistor mixed output
NPN - - - - XG2-26T4 - 18 8

8 Points XG2 Programmable Logic Controller 16MB Medium PLC 0

General Specifications

Item Specification
Insulation voltage Above DC 500V 2MΩ
Anti noise Noise voltage 1000Vp-p 1us pulse 1 minute
Air No corrosive and combustible gas
Ambient temperature 0℃~60℃
Ambient humidity 5%~95% (no condensation)
COM1 RS232, Modbus, downloading/uploading/monitoring program and data, connect to other devices
COM2 RS485, Modbus, connect HMI and other devices
COM3 RS485, Modbus, connect HMI and other devices
LAN port 1 RJ45, Ethernet communication, connect upper computer, remote monitor, communicate with other devices in the network
LAN port 2 RJ45, support EtherCAT bus control 32 axes
Installation It can be fixed on the guide rail of XG-EB
Ground (FG) The third kind of grounding (not common grounding with strong current system)






Functional Specifications

Item Specification
Program execution mode Loop scan mode
Programming mode Command and ladder chart
Processing speed 0.005~0.01us
Power-off retentive FlashROM and 3V lithium battery
User program capacity ※1 16MB

I/O

points

※2

 Total points 26 points
Input points 18 points X0~X21
Output points 8 points Y0~Y7
Internal coils (X)※3 1280 points: X0~X77, X10000~X11777, X20000~X20177, X30000~X30077
Internal coils (Y) ※3 1280 points: Y0~Y77, Y10000~Y11777, Y20000~Y20177, Y30000~Y30077

Internal coils

(M, HM)

 798000 points M0~M699999【HM0~HM47999】※4
Special use ※5 SM0~SM49999
Flow (S) 84000 points S0~S79999【HS0~HS3999】※4
Timer (T) Points 58000 points T0~T49999【HT0~HT7999】※4
Spec

100ms timer: 0.1~3276.7s

10ms timer: 0.01~327.67s

1ms timer: 0.001~32.767s
Counter (C) Points 58000 points C0~C49999【HC0~HC7999】※4
Spec

16-bit counter: K0~32,767

32-bit counter: -2147483648~＋2147483647
Data register (D) 810000 words D0~D699999【HD0~HD99999】※4
Special use ※5 SD0~SD9999

FlashROM register

(FD)

 75536 words FD0~FD65535
Special use ※5 SFD0~SFD9999
High speed processing ability High speed counter, pulse output, external interruption
Password protection 6-bit ASCII
Self-diagnose function Power on self-check, monitor timer, grammar check

Note:

※ 1: user program capacity refers to the maximum capacity under secret download mode.

※ 2: refers to the number of input / output points that can be actually connected externally.

※ 3: refers to the internal input / output relay. X / Y exceeding the I / O points can be used as an intermediate relay.

※ 4: the memory area is the default power-off holding area (Note: the power-off holding area of XG2 series PLC cannot be modified).

※ 5: special use (not power down holding) refers to the register occupied by the system for special purposes, which can not be used for other purposes.

※ 6: the above software components are the effective range of PLC in X-NET communication or Ethernet communication mode.





Function configuration table:

Series USB port RS232 port RS485 Ethernet EtherCAT Expansion module High speed counting channel

Pulse output channel

(T/RT)

 External interruption
Increase mode AB phase
XG2-26T4 × √ √ √ √ 16 4 4 4 12

Note: All the models have RTC function.
