RSM Room Status Digital Pressure Gauge 1" Wc 120 VAC For Sensing Low Pressure

Place of Origin USA
Brand Name Dwyer
Certification CE, CSA (RSM only).
Model Number RSM-5-B
Minimum Order Quantity 1
Price ($20-$28)/PC
Packaging Details Carton (standard original package)
Delivery Time 14 Work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000/PC/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy ±0.5% FS. Temperature Limits 32 To 120°F (0 To 50°C).
Thermal Effects ±0.03% FS/ °F (± 0.05% FS/ °C). Service Air Or Nonconductive, Nonexplosive Gases.
Pressure Limits ±15 In W.c. (±3.7 KPa). Output Signal Selectable 4-20 MA (2-wire), 0-5 VDC (3-wire), Or 0-10 VDC (3-wire).
Highlight

RSM Digital Pressure Gauge

,

Digital Pressure Gauge 1" wc

,

RSM Low Pressure Gauge

You can tick the products you need and communicate with us in the message board.
Loop Resistance (4-20 mA output): 0-510 Ω.
Process Connections: Barbed fittings for 3/16" ID tubing.
Dimensions: 8" H x 5.4" W x 1.8" D (20.3 H x 13.7 W x 4.1 D cm).
Weight: 1.5 lb (680 g).
Leave a Message
Loop Resistance (4-20 mA output): 0-510 Ω.
Product Description

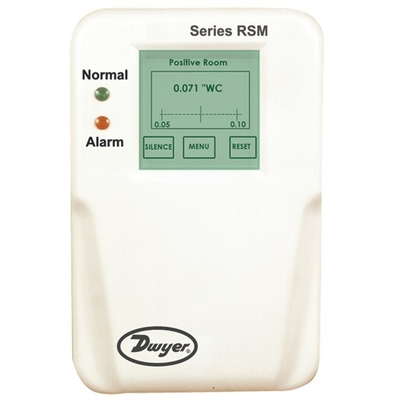

SERIES RSM ROOM STATUS MONITOR

For Sensing Low Pressure Using High Accuracy

Series RSM Room Status Monitor is designed for critical low differential pressure applications that require stringent pressure monitoring and alarming. The Series RSM can be configured to monitor positive or negative pressure in protected environments and hospital isolation rooms per CDC guidelines. The RSM is a complete system with a graphic user interface which enables access to pressure, security, calibration, and alarm setup. The RSM has a NEMA 1 (IP20) rated fire retardant plastic for indoor applications.

PRODUCT APPLICATIONS

  • Hospital Isolation Wards
  • Pharmaceutical
  • Manufacturing
  • Clean Rooms
  • Research Labs
  • Animal Facilities



RSM Room Status Digital Pressure Gauge 1" Wc 120 VAC For Sensing Low Pressure 0

Model Description
RSM-1-A Room status monitor, range ±0.05" w.c., excitation 24 VAC.
RSM-1-B Room status monitor, range ±0.05" w.c., excitation 120 VAC.
RSM-2-A Room status monitor, range ±0.1" w.c., excitation 24 VAC.
RSM-2-B Room status monitor, range ±0.1" w.c., excitation 120 VAC.
RSM-3-A Room status monitor, range ±0.25" w.c., excitation 24 VAC.
RSM-3-B Room status monitor, range ±0.25" w.c., excitation 120 VAC.
RSM-4-A Room status monitor, range ±0.5" w.c., excitation 24 VAC.
RSM-4-B Room status monitor, range ±0.5" w.c., excitation 120 VAC.
RSM-5-A Room status monitor, range ±1" w.c., excitation 24 VAC.
RSM-5-B Room status monitor, range ±1" w.c., excitation 120 VAC.
RSM-6-A Room status monitor, range ±2.5" w.c., excitation 24 VAC.
RSM-6-B Room status monitor, range ±2.5" w.c., excitation 120 VAC.



RSM Room Status Digital Pressure Gauge 1" Wc 120 VAC For Sensing Low Pressure 1



FEATURES

  • Accurately monitor protective environments for negative or positive pressure ensuring safety and reducing risk of catastrophic events
  • Audible and visual alarm provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
  • Password protected set up menu helps to insure no errors by untrained personnel
  • Optional BACnet communication from devices provides integration into building control system for automated control and centralized monitoring and alarming



OPTIONS

  • Note: For optional BACnet communication change end from -A to -C for 24 VAC power or from -B to -D for 120 VAC power models.

RSM Room Status Digital Pressure Gauge 1" Wc 120 VAC For Sensing Low Pressure 2
