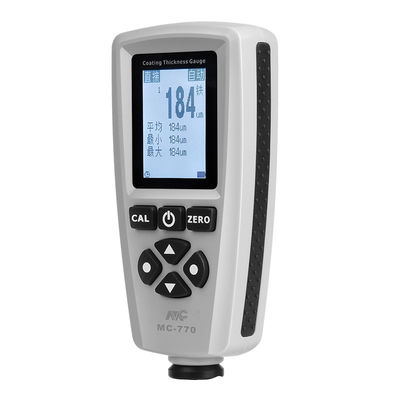

MC 770 Paint Thickness Meter Digital 0 To 2000uM High Precision

Place of Origin China
Brand Name MC
Certification CCC.CE
Model Number MC 770
Minimum Order Quantity 1
Price usd90 piece/pieces
Packaging Details carton
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Brand Name MC Model MC-770
Measuring Range 0~2000μm Product Name Coating Thickness Gauge
Probe Triggering Force 0.3~0.8N Operating Temperature -10~50℃
High Light

MC 770 Paint Thickness Meter


Paint Thickness Meter Digital 2000uM


MC 770 Film Thickness Tester

You can tick the products you need and communicate with us in the message board.
Brand name MC
Model MC-770
Warranty 1 year
Customized support OEM, ODM
Probe triggering force 0.3~0.8N
operating temperature -10~50℃
Leave a Message
Brand name MC
Product Description

Hot Sale Mc 770 Digital Auto Car Paint Thickness Meter Film Thickness Tester Coating Thickness Gauge


product description

Mc-770 series thickness tester can nondestructive measurement of non-conductive coating on metal surface, as well as the thickness of non-ferromagnetic metal coating on ferromagnetic metal surface (such as iron, nickel, cobalt), specific uses include measuring the thickness of iron, stainless steel surface paint or galvanized layer, measuring the thickness of plastic film on aluminum, copper surface paint. Coating thickness measuring instrument has small measurement error, high reliability and stability. With the characteristics of good performance and easy operation, it is an essential testing instrument for controlling and ensuring product quality. It is widely used in second-hand car platform, manufacturing industry, chemical industry, commodity inspection and other testing fields.



1. Maximum measurement speed 2 times/SEC, ruby high-precision probe iron/aluminum dual-use/automatic identification of substrate surface.

2. Cold and high temperature resistance -10℃~50℃ environment measurement data is still accurate.

3. Long energy saving, no operation for a long time will automatically shut down.

4. Red screen warning, beyond the range of red display.

5. Screen reversal, suitable for a variety of environment measurement Angle.

6. Data transfer computer, suitable for a variety of environment measurement Angle.


General car original car paint thickness between 100-200um, and the thickness of the paint will increase significantly, may be 500-1000um or even a little thick, standard name: "QCT 484-1999 paint quality standard". Among them, the first regulation is for the standard of cheap pure entry economic minicars (naked car price is less than 50,000), its paint thickness can not be less than 90um, we can say that the paint thickness of this class of models is relatively low. Lower than 90um is regarded as paint jerks.

Second: the standard is for Any model of Aoyu 50 thousand yuan standard, this standard will improve some; The low cannot be lower than 120um. Lower than 120um is regarded as jerry-built.

MC 770 Paint Thickness Meter Digital 0 To 2000uM High Precision 0

Method of measurement

1. Five points A, B,c,D.E on the side door of the car body.

2. Each point is measured three times and averaged.

3. Add the average of the five points and take the average.

4. Get the average thickness of this part.

The measured results

A. 134.6 um

B. Average thickness of 110.4um front door

C. 115.6 um 120.64 PM

D. 116.9 um

E. 125.7 um

We measured the rest of the car in the same way

Average hood thickness: 119.4um

Average roof thickness: 121.8um

Average trunk cover thickness: 112.6pm

Average thickness of front door: 120.64um



Brand name MC
Model MC-770
Probe location: built-in
measuring range 0~2000μm
Probe triggering force 0.3~0.8N
Minimum measurement area Diameter 15 mm
boundary dimension 114*53*25mm
Accuracy ±(2.5%+1μm)
Weight 80g
operating temperature -10~50℃
product name Coating thickness gauge
Warranty 1 year



MC 770 Paint Thickness Meter Digital 0 To 2000uM High Precision 1
