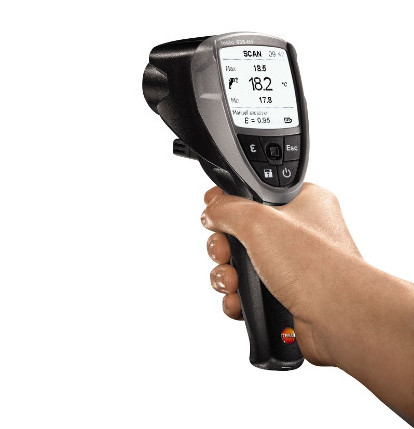

Testo 835-H1 Smart Infrared Thermometer ABS PC With Humidity Module Measuring Range

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeasuring Range | -50 ~ +600 °C | Measurement Accuracy | ±(0.5 °C + 0.5 % Of Measured Value) |
---|---|---|---|
Resolutio | N 0.1 °C | Weight | 514g |
Shell | ABS + PC | Backlight | 30 Sec |
Highlight | Testo 835-H1 Smart Infrared Thermometer,Smart Infrared Thermometer ABS PC,ABS PC Testo Infrared Thermometer |
Testo 835-H1 - Infrared thermometer with humidity module Measuring range -50 ~ +600 °C
Introduction
The non-contact temperature and humidity infrared thermometer has a built-in humidity template, which is easy and comfortable to use, can store 200 sets of data, and measure remotely with 50:1 optical resolution.
Measure the temperature and humidity of surfaces such as walls, monitor air conditioning and ventilation systems, maintain industrial systems, or perform quality control of industrial products.
Specification
size | 193 x 166 x 63 mm |
operating temperature | -20 ~ +50 °C |
shell | ABS + PC |
laser spot | switch |
backlight | 30 sec |
Storage capacity | 200 measurements |
Features
The testo 835-H1 infrared thermometer achieves:
- Measure surface temperature, relative humidity, detect dew point and surface humidity
- Detecting critical points of mildew in building structures
- Perform measurements on small, in-service or hard-to-reach locations
Performance characteristic
- 1. 4-point laser aiming to locate the measurement area to avoid wrong measurement
- 2. 50:1 optical resolution for safer remote surface temperature measurement (eg: distance 5m = 10 cm measuring point)
- 3. Adjustable emissivity for consistently reliable measurement results on a wide variety of surfaces
- 4. Connectable external temperature probes: for very low emissivity surface contact temperature measurements - connect the optional temperature probes you need
- 5. The design of buttons and joysticks provides more friendly and simple operation
- 6. Create measurement locations, can store 200 sets of data
- 7. Customize personalized limit, sound and light alarm
- 8. Display with backlight
Distance coefficient ratio (distance: range of measurement)
With the testo 835-H1 it is possible to locate thermal bridges (locations on walls, floors and ceilings that are hotter than nearby areas, mainly due to structural defects) for the early detection or identification of structural defects, energy losses, and mold growth Dangerous location.
Advantages of testo 835-H1:
Quickly identify thermal bridges by scanning walls (even over long distances)
- Analyze the condition of interiors and walls by measuring dew point, dew point distance, and aw value (surface moisture)
- The data is saved so that it can be recorded and compared with previous measurement data to analyze whether the correct action was taken.
Replace Battery
1. Open the battery compartment
2. Remove the used battery and insert a new battery a) Pay attention to polarity!
3. Cover the battery compartment again
