Aluminum 2 Way Air Solenoid Valve 12v Pneumatic AC110V Air Control Solenoid Valve

Place of Origin CHINA
Brand Name AirTac
Certification CCC CE ISO
Model Number 4V210-06 08
Minimum Order Quantity 10
Price $25- $40/pc
Packaging Details 100% original package
Delivery Time 20 work days
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 2000Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Material Material: Aluminum Alloy
Applicable Industries Hotels, Building Material Shops, Condition New
Name Pneumatic Solenoid Valve Marketing Type New Product 2020
Working Medium Electric After Warranty Service Video Technical Support
Highlight

Aluminum 2 way air solenoid valve

,

2 way air solenoid valve 12v Pneumatic

,

AC110V Air Control Solenoid Valve

Leave a Message
Product Description

1. Installation and use.


* When the load changes during work, a cylinder with sufficient output power should be selected.
* Under high temperature or corrosive conditions, the corresponding high temperature or corrosion resistant cylinder should be selected.
* Before the cylinder is connected to the pipeline, remove the internal debris, and the debris enters the cylinder.
* At high temperature. When the powder is large, or there are water droplets, oil slag, or welding slag, the cylinder should adopt relative protective measures.
* The cylinder should be filtered through a filter element above 40mm before it can be used.
* Because the front end of the cylinder and the piston are short, the general stroke cannot be selected too large.
* In a low temperature environment, anti-freezing measures should be taken, and the water in the cylinder will freeze.
* The cylinder should avoid side load during the working process, so as to maintain the normal working life of the cylinder.
* If the cylinder is not used for a long time after the cylinder is removed, pay attention to rust prevention on the surface, and add dust-proof blocking caps to the intake and exhaust ports. Pay special attention; the front and rear covers cannot be disassembled by themselves.



Product parameter table
Warranty
1 Year
Showroom Location
None
Dimension(L*W*H)
20*10*10cm
Name
Pneumatic solenoid valve
Material
Aluminum alloy
Function classification
Directional control valve
Feature
Commutation/pure copper coil/high frequency/durable




2. Specifications


* Action mode: double action type, single action extrusion type, single action introduction type.
* Working medium: air
* Using pressure range: 0.1-1.0MPa.
* Guaranteed pressure resistance: 1.5MPa.
* Working temperature: -20-80 degrees.
* Using speed range mm/s: double action type: 30-500. Single acting type: 50-500.
* Stroke tolerance range: stroke greater than 150 plus 1.4. Stroke less than 150 plus 1.0.
* Buffering form: anti-collision pad.
* Port size: M5X0.8 .PT1/8 .PT1/4. PT3/8.
* Order code: CXSM.
* Magnet code; S
* Cylinder diameter: 12-100mm.

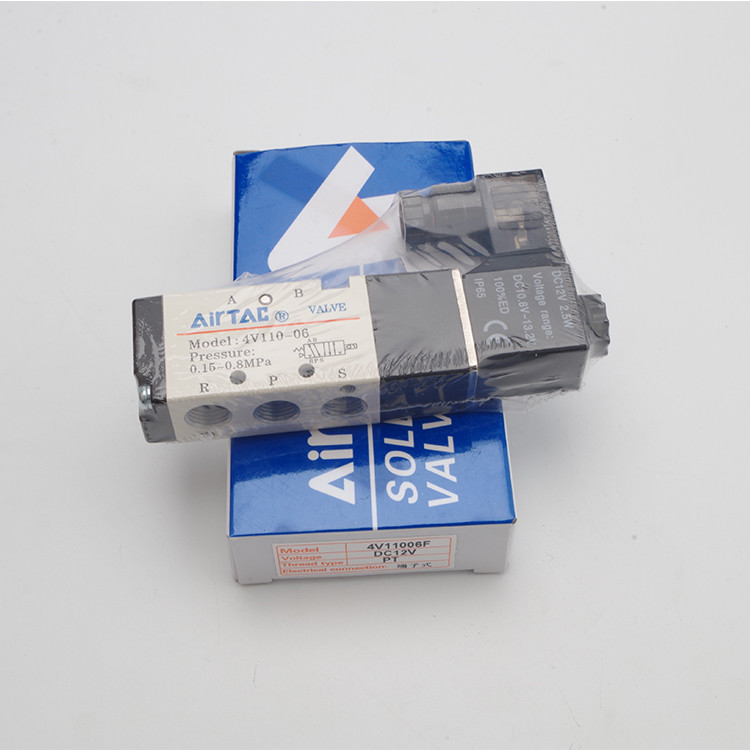

Aluminum 2 Way Air Solenoid Valve 12v Pneumatic AC110V Air Control Solenoid Valve 0

Aluminum 2 Way Air Solenoid Valve 12v Pneumatic AC110V Air Control Solenoid Valve 1

Aluminum 2 Way Air Solenoid Valve 12v Pneumatic AC110V Air Control Solenoid Valve 2

Aluminum 2 Way Air Solenoid Valve 12v Pneumatic AC110V Air Control Solenoid Valve 3
