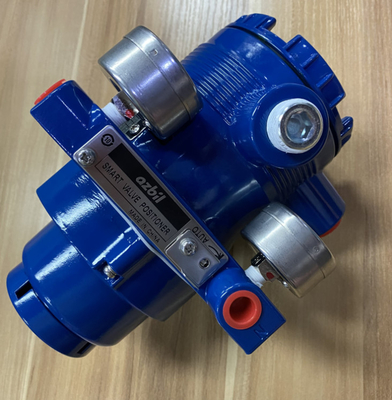

AVP100/AVP102/AVP300/AVP301/AVP302/AVP307 Azbil Valve positioner from Japan pneumatic control valve with positioner and

Place of Origin Japan
Brand Name Azbil
Certification CCC.CE
Model Number AVP100/102
Minimum Order Quantity 1
Price usd680 piece/pieces
Packaging Details carton
Delivery Time 10-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Smart Valve Positioner Brand Model AVP100/102
Brand Name Azbil Port Size G1/2
Material Aluminium Alloy Supply Gas Pressure 140-700kpa
High Light

Azbil smart positioner for control valve

,

aluminium smart positioner for control valve

,

AVP102 azbil smart valve positioner

Leave a Message
Product Description

AVP100/AVP102/AVP300/AVP301/AVP302/AVP307 Azbil Valve positioner from Japan pneumatic control valve with positioner and 4-20ma



product presentation

characteristic

1, debugging is simple Ease of use

Automatic settingAutomatic setting software is a fully automated configuration program.

Locator, relative to other brands AVP3000 without other peripherals on actuator specifications for automatic recognition, automatic optimization adjustment and according to the specifications.

For a basic set AVP3000 without a PC or peripheral equipment, software by setting off automatically.

Field intelligent communication

Through the applicable yamatake company all field intelligent instrument field intelligent com (SFC) can carry on the calibration to the AVP and set.



2, meet different application requirements of optimization setting

Mandatory set fittedWhen the process requires mandatory seated valve, AVP by setting up the signal in a position to cut off, not special gas supply pressure is required to ensure that the valve actuator can completely shut down.

Traffic feature User-defined

Linear, equal percentage and fast opening characteristics are standard, and the user can also change the valve flow characteristics to meet field process requirements by setting the positioner input/output characteristics. Precise separation setting the user can easily realize the valve separation control through field intelligent communicator (SFC) (minimum set range of 4mA) to meet the requirements of field process characteristics.



3. Efficient and reasonable maintenance

AVP reduces spare parts warehousing costs because every specification change is set by software.

Valve position feedback monitoring
The AVP provides valve position feedback units as an optional accessory to monitor valve action for early detection of problems.
Self diagnosis
AVP provides self-diagnostic procedures to ensure quick determination of regulator failures.

4. Single/double acting actuator (double acting function is optional)
By means of a reverse amplifier, the AVP can be fitted with a double-acting actuator.


Product Parameter

Product name Azbil
Brand model AVP100/102
adaptive temperature -40~-80℃
materials aluminium  aluminium alloy
output signal  4-20 mA DC
Air connection 1/4NPT internal thread
supply gas pressure 140-700kpa
colour blue
weight 3.5KG
drive current  3.85mA

The SVP is an intelligent valve positioner that can be connected to a 4-20 mA controller output signal line. Since all adjustments can be performed electrically, the relationship between the input signal and the position of the control valve can be set arbitrarily.

Applicable actuator:


Single acting and double acting actuators

Straight stroke and Angle stroke actuator
