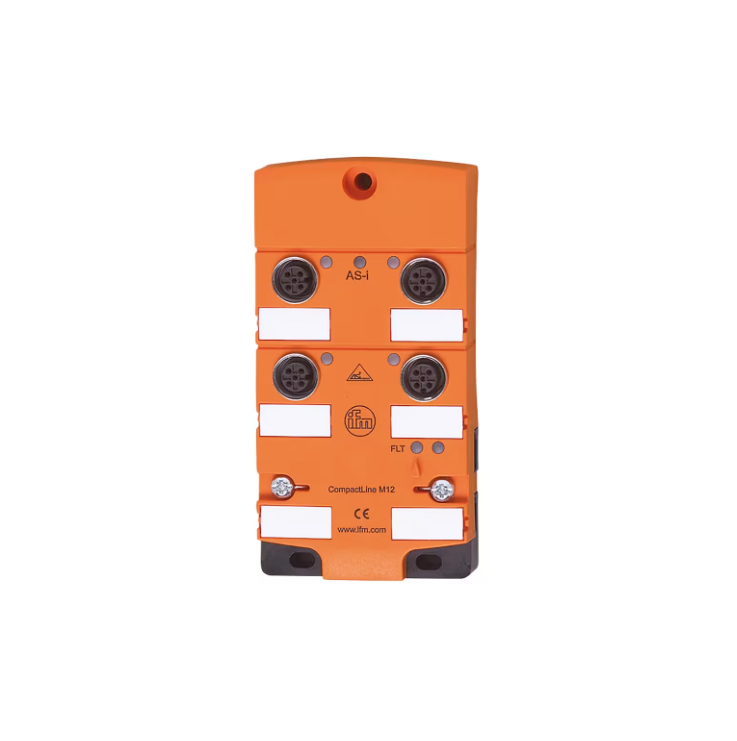

New original AS Interface CompactLine module German IFM AC2412 in stock
| Place of Origin | Germany |
|---|---|
| Brand Name | IFM |
| Model Number | AC2412 |
| Minimum Order Quantity | 2 |
| Price | USD＄248 |

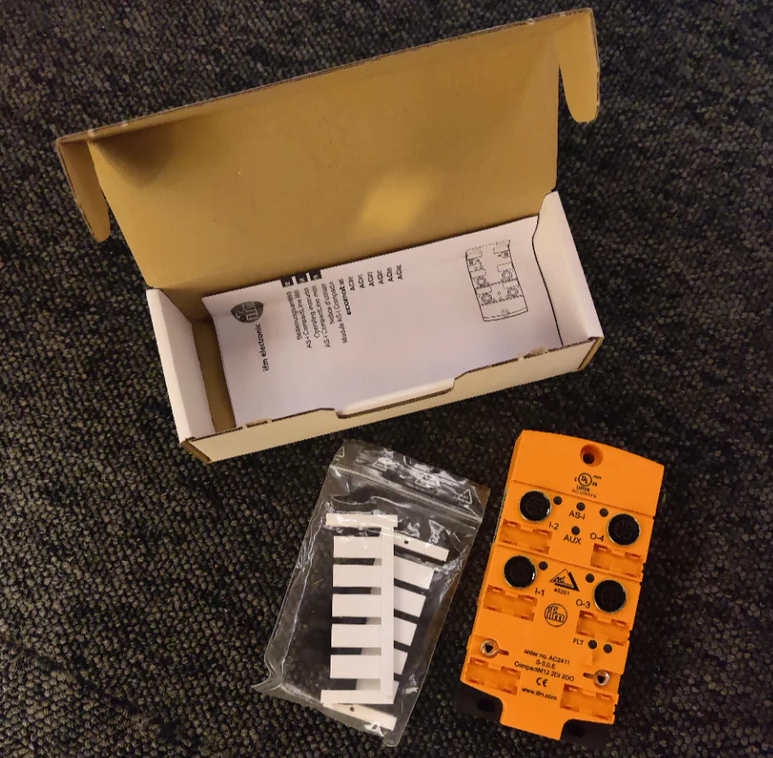

| Packaging Details | Original packaging |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10PC |
Product Details
Product Description
Electrical data
| Operating voltage[V] | 26.5...31.6 DC |
| Max. current consumption from AS-i[mA] | 250 |
| Max. current load total[A] | 4 |
| Additional voltage supply[V] | 10...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] | 4000; (AUX) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 4 |
Inputs
| Number of digital inputs | 4 |
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs | AS-i |
| Voltage supply[V] | 20...30; (DC) |
| Max. total current rating of inputs[mA] | 200 |
| Input current limitation[mA] | 15 |
| Input current High[mA] | 6...10 |
| Input current Low[mA] | 0...2 |
| Switching level high[V] | > 11 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 4 |
| Circuit | PNP |
| Voltage range DC[V] | 10...30; (AUX) |
| Max. current load per output[mA] | 2000; (utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)) |
| Max. current load outputs total[A] | 4 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AUX |
Operating conditions
| Ambient temperature[°C] | -25...80 |
| Storage temperature[°C] | -20...80 |
| Max. relative air humidity[%] | 90; (non condensing) |
| Max. height above sea level[m] | 2000 |
| Protection | IP 67; (when flat cables are used E7400x / E7401x) |
