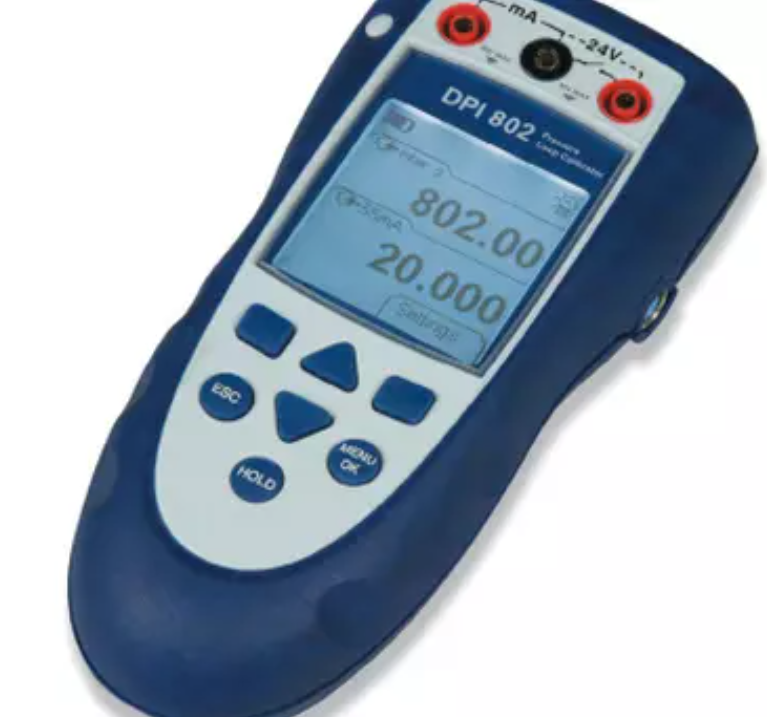

Druck DPI 800/802 pressure indicator/loop calibrator

The Druck DPI 802 pressure loop calibrator provides simultaneous pressure and mA measurement for transmitter and loop maintenance. It is designed for technicians that are in the field performing work such as calibration and repair service or equipment installation and maintenance, as well as technicians in a variety of manufacturing environments. A Druck DPI 802 pressure indicator and loop calibrator used in conjunction with a pressure source from the Druck range of hand pumps provides a simple and cost effective calibrator for gauges, indicators, and recorders.

Pressure Instrument and Loop Maintenance: Druck DPI 802 Pressure Loop Calibrator
The Druck DPI 802 pressure loop calibrator provides pressure and mA measurement for transmitter / loop maintenance.

Other features of the Druck DPI 802 pressure loop calibrator include:

24 Loop Power Supply - Energizes transmitters and control loops
Automatic Switch Test - Captures open/closed trip values, which provides a fast and highly accurate "safety system" check
HART Resister - Can be switched into the loop when required by a HART digital communicator and avoids the inconvenience of carrying a 250Ω resistor.

DPI 800/802Druck pressure indicator/loop calibratorFeatures • Ranges from 25 mbar to 700 bar (10 in H2O to 10,000 psi) • Single or dual range configuration • mA measure, switch test and 24V loop power • Large backlit display, menu driven interface • HART® loop resistor • Compact, simple to use, easy to carry • Convenient, one handed operation • Secure grip, impact resistant, elastomer protected • Plug and play IUPM/IUPMP (IDOS) universal pressure modules provide accuracies to 0.05% FS all inclusive or 0.01% precision • Pressure test and maintenance • Transmitter calibration • Loop set-up and diagnostics • Switch verification

The DPI 800 Series provides a complete range of advanced, robust and simple to use hand-held instruments.
