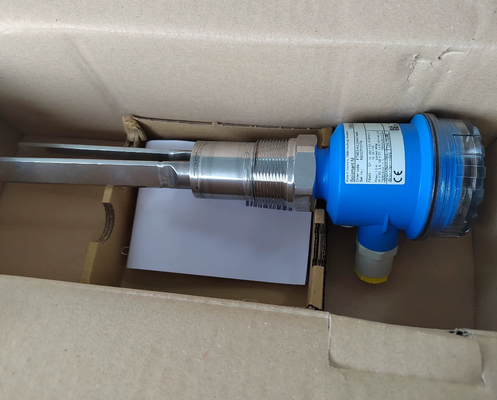

New original Vibronic Point Level Detection Soliphant E+H FTM50-AGJ2A4A13AA short-term delivery

  • New original Vibronic Point Level Detection Soliphant E+H FTM50-AGJ2A4A13AA short-term delivery
  • New original Vibronic Point Level Detection Soliphant E+H FTM50-AGJ2A4A13AA short-term delivery
  • New original Vibronic Point Level Detection Soliphant E+H FTM50-AGJ2A4A13AA short-term delivery
  • New original Vibronic Point Level Detection Soliphant E+H FTM50-AGJ2A4A13AA short-term delivery
  • New original Vibronic Point Level Detection Soliphant E+H FTM50-AGJ2A4A13AA short-term delivery
Place of Origin China
Brand Name E+H
Model Number FTM50-AGJ2A4A13AA
Minimum Order Quantity 1
Price USD＄568
Packaging Details Original packaging
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10PC
Product Details
Leave a Message
Product Description

  • Measuring principle

    Vibration Solids

  • Characteristic / Application

    Compact point level switch for fine grained solids and powder
    Grain size <= 10 mm (<= 0.39 in)
    Fork sensor
    No calibration required
    Not affected by build-up or external vibration
    Robust
    Switch value visible from outside

  • Specialities

    Build-up and corrosion detection
    Remote version
    3 temperature versions available
    SIL 2

  • Supply / Communication

    10-55V DC PNP 3-wire
    19-253V AC 2-wire
    19...253V AC / 19V...55V DC 2 relay contact
    8/16mA
    NAMUR
    PFM

  • Ambient temperature

    -50°C ... 70°C
    (-60°F ... 160 °F)

  • Process temperature

    -50°C ... 280°C
    (-60°F ... 540°F)

  • Process pressure / max. overpressure limit

    Vacuum ... 25 bar
    (Vacuum ... 360 psi)

  • Min. density of medium

    Standard fork: 10 g/l
    Short fork: 50 g/l

  • Main wetted parts

    selectable:
    316L 3,2um
    316L 0,8um
    316L PTFE coated (to avoid build-up)
    316L ETFE coated (to avoid corrosion)

  • Process connection

    Thread
    R 1 1/2"
    1 1/4" NPT
    1 1/2" NPT
    EN Flange DN50...DN100
    ASME Flange 2"...4"
    JIS Flange 50A...100A

  • Process connection hygienic

    Tri-Clamp ISO2852

  • Sensor length

    Standard: 200mm (8")
    Short: 145mm (5.7")

  • Communication

    DC PNP 2-wire
    AC Thyristor
    DPDT relay
    8/16mA
    NAMUR
    PFM

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1

  • Options

    Glass cover
    Temperature spacer
    EN10204-3.1

  • Components

    PFM: FTL325P, FTL375P
    NAMUR: FTL325N, FTL375N
