Dwyer 1823-10 Low Differential Pressure Switch
| Place of Origin | America |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC.CE |
| Model Number | 1823-10 |
| Minimum Order Quantity | 1 |
| Price | usd104 piece/pieces |
| Packaging Details | carton |
| Delivery Time | 10-15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | Dwyer | Model | 1823-10 |
|---|---|---|---|
| Type | Differential Pressure Switch | Operating Range | 2.0 To 10" W.c. |
| Temperature Limits | -34 To 82.2°C | Repeatability | ±2% |
| Process Connection | 1/8" Female NPT | Weight | 1 Lb 5 Oz (595 G) |
| High Light | Dwyer 1823-10 Low Differential Pressure Switch,Low Differential Pressure Switch NPT,NPT diff pressure switch |
||
Product Description
Manual for the Dwyer 1823-10 Low Differential Pressure Switch, 2.0-10" w.c.
product description
Dwyer Differential Pressure Switch Featuring a compact switch with 2% repeatability for enough accuracy for all but the most demanding applications. Setpoint adjustment inside the mounting stud permits mounting switch on one side of a wall or panel with adjustment easily accessible on the opposite side. It comes with an operating range of 2.0 to 10" w.c.
Dwyer 1823-10 Offers
Features
- Compact size and repeatability, provides a high-value switch for many industrial applications
- Designed for panel and wall mounting and provides easy access that simplifies making adjustments or changes to switch setting
- Range of 2.0 to 10" w.c. meets exacting specifications for a low pressure switch
Applications
- Process applications
- Mechanical equipment control
specification
| Brand name | Dwyer | ||
| Model | 1823-10 | ||
| Type | Low Differential Pressure Switch | ||
| Operating Range | 2.0 to 10" w.c. | ||
| Approximate Deadband | At minimum set point: 0.18 At maximum set point: 0.45 |
||
| Temperature Limits | -30 to 180°F (-34 to 82.2°C) | ||
| Electrical Connections | 3 screw type, common, normally open and normally closed | ||
| Process Connection | 1/8" female NPT | ||
| Pressure Limits | 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge | ||
| Repeatability | ±2% | ||
| Process Connection | 1/8" female NPT | ||
| Mounting Orientation | Diaphragm in vertical position | ||
| Set Point Adjustment | Screw type inside mounting spud | ||
| Weight | 1 lb 5 oz (595 g) | ||
| Agency Approvals | CE, CSA, FM, UL |
Model, set range
1823-00 0.07-0.22 Inches w.c.
1823-0 0.15-0.5 Inches w.c.
1823-1 0.3-1.0 Inches w.c.
1823-2 0.5-2.0 Inches w.c.
1823-5 1.5-5.0 Inches w.c.
1823-10 2.0-10 Inches w.c.
1823-20 3-22 Inches w.c.
1823-40 5-44 Inches w.c.
1823-80 9-85 Inches w.c.

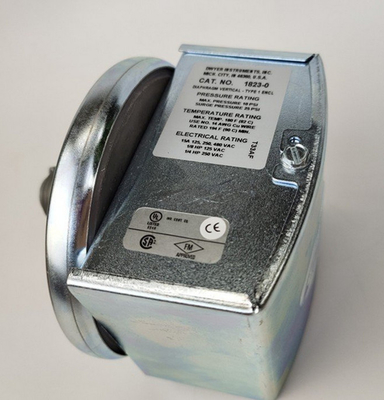

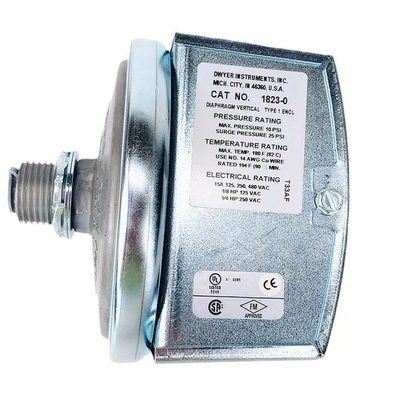

product display
LOW DIFFERENTIAL PRESSURE SWITCH FOR GENERAL INDUSTRIAL SERVICE Set Points from 0.07 in w.c. to 85 in w.c. Repetitive Accuracy within 2%
Essential for industrial environments, the Series 1800 Low Differential Pressure Switch for general industrial service combines small size and low price with 2% repeatability for all but the most demanding applications. Set point adjustment inside the mounting stud permits mounting the switch on one side of a wall or panel with adjustment easily accessible on the opposite side. UL and CSA listed, and FM approved.
