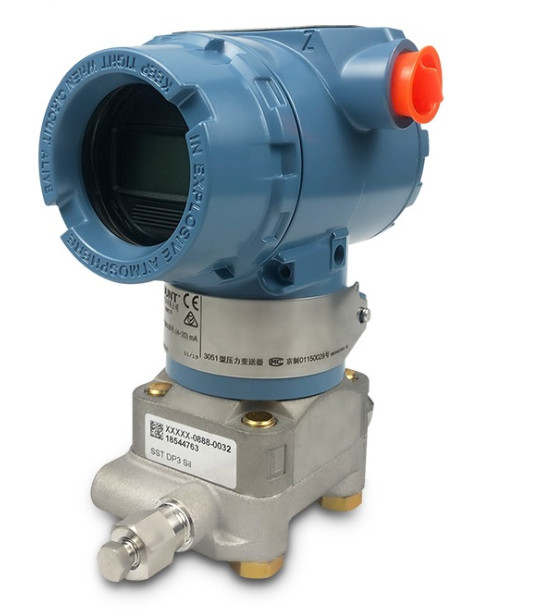

Emerson 3051 Precision Pressure Transmitter 316L Coplanar Pressure Transmitter

Place of Origin America
Brand Name Emerson
Certification ccc,ce
Model Number 3051CD
Minimum Order Quantity 1
Price usd450 piece/pieces
Packaging Details carton
Delivery Time 10-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Brand Name Emerson Output 4~20mA
Ambient Temperature -40~85℃ Accuracy 0.5%FS ,1%FS,0.075%FS
Product Name Coplanar Pressure Transmitter Material 316L
High Light

Emerson 3051 Precision Pressure Transmitter


316L Coplanar Pressure Transmitter


316L Differential Pressure Transmitter

Leave a Message
Product Description

Original Emerson 3051 pressure Transmitter Coplanar platform pressure Transmitter differential


product presentation

Confidently measure pressure and level with the Rosemount 3051 In-Line Pressure Transmitter. Engineered for 10-year installed stability and 0.04% of span accuracy, this industry-leading pressure transmitter provides you with the information necessary to run, control and monitor processes. The Rosemount 3051 includes features that meet your pressure measurement needs, such as a wide rangedown and Power Advisory diagnostics and is suitable for safety installations.

Product Parameter

Brand Name Brand Name
Model Number 3051
Rangedown Up to 150:1
Warranty Up to 5-year limited warranty
Process Wetted Material 316L SST, Alloy C-276
Communication Protocol Wireless HART
Output Differential pressure, scaled variable
Measurement Range Up to 2000 psi (137,89 bar) differential

Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 20000 psig (1378,95 bar) Gage, Up to 20000 psia (1378,95 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276
Diagnostics Basic Diagnostics, Loop Integrity
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications.


Over 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environments
In-line gage and absolute pressure measurements support up to 20,000 psi (1378,95 bar) for pressure and level solutions
10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
Supports common protocols for integration in many host environments across many industries
Wide range of manifolds and remote seals are available – factory-assembled and leak-tested for easy installation
Local Operator Interface (LOI) enables quick commissioning and provides easy access to process and device information
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
Loop Integrity diagnostics detect electrical loop issues for reduced downtime.

Emerson 3051 Precision Pressure Transmitter 316L Coplanar Pressure Transmitter 0



Emerson 3051 Precision Pressure Transmitter 316L Coplanar Pressure Transmitter 1

Emerson 3051 Precision Pressure Transmitter 316L Coplanar Pressure Transmitter 2

Emerson 3051 Precision Pressure Transmitter 316L Coplanar Pressure Transmitter 3

The Rosemount 3051 Coplanar pressure transmitter offers a range of features and design benefits.  This series of pressure transmitters has been installed many times in the field, providing an integrated solution for pressure, level and flow measurement.  The common plane flange of the transmitter brings the flexibility of installation and application. It has the ability of direct process installation, making the installation relatively simple and economical.
