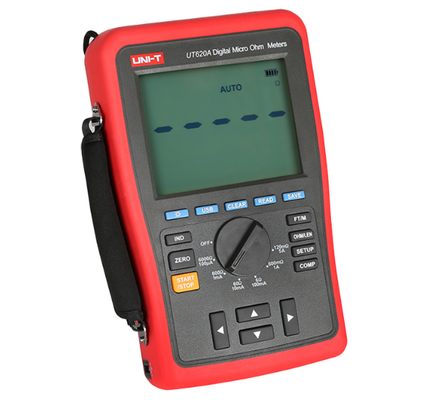

New Original UNI-T UT620A Digital Micro Ohm Meter with 60000 Display Count Four-wire Measurement and 1000 Data Storage
| Place of Origin | China |
|---|---|
| Brand Name | UNI-T |
| Model Number | UT620A |
| Minimum Order Quantity | 1 |
| Price | USD＄285 |
| Packaging Details | Original packaging |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20PC |
Product Details
| Highlight | UNI-T UT620A digital micro ohm meter,original digital micro ohm meter,micro ohm meter with warranty |
||
|---|---|---|---|
Product Description
| Specifications | Range | UT620A |
| Resolution | 10uΩ | |
| Resistance (Ω) | 60mΩ/10A | |
| 120mΩ/5A | ±(0.25%+25) | |
| 600mΩ/1A | ±(0.25%+25) | |
| 6Ω/100mA | ±(0.25%+25) | |
| 60Ω/10mA | ±(0.25%+25) | |
| 600Ω/1mA | ±(0.25%+25) | |
| 6kΩ/100uA | ±(0.75%+30) | |
| Features | ||
| Display count | 60000 | |
| Four-wire measurement | √ | |
| Wire length measurement | √ | |
| High/low limit alarm | √ | |
| Data storage | 1000 | |
| USB data transmission | √ | |
| Manual range | √ | |
| Backlight | √ | |
| Relative value | √ | |
| Low battery indication | √ | |
| Auto power off | ||
| General Characteristics | ||
| Power | Li-ion battery 7.4V 4000mAh, rechargeable | |
| Display | 116mm x 87.5mm | |
| Product color | Red and grey | |
| Product net weight | 1.5kg | |
| Product size | 268mm x 168mm x 60mm | |
