RTD Analog Rail Mounted Temperature Transmitter INOR APAQ-3LPT Adjustable 3 Wire

Place of Origin Germany
Brand Name INOR
Certification CCC.CE
Model Number APAQ-3LPT
Minimum Order Quantity 1
Price usd78 piece/pieces
Packaging Details carton
Delivery Time 5-10 Work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name INOR Model APAQ-3LPT
Type Rail-mounted Input RTD
Input RTD Pt100, Pt1000 Type Of Transmitter Analog
High Light

Analog Rail Mounted Temperature Transmitter

,

RTD Rail Mounted Temperature Transmitter

,

RTD din rail transmitter 3 Wire

You can tick the products you need and communicate with us in the message board.
Model APAQ-3LPT
Type Rail-mounted
Input RTD Pt100, Pt1000
Sensor connection 3-wire connection
Isolation Unisolated
Output 0-10 V
Leave a Message
Model APAQ-3LPT
Product Description

INOR APAQ-3LPT Analog Adjustable 3-wire Transmitters,Analoger, einstellbarer Dreidraht Transmitter



product description

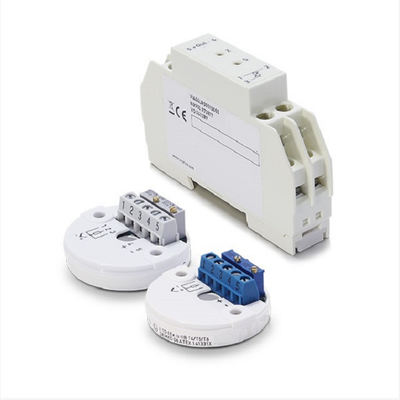

APAQ-3LPT is a multirange 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-10 V output.
Main applications are in the HVAC sector, where the control systems often require 0-10 V input signals.
APAQ-3LPT is designed for high reliability and good industrial performance.



This product is a DIN rail 3-wire transmitter intended for temperature measurement in building automation environment. As all transmitters with potentiometer adjustments, APAQ-transmitters must not be exposed to heavy shocks or vibrations which may cause the transmitter to get out of calibration. To avoid ESD (ElectroStatic Discharge) to the transmitter, which may cause permanent damage, always ground yourself by touching some ground equipment before configuring the transmitter.



  • 0-10 V output
  • Rangeable with solder pads and potentiometers
  • Temperature linear output
  • Selectable sensor break function
  • Short-circuit protected output
  • Polarity protected power supply

Technical Specification

Brand name INOR
Model APAQ-3LPT
Type Rail-mounted
Input RTD
Input RTD Pt100, Pt1000
Type Of Transmitter Analog
Output 0-10 V
Isolation Unisolated
Measuring channels 1 channel
Sensor connection 3-wire connection
Power supply 15 to 30 VDC
Typical accuracy 0.15% of span



RTD Analog Rail Mounted Temperature Transmitter INOR APAQ-3LPT Adjustable 3 Wire 0

RTD Analog Rail Mounted Temperature Transmitter INOR APAQ-3LPT Adjustable 3 Wire 1

RTD Analog Rail Mounted Temperature Transmitter INOR APAQ-3LPT Adjustable 3 Wire 2

RTD Analog Rail Mounted Temperature Transmitter INOR APAQ-3LPT Adjustable 3 Wire 3

etting is done with solder jumpers, which are placed inside the transmitter.

Configuration of the transmitter should always be carried out before calibration. It is suggested that the calibration is checked at least once a year. When a new calibration is necessary, use calibration instruments with an accuracy of at least 5 times better than wanted accuracy for the calibration. The transmitter is polarity protected and will not be damaged by connecting the power supply with the wrong polarity, but the output will be 0 V.
