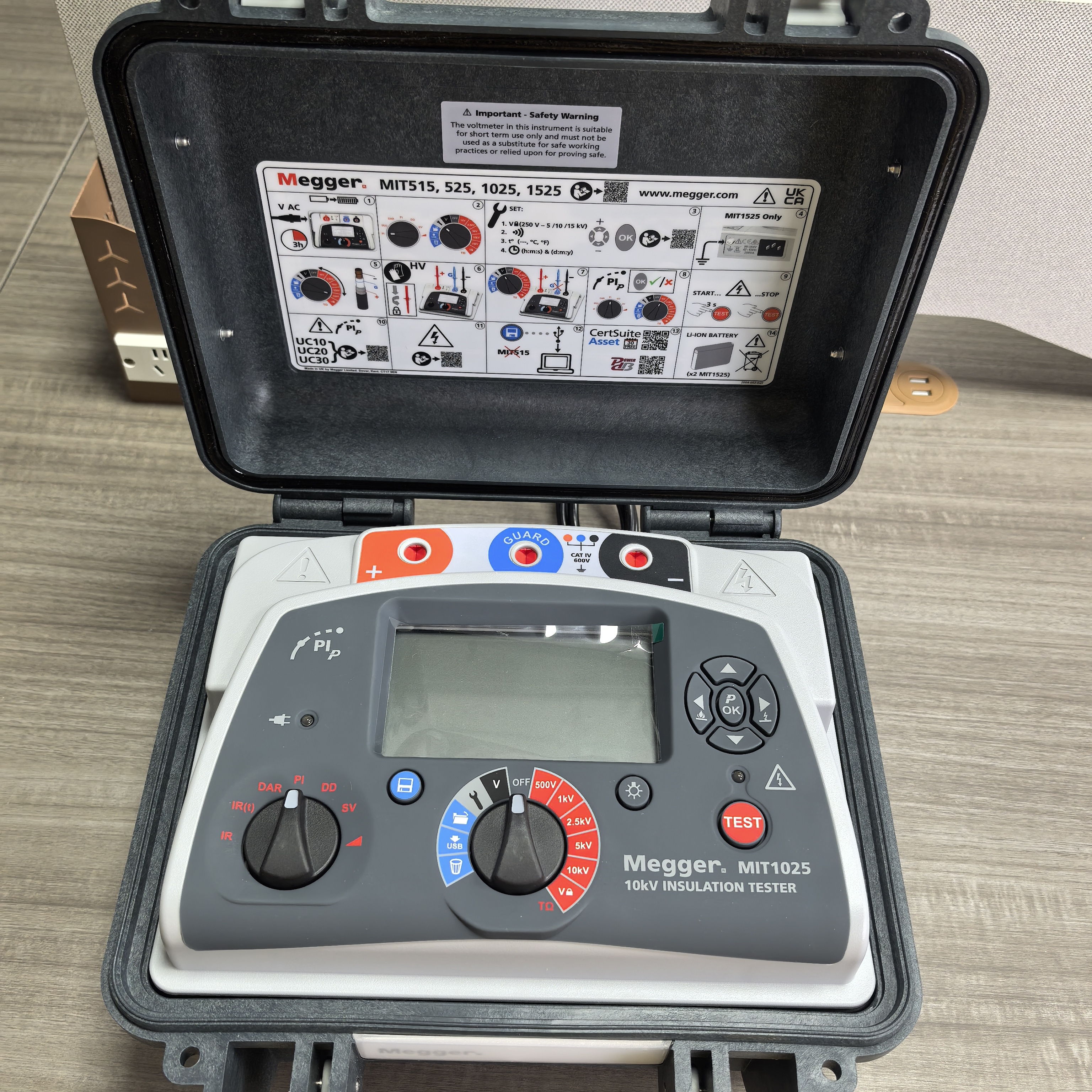

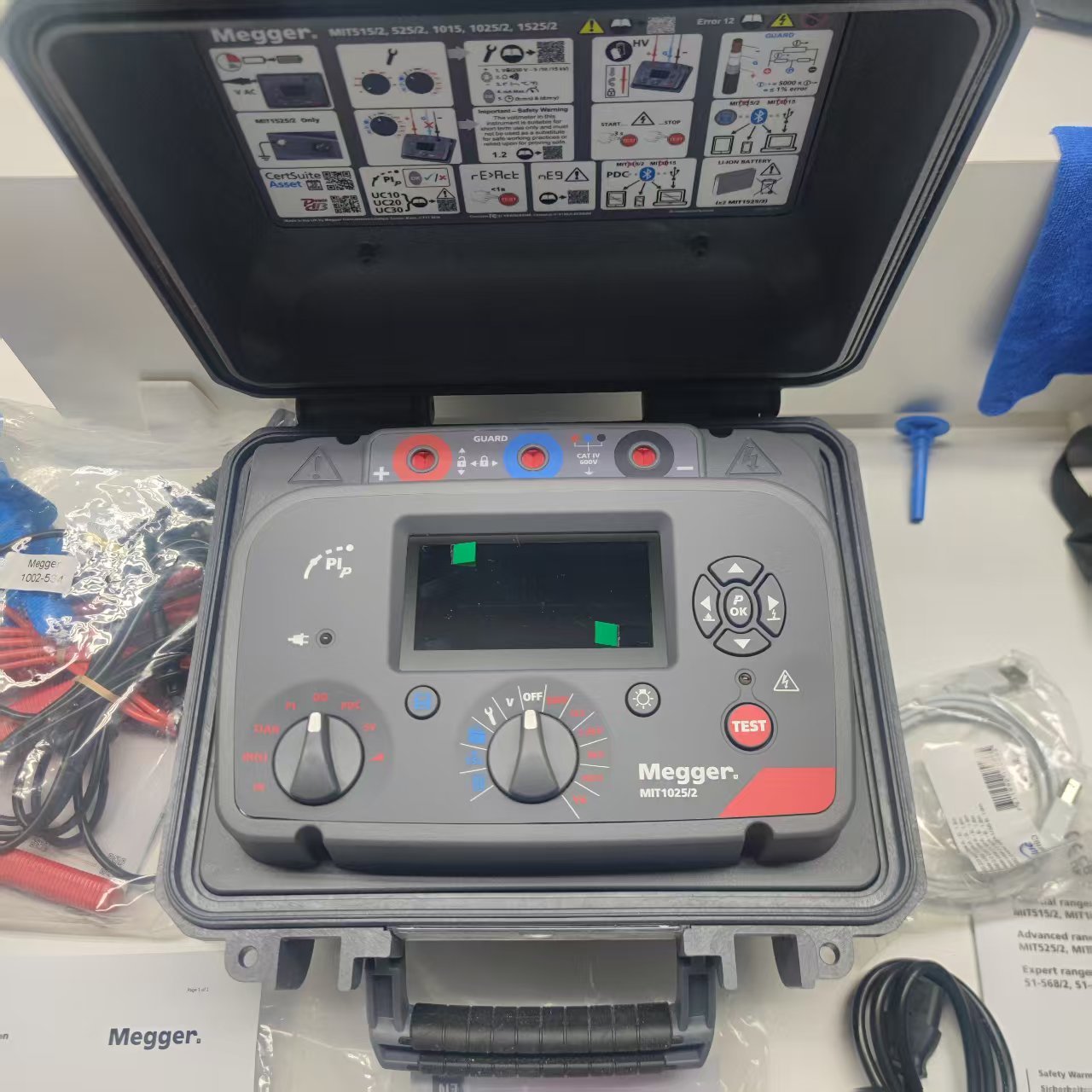

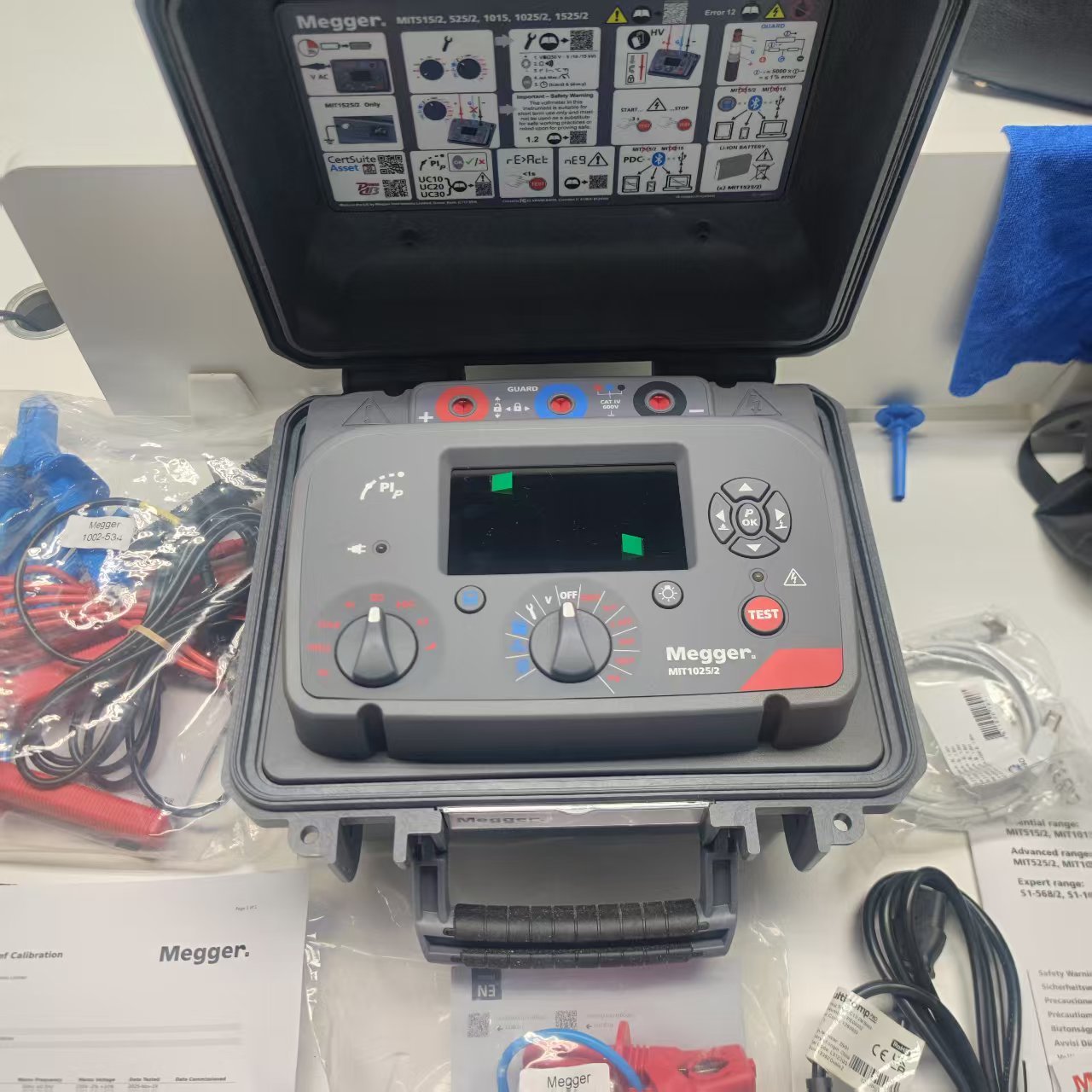

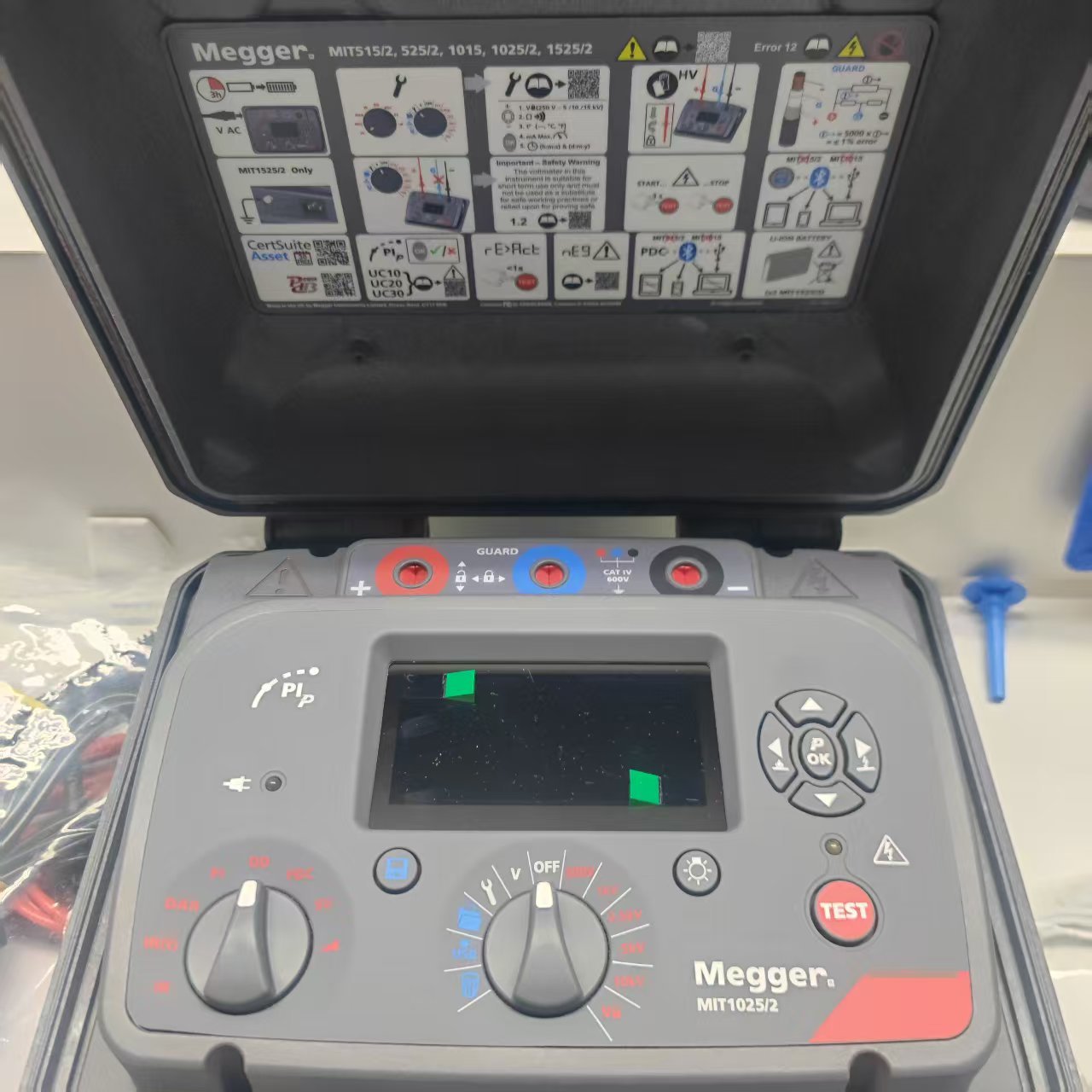

Megger MIT1025/2-US/UK/CN - 10kV Insulation Resistance Tester

The Megger Advanced range of 5 kV, 10 kV, and 15 kV insulation resistance testers is ideal for engineers and technicians performing insulation testing on transformers, motors, switchgear, and cables in environments up to 230 kV. These instruments support IR, DAR, PI, DD, SV, ramp, and PDC (with software), providing the diagnostic depth needed for condition assessment and maintenance planning.

Each model includes PI Predictor™ to speed up testing, internal memory for storing results, and optional Bluetooth® for exporting data to PowerDB or CertSuite — no manual recording required.

The new innovative patent applied RE>Act test mode allows the user to make accurate measurements by monitoring reabsorption current. This groundbreaking test mode can ensure reabsorption current does not result in incorrectly passing or failing insulation, helping to maintain safety. In addition, the test mode can be used to ensure dangerous return voltages to not occur.

Choose from three models — MIT525/2, MIT1025/2, and MIT1525/2 — based on your required test voltage. With 6 mA noise immunity and high-performance guard terminals, the Advanced range delivers reliable results where remote control and substation-level noise handling are not required.

• Test voltages: 500V, 1000V, 2500V, 5000V, 10000V
• RE>Act mode enhanced accuracy and safety
• PI predictor function (PIp)
• PDC test capability
• Measures up to 20 TO
• CAT IV 600 V safety rated up to 3000 m altitude
• Up to 6 mA noise rejection

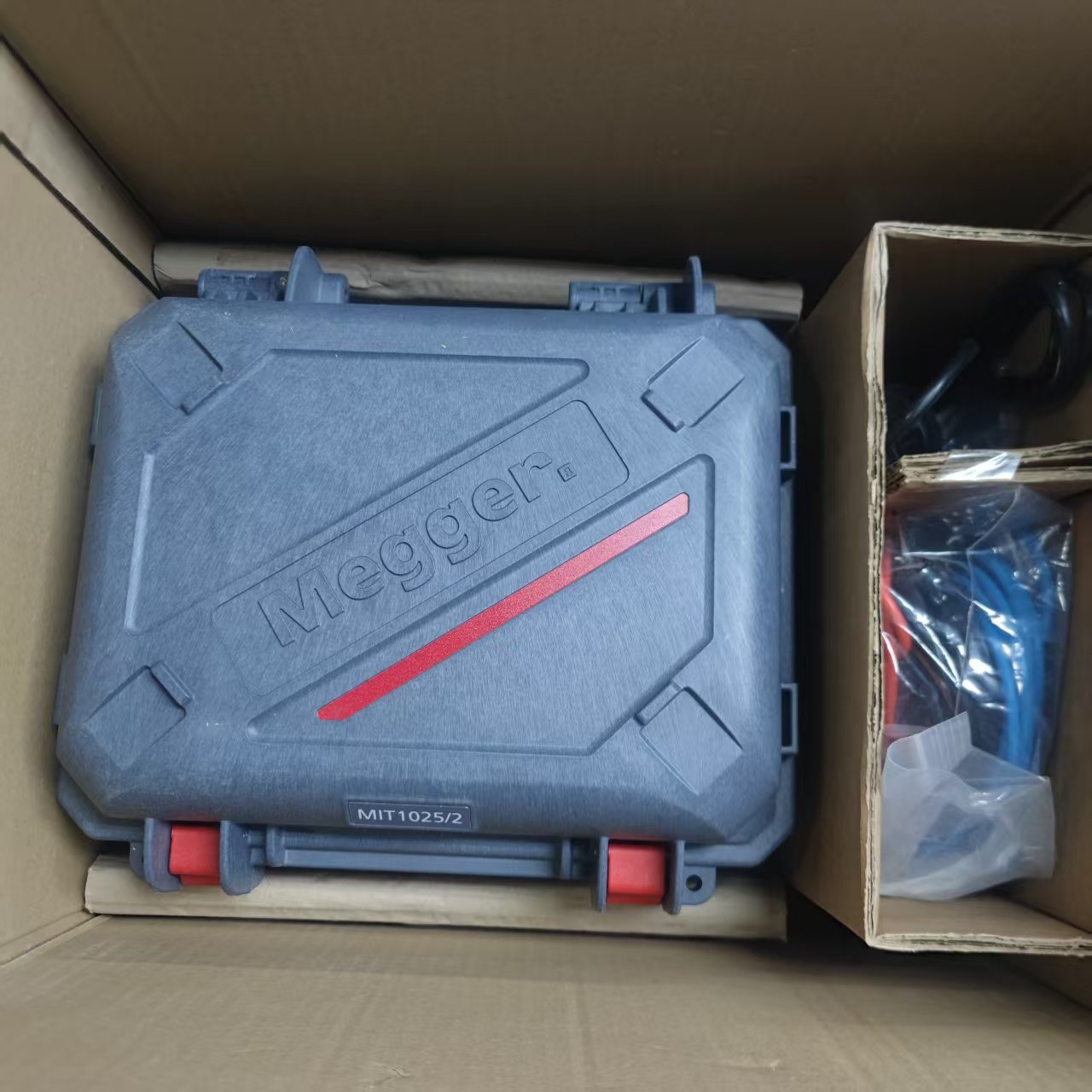

• Unique dual-case design - additional user protection
• Operates from rapid charge Li-ion battery or AC mains supply
• Advanced memory with time / date stamp
