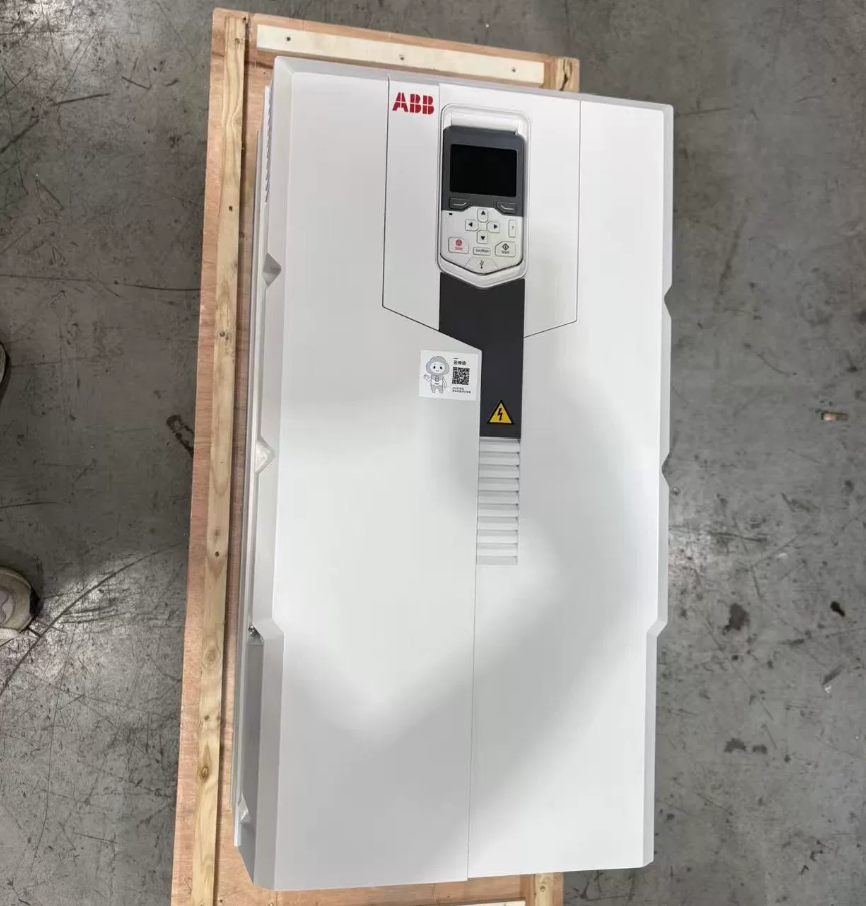

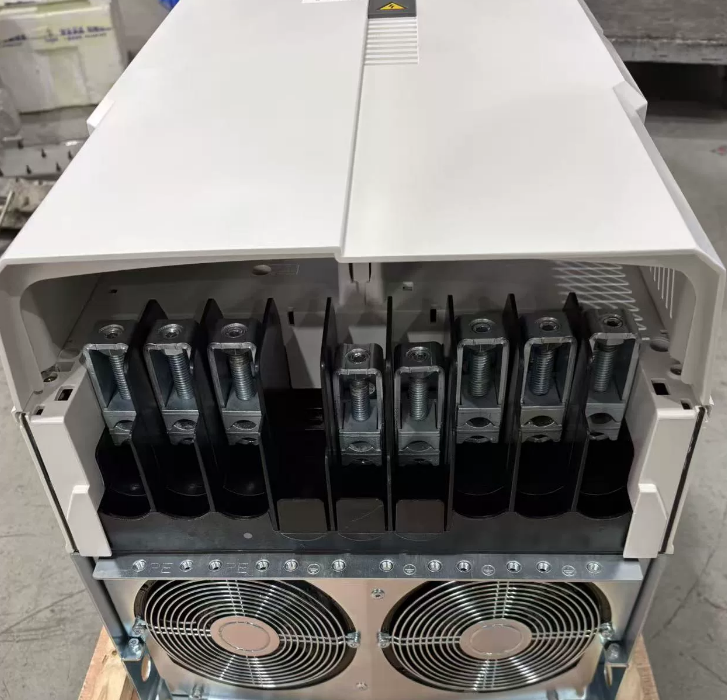

New Original Frequency Converter ABB ACS580-01-363A-4 In Stock

Place of Origin	Germany
Brand Name	ABB
Model Number	ACS580-01-363A-4
Minimum Order Quantity	2
Price	USD＄6020

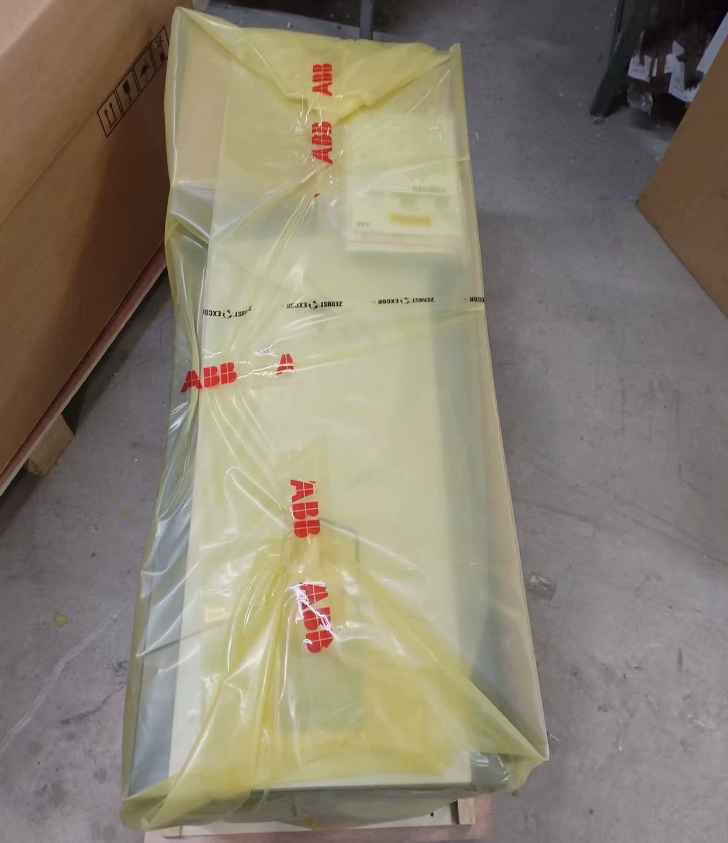

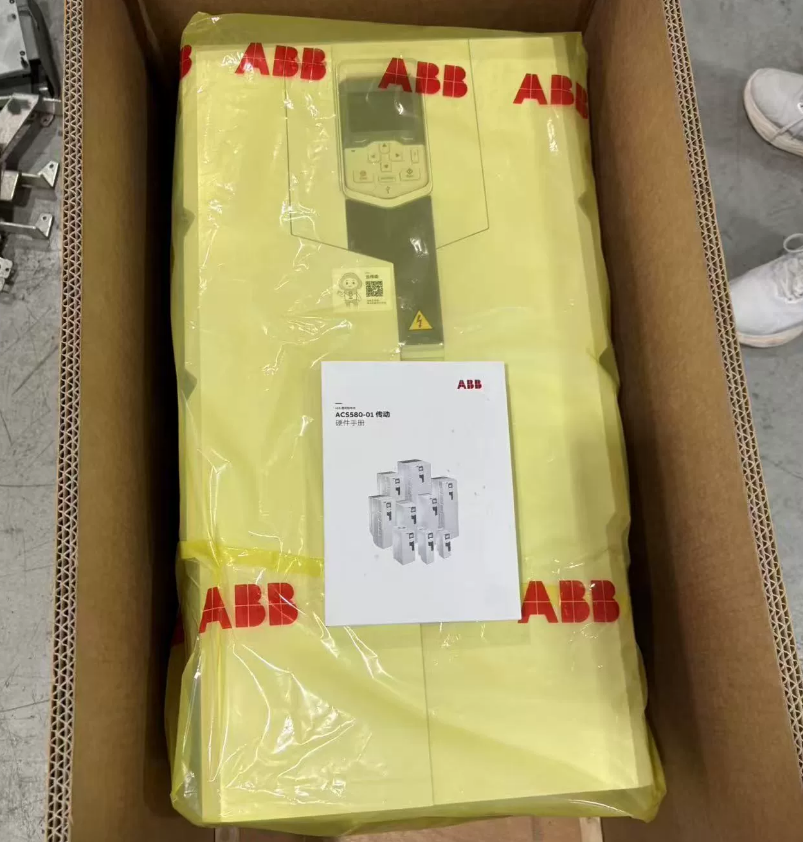

Packaging Details	Original packaging
Delivery Time	in stock
Payment Terms	L/C, D/A, D/P, T/T, Western Union
Supply Ability	10PC

Product Details

Highlight

ABB ACS580-01 frequency converter

original ABB ACS580-01-363A-4

frequency converter with warranty

Leave a Message

Product Description

General Information

Global Commercial Alias:

ACS580-01-363A-4

Product ID:

3AUA0000080509

ABB Type Designation:

ACS580-01-363A-4

EAN:

6438177305651

Catalog Description:

LV AC general purpose wall-mounted drive, IEC: Pn 200 kW, 363 A, 400 V (ACS580-01-363A-4)

Long Description:

The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.

Ordering

Customs Tariff Number:

85044087

HS Code:

850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters

Invoice Description:

ACS580-01-363A-4 PN: 200 kW, IN: 363 A

Made To Order:

No

Minimum Order Quantity:

1 piece

Order Multiple:

1 piece

Quote Only:

No

Selling Unit of Measure:

piece

Dimensions

Product Net Weight:

97 kg

213.849 lb

Product Net Depth / Length:

418 mm

16.457 in

Product Net Height:

955 mm

37.598 in

Product Net Width:

380 mm

14.961 in

Package Level 1 Depth / Length:

1145 mm

45.079 in

Package Level 1 Height:

654 mm

25.75 in

Package Level 1 Width:

485 mm

19.094 in

Package Level 1 Units:

case 1 piece

Technical

Number of Phases:

3-phase

Degree of Protection:

IP21

Enclosure Type NEMA:

Type1

Altitude:

1000 m

Operating Humidity (RHamb):

5 ... 95 %

Sound dB (A):

68 dB(A)

Multiple Battery Information:

Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g

Frequency (f):

47.5 ... 63 Hz

Frame Size:

R9

Input Voltage (Uin):

380 ... 480 V

Mounting Type:

Wall-mounted

Communication Protocol:

CAN

DeviceNet

EtherNet/IP

MODBUS

Other Bus Systems

PROFIBUS

PROFINET IO

TCP/IP

Number of Hardware Interfaces:

Industrial Ethernet 0

Other 2

Parallel 2

PROFINET 0

RS-232 0

RS-422 0

RS-485 1

Serial TTY 0

USB 1

Includes:

Control unit

PC connection

Analog Inputs:

2

Analog Outputs:

2

Number of Digital In/Outputs:

6 / 3

Output Current, Normal Use (In):

363 A

Output Current, Light-Overload Use (ILD):

345 A

Output Current, Heavy-Duty Use (IHD):

293 A

Output Power, Normal Use (Pn):

200 kW

Output Power, Light-Overload Use (PLD):

200 kW

Output Power, Heavy-Duty Use (PHD):

160 kW

Power Consumption (@Pcons):

4839 W

Apparent Power Output:

251 kV·A

Efficiency Level:

IE2

Standby Loss:

80 W

Temperature Rating:

Maximum 40 °C

Minimum -15 °C

Complete Drive Module Efficiency (IEC61800-9-2):

Operating Point Frequency / Current	Absolute Loss	Efficiency	Relative Loss
0/25 %	1231 W	91.6 %	0.5 %
0/50 %	1744 W	93.8 %	0.7 %
0/100 %	3267 W	94.1 %	1.3 %
50/25 %	1334 W	95.4 %	0.5 %
50/50 %	1943 W	96.6 %	0.8 %
50/100 %	3772 W	96.7 %	1.5 %
90/50 %	2275 W	97.8 %	0.9 %
90/100 %	4839 W	97.6 %	1.9 %

Certificates and Declarations

Declaration of Conformity - CE:

ACS580, ACH580 and ACQ580 EU DoC

REACH Date:

20260316

REACH Declaration:

REACH SVHC-253 declaration

REACH Information:

True - contains substances > 0.1 mass percentage

RoHS Date:

20240508

RoHS Declaration:

ACS580, ACH580 and ACQ580 EU DoC

RoHS Information:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental

Recyclability Rate of the Product acc. to EN45555:

77.3 %

Product Subcomponent Material Weights:

Aluminum 11.90 kg

Copper 15.65 kg

Steel 40.39 kg

SCIP:

67c5daab-da3d-4123-804b-53a83b6d9528 Finland

WEEE Category:

4. Large Equipment (Any External Dimension More Than 50 cm)

External Classifications and Standards

ETIM 9:

EC001857 - Frequency converter =< 1 kV

ETIM 10:

EC001857 - Frequency converter =< 1 kV

UNSPSC:

39122001
