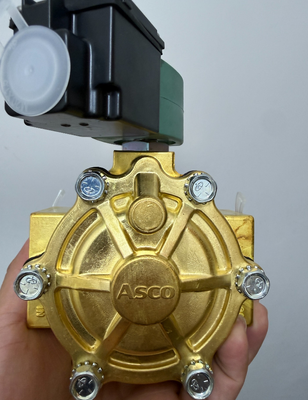

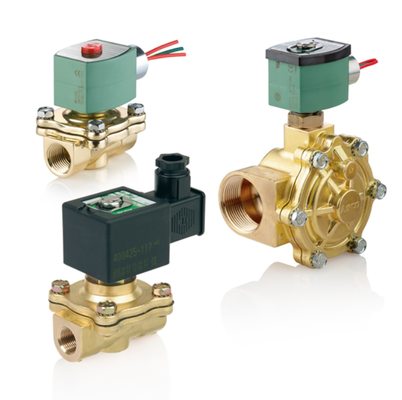

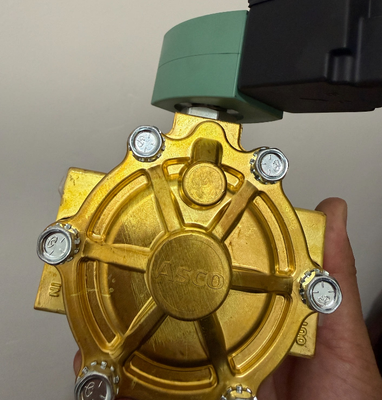

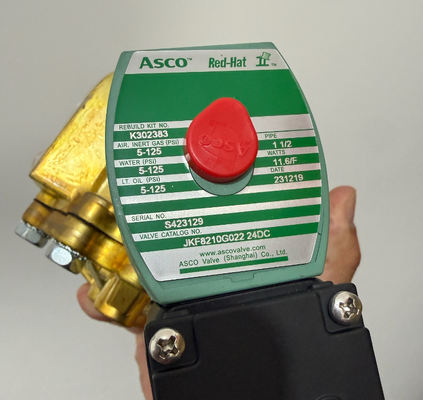

New and original Solenoid valve from ASCO 8210G022, 24VDC, with short-term delivery available.

  • New and original Solenoid valve from ASCO 8210G022, 24VDC, with short-term delivery available.
  • New and original Solenoid valve from ASCO 8210G022, 24VDC, with short-term delivery available.
  • New and original Solenoid valve from ASCO 8210G022, 24VDC, with short-term delivery available.
  • New and original Solenoid valve from ASCO 8210G022, 24VDC, with short-term delivery available.
Place of Origin China
Brand Name ASCO
Model Number 8210G022
Minimum Order Quantity 2
Price USD＄433
Packaging Details original packing
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10PC
Product Details
Highlight

ASCO 8210G022 solenoid valve 24VDC

,

original solenoid valve with short-term delivery

,

precision pressure transmitter solenoid valve
Leave a Message
Product Description

Specifications

Body Material Brass
Flow (Cv) / Flow (Kv) 22.50 / 19.46
Function 2 way - 2/2 Normally Closed
Pipe/Port Type & Size NPT 1 1/2
Valve Actuation Solenoid
Media Air, Inert Gas, Water, Light Oil
Min to Max Operating Pressure (Air) 5 - 125 PSI
Min to Max Operating Pressure (Water) 5 - 125 PSI
Min to Max Operating Pressure (Light Oil) 5 - 125 PSI
Product Weight 6.79 lbs
Order Code 20137
Kit Number 302383
Coil Class FT
Coil Number 238710-006-D
Min to Max Ambient Temperature 32 - 104 °F
Min to Max Fluid Temperature 32 - 150 °F
Orifice Size 1-1/4 in
Voltage 24 Volts DC
Watt Rating 11.6 W
Item Status Active
Lead Length 18 inch
Carton Note 1-1/2X1-1/4 2NC BRS 11.6/F DC
Seating Elastomer NBR
Mounting Direction Any
