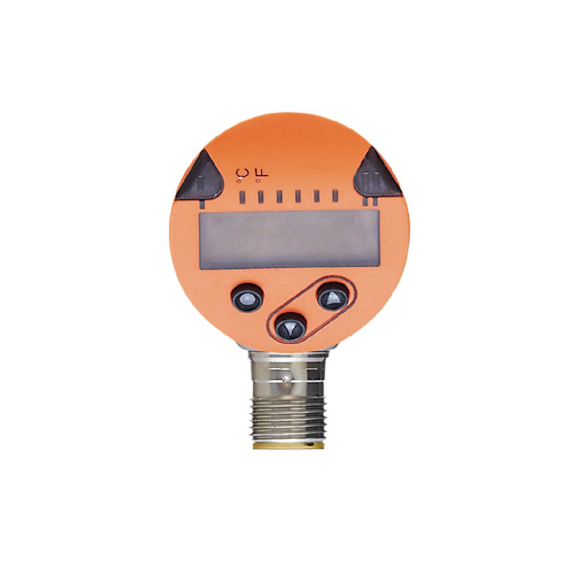

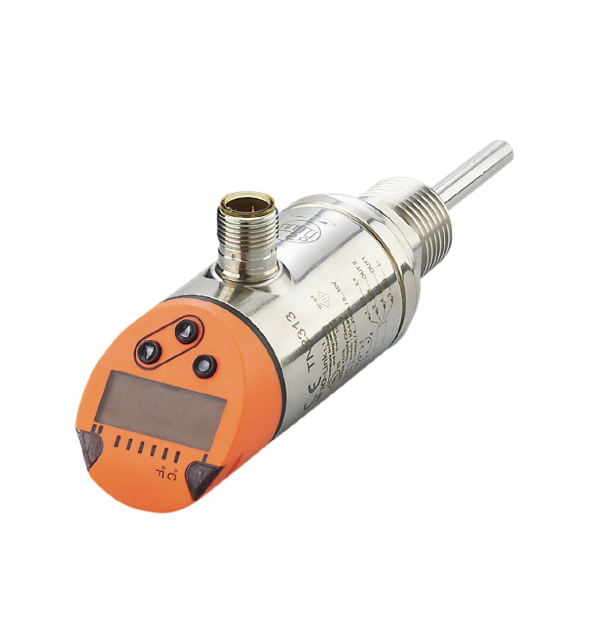

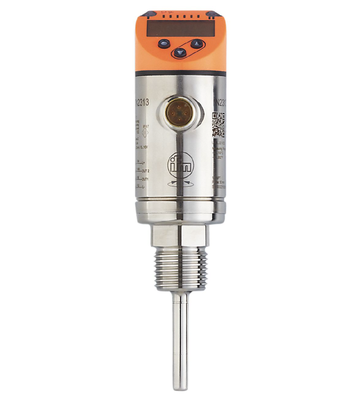

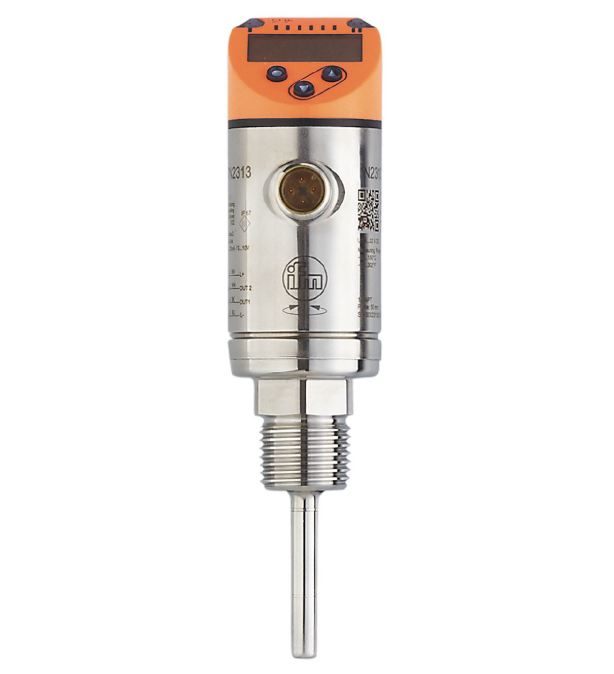

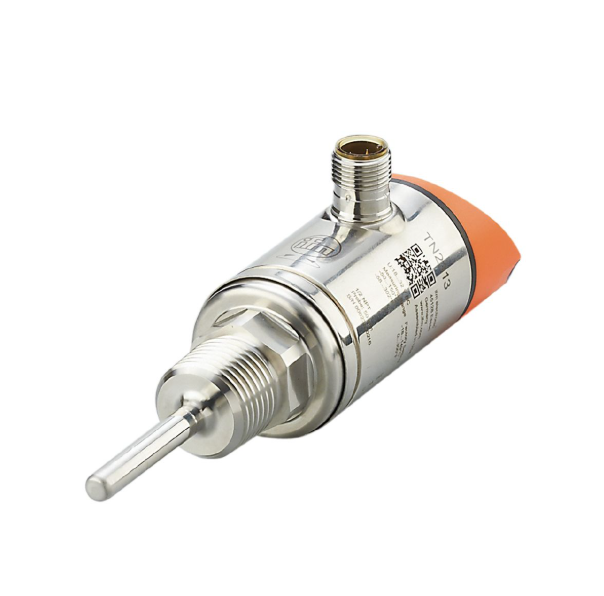

New Original German Temperature Sensor with Display IFM TN2313 In Stock
| Place of Origin | Germany |
|---|---|
| Brand Name | IFM |
| Model Number | TN2313 |
| Minimum Order Quantity | 2 |
| Price | USD＄425 |
| Packaging Details | original packing |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20PC |
Product Details
Product Description
Electrical data
| Operating voltage[V] | 18...32 DC; (cULus - Class 2 source required) |
| Current consumption[mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 1 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; analog signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 250 |
| Number of analog outputs | 1 |
| Analog current output[mA] | 4...20 |
| Max. load[Ω] | 500 |
| Analog voltage output[V] | 0...10 |
| Min. load resistance[Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
