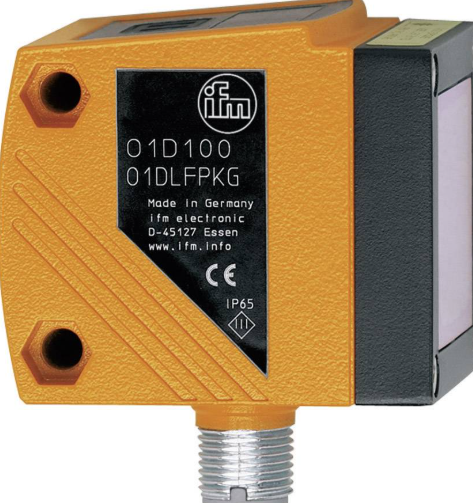

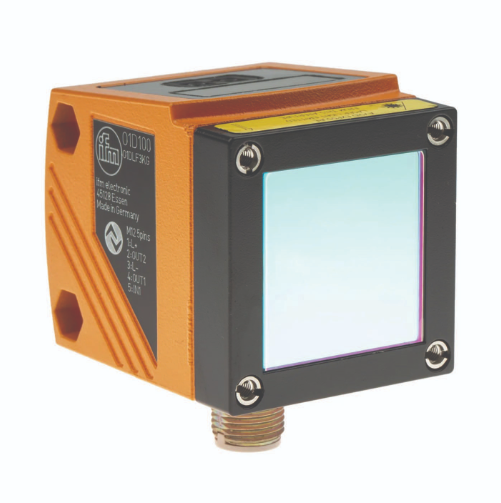

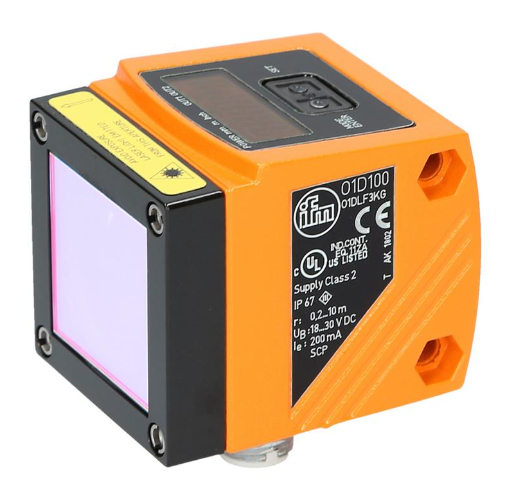

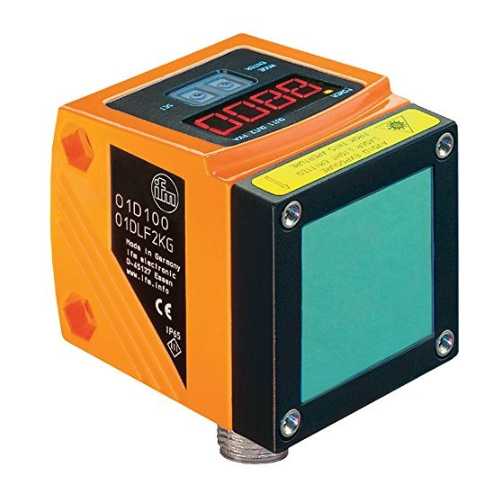

IFM Laser distance sensor O1D100
| Place of Origin | Germany |
|---|---|
| Brand Name | IFM |
| Certification | CE |
| Model Number | O1D100 |
| Minimum Order Quantity | 1 |
| Price | US$170/PC |
| Packaging Details | CARTON |
| Delivery Time | 1WEEK |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 500PCS |
Product Details
Product Description
| Laser protection class | 2 |
| Housing | rectangular |
Application
| Application | Industrial applications |
Electrical data
| Operating voltage[V] | 18...30 DC; (cULus - Class 2 source required) |
| Current consumption[mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime[h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
Outputs
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. current load per output[mA] | 200 |
| Number of analog outputs | 1 |
| Analog current output[mA] | 4...20; (IEC 61131-2) |
| Max. load[Ω] | 250 |
| Analog voltage output[V] | 0...10; (IEC 61131-2) |
