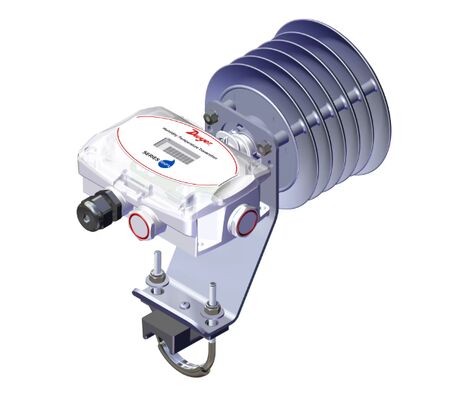

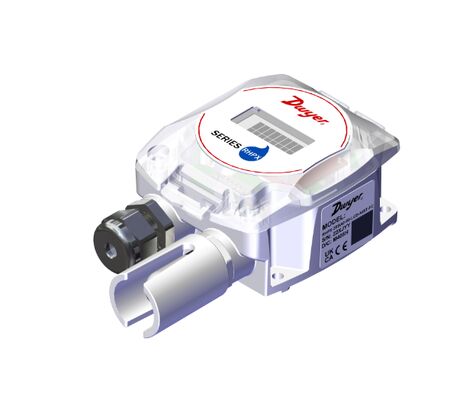

Dwyer Series-RHPX Humidity & Temp Transmitter RHPX-2SSAE RHPX-2SDA0-00 RHPX-2LHA0-00
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | cc,ce |
| Model Number | RHPX-2SSAE RHPX-2SDA0-00 RHPX-2LHA0-00 |
| Minimum Order Quantity | 1 |
| Price | USD$195/PC |
| Packaging Details | Original package |
| Delivery Time | 4-6 weeks |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 10 |
Product Details
| Electrical Connection | Removabe Screw Terminal Block | Relative Humidity | 0 To 100% RH |
|---|---|---|---|
| Enclosure Ratings | IP66 | Storage Temperature, Max | 158 °F |
| Storage Temperature, Min | -22 °F | Operating Temperature, Max | 140 °F |
| Operating Temperature, Min | -4 °F | Process Connection Size | 1/2" NPS Thread, Cable Gland Included |
| Thermistor Input Rang | -40 To 60 °C |
Product Description
Dwyer Series-RHPX Humidity & Temp Transmitter
The Series RHPX Humidity and Temperature Transmitter accurately monitors the humidity and temperature for building control functions to maximize occupant comfort and minimize operating costs. Featuring capacitance polymer humidity sensors, models are available in 2% and 3% accuracies. An optional two-line alphanumeric LCD display is available. The high accuracy, long term stability and reliable operation in multiple enclosure styles make the Series RHPX an excellent choice for monitoring humidity and temperature in building energy management systems, commercial HVAC systems, clean rooms, museums and data centers. The Series RHPX can be optionally configured to supply absolute or relative humidity or dew point in addition to enthalpy.
Product Applications
- Air economizers
- Outdoor humidity and temperature reference
- Pool room humidity monitoring
- Commercial HVAC systems
- Clean rooms
- Museums
- Data centers
