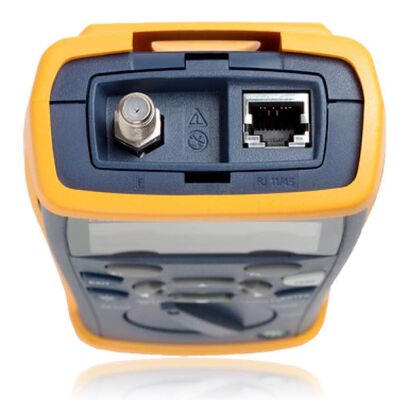

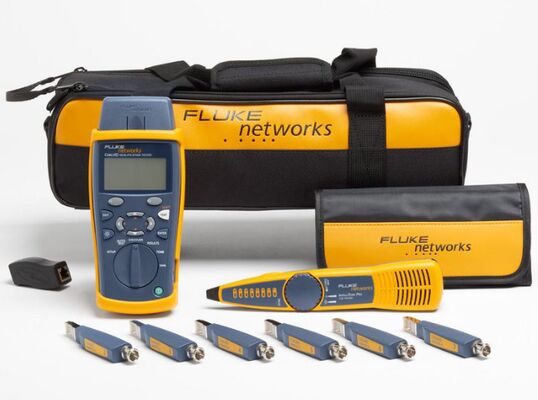

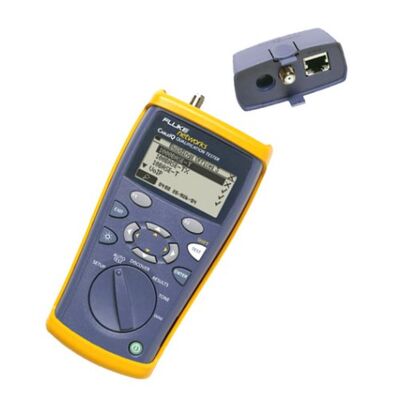

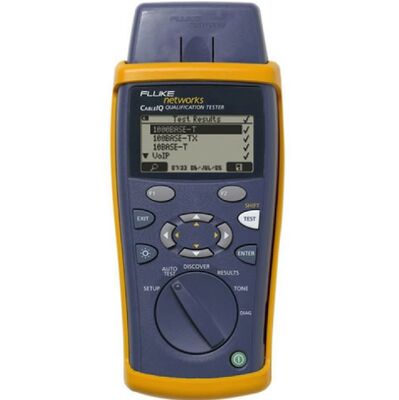

New and original Fluke Networks CIQ-SVC Qualification Tester, in stock now
| Place of Origin | USA |
|---|---|
| Brand Name | FLUKE |
| Model Number | CIQ-SVC |
| Minimum Order Quantity | 1 |
| Price | USD＄2820 |
| Packaging Details | original packing |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10PC |
Product Details
Product Description
Specifications: Fluke Networks CableIQ™ Qualification Tester
| Specifications | |
| Cable types supported | UTP, STP, FTP, SSTP, RG6, RG59, audio and security |
| Qualification autotests | 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax |
| Supported tests | Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection. |
| Wiremap | Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs. |
| Find fault | Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application |
| Results storage | Up to 250 qualification test results |
| Power | Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries |
| Battery life | 20 hours of typical use, without backlight |
| Other battery types supported | 4AA photo lithium, NIHM, NICAD |
| Dimensions and weight | 7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg) |
