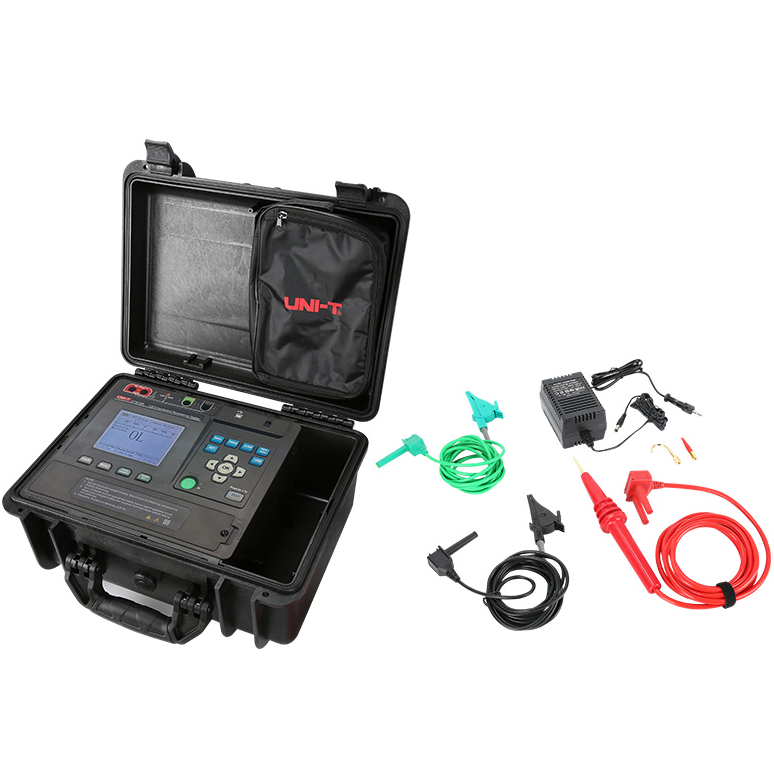

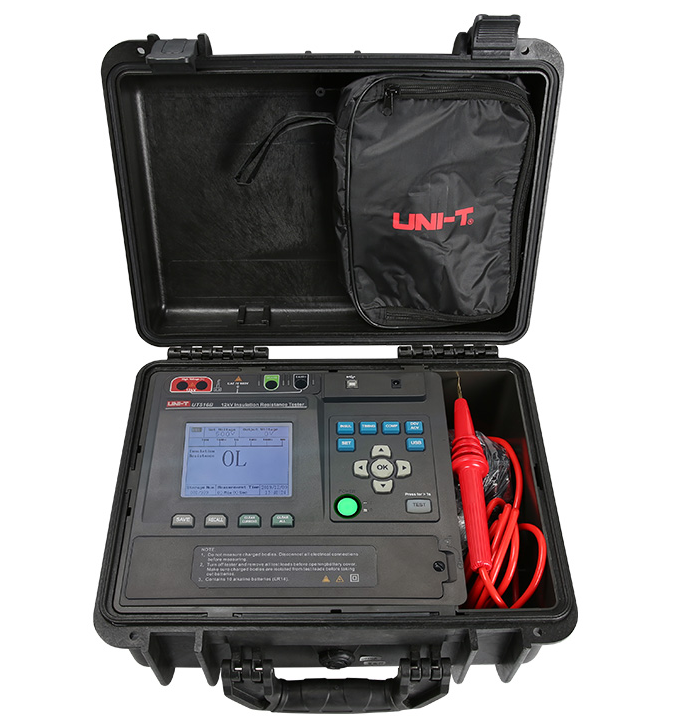

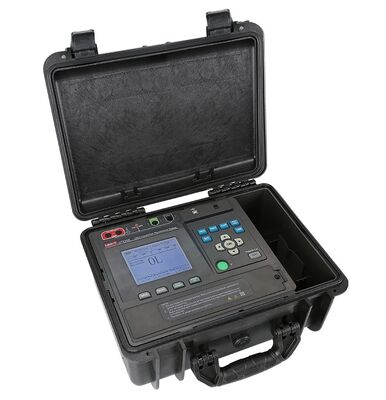

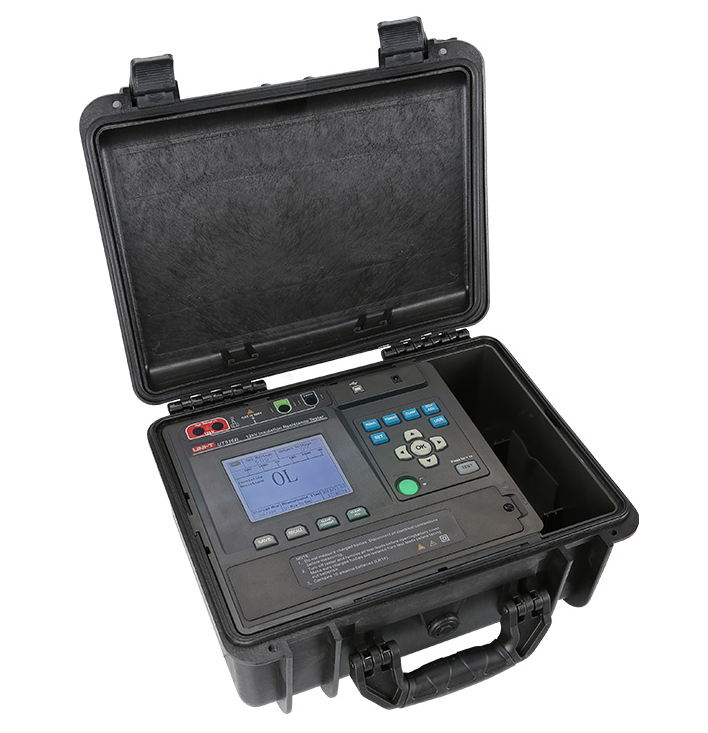

Bestseller - Original - New UNI-T UT516B Insulation Resistance Tester - In Stock
| Place of Origin | China |
|---|---|
| Brand Name | UNI-T |
| Model Number | UT516B |
| Minimum Order Quantity | 2 |
| Price | USD＄950 |
| Packaging Details | original packing |
| Delivery Time | in stock |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 10PC |
Product Details
Product Description
| Specifications | Range | UT516B | |
| Insulation Resistance Measurement | 500V | 0.50MΩ~4.99G | ±(5%+5) |
| 5.00G-49.9GΩ | ±(10%+10) | ||
| 50.0GΩ-500GΩ | for reference only | ||
| 1000V | 1.00MΩ-9.99GΩ | ±(5%+5) | |
| 10.0G-99.9GΩ | ±(15%+10) | ||
| 100GΩ-1000GΩ | for reference only | ||
| 2500V | 2.50MΩ-24.9GΩ | ±(5%+5) | |
| 25.0G-249GΩ | ±(15%+10) | ||
| 250GΩ-2.5TΩ | for reference only | ||
| 5000V | 5.00MΩ-49.9GΩ | ±(5%+5) | |
| 50G-499GΩ | ±(15%+20) | ||
| 500GΩ-5.0TΩ | for reference only | ||
| 10000V | 10.0MΩ-99.9GΩ | ±(10%+10) | |
| 100G-999GΩ | ±(20%+20) | ||
| 1000GΩ-10TΩ | for reference only | ||
| 12000V | 12.0MΩ-99.9GΩ | ±(10%+10) | |
| 100G-999GΩ | ±(20%+20) | ||
| 1000GΩ-10TΩ | for reference only | ||
| Output voltage | 500V | 0~+10% | |
| 1000V | 0~+10% | ||
| 2500V | 0~+10% | ||
| 5000V | 0~+10% | ||
| 10000V | -5~+10% | ||
| 12000V | -5~+10% | ||
| Load current | 500V (R=500KΩ) 1mA | 0%—+20% | |
| 1000V (R=1MΩ) 1mA | 0%—+20% | ||
| 2500V (R=2.5MΩ) 1mA | 0%—+20% | ||
| 5000V (R=5MΩ) 1mA | 0%—+20% | ||
| 10000V (R=10MΩ) 0.15~1.2mA | 0%—+20% | ||
| 12000V (R=12MΩ) 0.15~1.2mA | 0%—+20% | ||
| DC voltage measurement | 30V~1000V | ±(3%+5) | |
| AC voltage measurement | 30V~750V (50~60Hz) | ±(3%+5) | |
| Features | |||
| PC software for data analysis | √ | ||
| Backlight Function | √ | ||
| Date storage | 999 sets of date | √ | |
| Dielectric Absorption Ratio (DAR) | 0.00~999 | √ | |
| Polarization Index (PI) | 0.00~999 | √ | |
