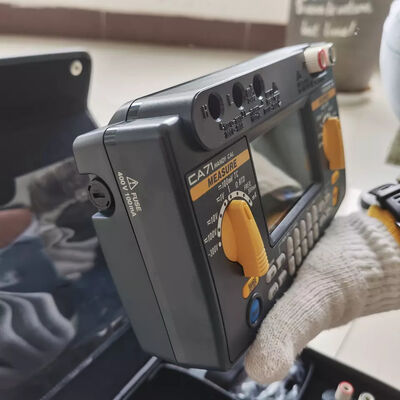

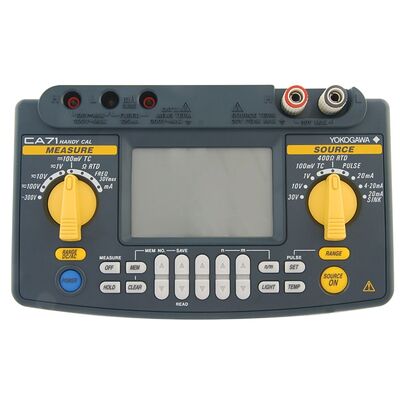

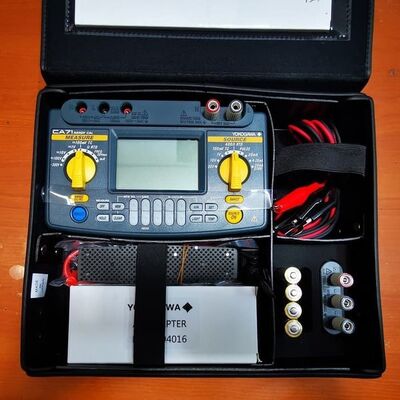

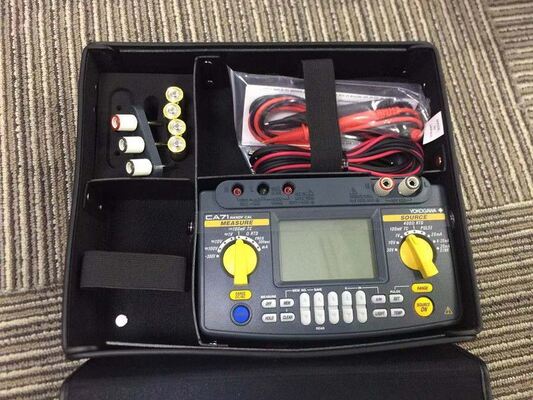

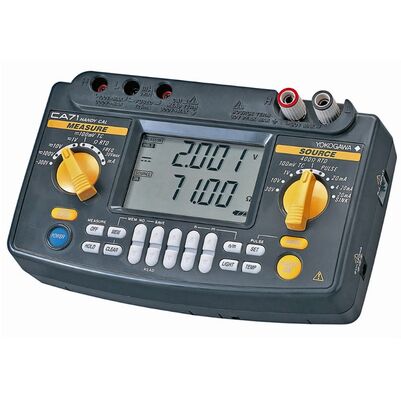

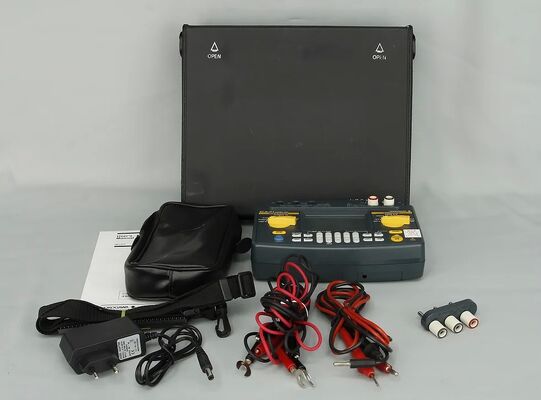

Original and genuine YOKOGAWA Multifunction Calibrator CA71 multimeter. Low price, in stock.

  • Original and genuine YOKOGAWA Multifunction Calibrator CA71 multimeter. Low price, in stock.
  • Original and genuine YOKOGAWA Multifunction Calibrator CA71 multimeter. Low price, in stock.
  • Original and genuine YOKOGAWA Multifunction Calibrator CA71 multimeter. Low price, in stock.
  • Original and genuine YOKOGAWA Multifunction Calibrator CA71 multimeter. Low price, in stock.
  • Original and genuine YOKOGAWA Multifunction Calibrator CA71 multimeter. Low price, in stock.
  • Original and genuine YOKOGAWA Multifunction Calibrator CA71 multimeter. Low price, in stock.
Place of Origin Japan
Brand Name YOKOGAWA
Model Number CA71
Minimum Order Quantity 1
Price USD＄1669
Packaging Details original packing
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10PC
Product Details
Highlight

YOKOGAWA CA71 multifunction calibrator

,

YOKOGAWA CA71 voltage current meter

,

genuine YOKOGAWA CA71 with warranty
Leave a Message
Product Description

Specification - Model CA71

Auto-Step Output Function n value sent automatically when n/m function selection is selected (two options: approximately 2.5 seconds/step or approximately 5 seconds/step)
Sweep Functions Sweep time (two options: approximately 16 seconds or approximately 32 seconds)
Memory Function 50 value sets (generated and measured values are stored as value sets with the same address (up to 50 value sets can be stored))
Measuring Unit Maximum Input Voltage terminal: 300 V AC Current terminal: 120 mA DC
Current Terminal Input Protection Fuses: 125 mA/250 V
Measuring Unit Ground Voltage Maximum 300 V AC
Measurement Display Updating Rate Approximately once per second
Serial Interface Enabled when communication cable (RS232) is connected; sold separately as optional accessory
Display Segmented LCD (Approx. 76 mm × 48 mm)
Backlight LED backlight; auto-off after one minute (from when LIGHT key is turned on)
Power Supply Four AA alkaline batteries, or special AC adapter (sold separately)
Battery Life Measurement off, output 5 V DC/10 kO or greater: Approximately 40 hours Simultaneous signal generation/measurement, output 5 V DC/10 kO or greater: Approximately 20 hoursSimultaneous signal generation/measurement, output 20 mA/5 V: Approximately 12 hours (using alkaline batteries, with backlight off)
Auto-Power-Off Function Approx. 10 minutes (auto-power-off can be disabled through a DIP switch setting)
Applicable Standard EN55011: 1998, Class B, Group 1
EN61326-1: 1997 + A1: 1998
IEC61010-1, IEC61010-2-31
Insulation Resistance Across input terminal and output terminal, 500 V DC, 50 MO or greater
Withstand Voltage Across input terminal and output terminal, 3.7 kVAC, for one minute
Operating Temperature And Humidity Ranges 0 - 50°C, 20 - 80% RH (no condensation)
Storage Temperature And Humidity Ranges -20 - 50°C, 90% RH or less (no condensation)
External Dimensions Approx. 190 × 120 × 55 mm
Weight Approx. 730 g (including batteries)
