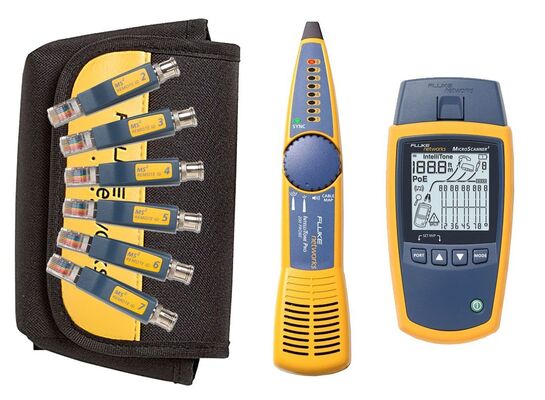

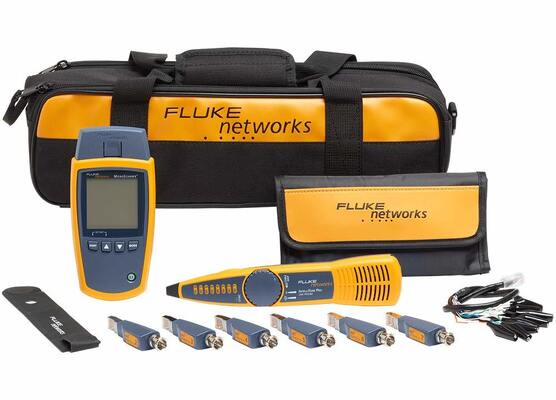

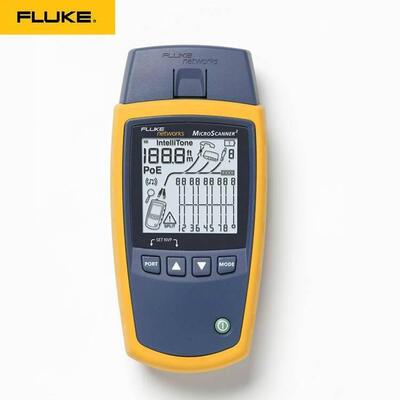

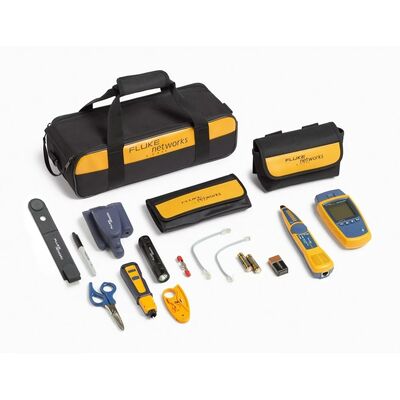

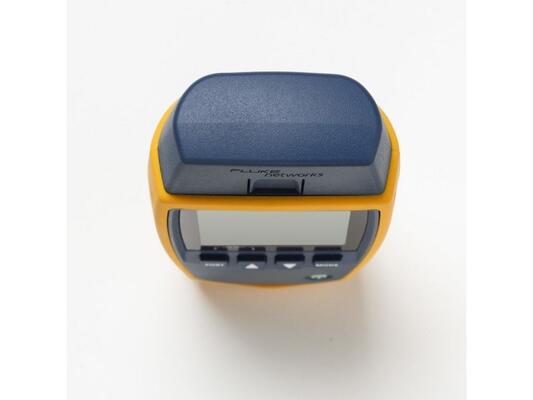

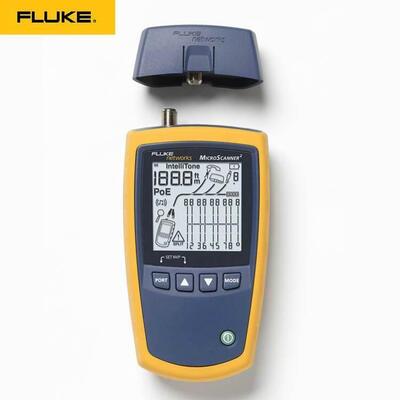

New Original Fluke Networks MS2-KIT MicroScanner2 Copper Cable Verifier Kit is in stock

  • New Original Fluke Networks MS2-KIT MicroScanner2 Copper Cable Verifier Kit is in stock
  • New Original Fluke Networks MS2-KIT MicroScanner2 Copper Cable Verifier Kit is in stock
  • New Original Fluke Networks MS2-KIT MicroScanner2 Copper Cable Verifier Kit is in stock
  • New Original Fluke Networks MS2-KIT MicroScanner2 Copper Cable Verifier Kit is in stock
  • New Original Fluke Networks MS2-KIT MicroScanner2 Copper Cable Verifier Kit is in stock
  • New Original Fluke Networks MS2-KIT MicroScanner2 Copper Cable Verifier Kit is in stock
Place of Origin USA
Brand Name FLUKE
Model Number MS2-KIT
Minimum Order Quantity 2
Price USD＄840
Delivery Time 10days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20PC
Product Details
Leave a Message
Product Description

Specifications: Fluke Networks MicroScanner™ Cable Verifier Kit

Specifications apply at 23 °C (73 °F), unless otherwise noted.

Environmental specifications
Operating temperature 32 °F to 113 °F (0 °C to 45 °C)
Storage temperature -4 °F to +140 °F (-20 °C to +60 °C)
Operating relative humidity (% RH without condensation) 90 % (50 °F to 95 °F 10 °C to 35 °C)
75 % (95 °F to 113 °F 35 °C to 45 °C)
Shock and vibration Random, 2 g, 5 Hz-500 Hz (Class 2)
1 m drop test with and without wiremap adapter attached
Safety IEC 61010-1 3rd Edition
Altitude 4,000 m; Storage: 12,000 m
EMC IEC 61326-1
General specifications
Test connectors Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable.
Power Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life: 20 hours of typical use
Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
Dimensions and weight (with batteries installed and wiremap adapter attached) 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)
MicroScanner2: 10.6 oz (300 g)
Display Monochrome LCD with backlight
Test modes
Cable test Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen.
Tone Generates Intellitone™ and normal analog toning signals
PoE MicroScanner2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices
Performance specifications
Cable types tested Twisted pair: UTP, FTP, SSTP
Coaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω
Length test Range: 460 m (1500 ft)
Resolution: 0.3 m (1 ft)
Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error.
Calibration: User-settable NVP for twisted pair and coax (MicroScanner2). Can determine actual NVP with known length of cable.
Wiremap test Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.
Ethernet port detection MicroScanner2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps.
Tone generator Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.
