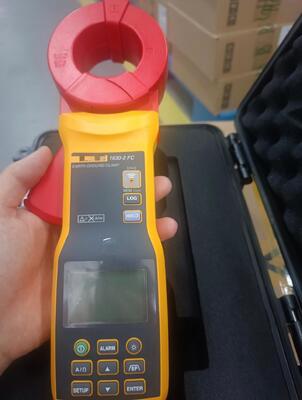

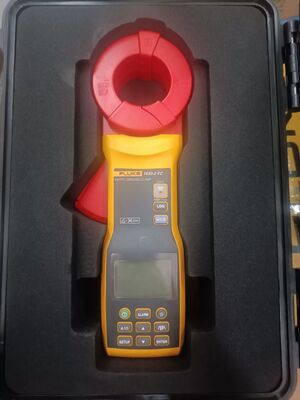

Fluke 1630-2 FC Ground Loop Resistance Test Clamp Meter with 1000V Maximum Voltage 40Hz-1kHz Frequency Range and 32760 Measurements Data Logging

  • Fluke 1630-2 FC Ground Loop Resistance Test Clamp Meter with 1000V Maximum Voltage 40Hz-1kHz Frequency Range and 32760 Measurements Data Logging
  • Fluke 1630-2 FC Ground Loop Resistance Test Clamp Meter with 1000V Maximum Voltage 40Hz-1kHz Frequency Range and 32760 Measurements Data Logging
  • Fluke 1630-2 FC Ground Loop Resistance Test Clamp Meter with 1000V Maximum Voltage 40Hz-1kHz Frequency Range and 32760 Measurements Data Logging
  • Fluke 1630-2 FC Ground Loop Resistance Test Clamp Meter with 1000V Maximum Voltage 40Hz-1kHz Frequency Range and 32760 Measurements Data Logging
  • Fluke 1630-2 FC Ground Loop Resistance Test Clamp Meter with 1000V Maximum Voltage 40Hz-1kHz Frequency Range and 32760 Measurements Data Logging
  • Fluke 1630-2 FC Ground Loop Resistance Test Clamp Meter with 1000V Maximum Voltage 40Hz-1kHz Frequency Range and 32760 Measurements Data Logging
Place of Origin USA
Brand Name FLUKE
Model Number 1630-2 FC
Minimum Order Quantity 2
Price USD＄1190
Delivery Time 10days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 20PC
Product Details
Highlight

1000V Maximum Voltage Ground Loop Resistance Test Clamp Meter

,

40Hz-1kHz Frequency Range Resistance Tester

,

32760 Measurements Data Logging Megohmmeter
Leave a Message
Product Description

Specifications: Fluke 1630-2 FC Earth Ground Clamp

Electrical Specifications
Maximum voltage to earth ground 1000 V
Battery type AA alkaline IEC/EN LR6 (x4)
Battery life More than 15 hours*
* In Ground Resistance measurement mode, with backlight turned off, and RF mode turned off
Frequency range 40 Hz to 1 kHz
Ingress protection IEC/EN 60529: IP30 with jaw closed
LCD Digital reading 9999 counts
Refresh rate 4 per second
Operating temperature -10 °C to + 50 °C
Storage temperature -20 °C to + 60 °C
Operating humidity Non condensing (<10 °C) (< 50 °F)
≤90% RH (at 10 °C to 30 °C [50 °F to 86 °F])
≤75% RH (at 30 °C to 40 °C [86 °F to 104 °F])
≤45% RH (at 40 °C to 50 °C [104 °F to 122 °F])
(Non condensing)
Operating altitude 2000 m (6561 feet)
Storage altitude 12 000 m (39,370 feet)
Reference temperature 23 °C ±5 °C (73 °F ±9 °F)
Temperature coefficient 0.15% x (specified accuracy)/ °C (<18 °C or >28 °C [<64.4 °F or >82.4 °F])
Overload indication OL
Data logging capacity Minimum of 32,760 measurements
Data logging interval 1 second to 59 minutes and 59 seconds
Display reading specification with standard loop resistance
Input (Ω) Minimum Maximum
0.474 0.417 0.531
0.5 0.443 0.558
10 9.55 10.45
100 96 104
Safety
General IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1
Measurement IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V
Current clamp for leakage current measurements IEC/EN 61557-13: Class 2, ≤30 A/m
Resistance to earth IEC/EN 61557-5
Effectiveness of thepProtective measures IEC/EN 61557-16
Electromagnetic compatibility (EMC) International IEC/EN 61326-1: Portable Electromagnetic Environment
CISPR 11: Group 1, Class B, IEC/EN 61326-2-2
Korea (KCC) Class A equipment (Industrial Broadcast & Communications Equipment)
USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103
Wireless Radio
Frequency range 2412 MHz to 2462 MHz
Output power <10 mW
Radio frequency certification FCC ID:T68-FBLE IC:6627A-FBLE
General Specifications
Conductor size 40 mm (1.57 in) approximately
Dimensions (L x W x H) 283 x 105 x 48 mm (11.1 x 4.1 x 1.9 in)
Weight 880g (31 oz)
Warranty One year
Earth Ground Loop Resistance
Range Accuracy1 ± (% of reading + Ω)
0.025 Ω to 0.249 Ω 1.5% + 0.02 Ω
0.250 Ω to 0.999 Ω 1.5% + 0.05 Ω
1.000 Ω to 9.999 Ω 1.5% + 0.10 Ω
10.00 Ω to 49.99 Ω 1.5% + 0.30 Ω
50.00 Ω to 99.99 Ω 1.5% + 0.50 Ω
100.0 Ω to 199.9 Ω 3.0% + 1.0 Ω
200.0 Ω to 399.9 Ω 5.0% + 5.0 Ω
400 Ω to 599 Ω 10.0% + 10 Ω
600 Ω to 1500 Ω 20.00%
1 Loop resistance with no inductance, conductor centered and perpendicular to jaw
Earth ground leakage current mA
Autorange 50/60 Hz, True rms, crest factor CF ≤3
Range Resolution Accuracy1 ± (% of reading + mA)
0.200 mA to 3.999 mA 1 μA 2.0% + 0.05 mA
4.00 mA to 39.99 mA 10 μA 2.0% + 0.03 mA
40.0 mA to 399.9 mA 100 μA 2.0% + 0.3 mA
0.400 A to 3.999 A 1 mA 2.0% + 3 mA
4.00 A to 39.99 A 10 mA 2.0% + 30 mA
