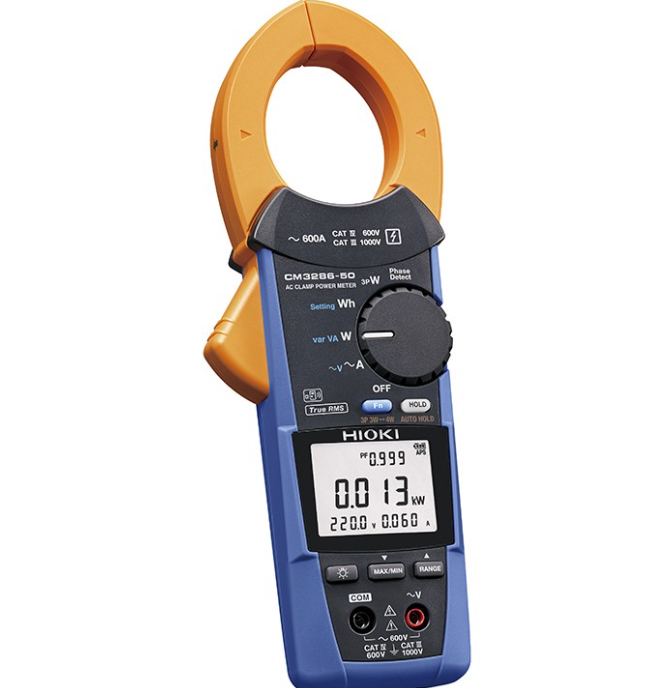

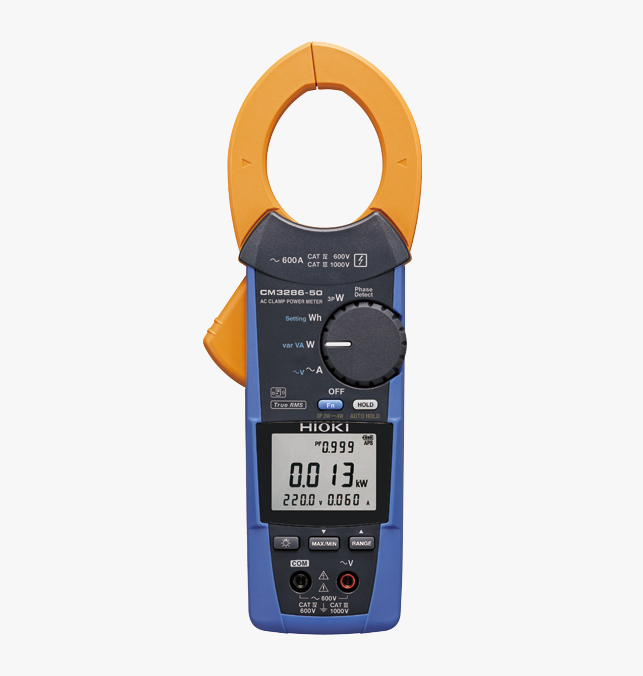

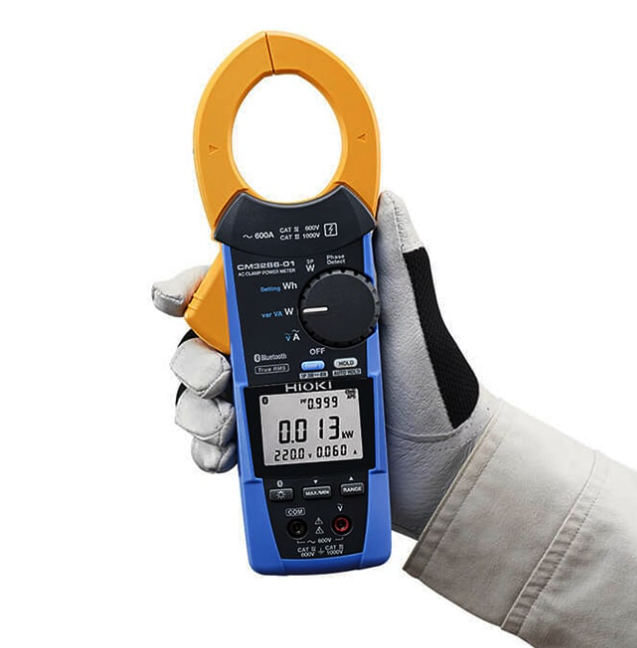

Hioki CM3286-50 AC CLAMP POWER METER

  • Hioki CM3286-50 AC CLAMP POWER METER
  • Hioki CM3286-50 AC CLAMP POWER METER
  • Hioki CM3286-50 AC CLAMP POWER METER
  • Hioki CM3286-50 AC CLAMP POWER METER
Place of Origin Japan
Brand Name Hioki
Certification CCC.CE
Model Number CM3286-50
Minimum Order Quantity 1
Price USD$450/PC
Packaging Details Original New
Delivery Time 3 days
Payment Terms L/C, T/T, Western Union
Supply Ability 10pcs
Product Details
Measurement Line Single-phase, Three-phase Measurement Items Voltage, Current, Voltage/Current Peak, Active/Reactive/Apparent Power, Power Factor, Phase Angle (*1), Frequency, Simple Active Energy Consumption (Single-phase)
AC Voltage Range 80.0 V To 600.0 V, Single Range, Basic Accuracy 45-66 Hz: ±0.7% Rdg. ±3 Dgt AC Current Range 0.060 A To 600.0 A, 3 Range, Basic Accuracy 45-66 Hz: ±1.3% Rdg. ±3 Dgt
Power Range 0.005 KW To 360.0 KW Dustproof IP20
Dimensions And Mass 65 Mm (2.56in) W × 241 Mm (9.49in) H × 35 Mm (1.38in) D, 450 G Included Accessories Connection Cord L9257 ×1, LR03 Alkaline Battery ×2, Carrying Case C0203 ×1, Instruction Manual ×2, Operating Precautions ×1
Leave a Message
Product Description

Hioki CM3286-50 AC CLAMP POWER METER

Quickly Check Current, Voltage, Power, and Power Factor
Detect Electricity Theft and Meter Tampering

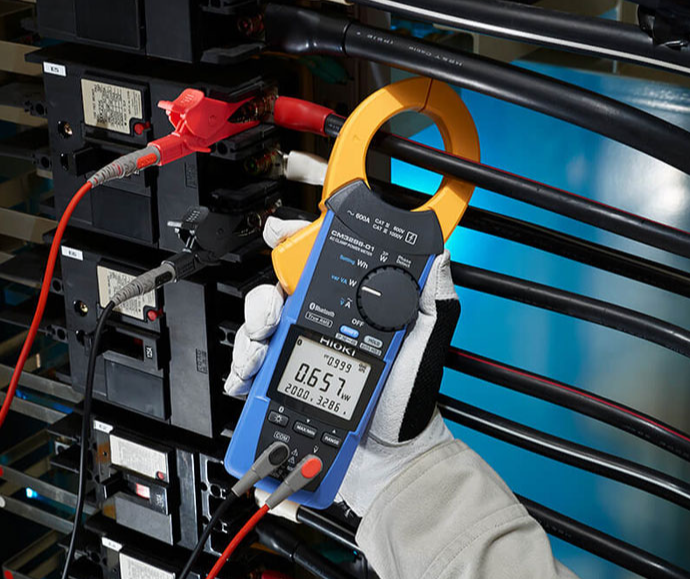

Hioki clamp meters are best in class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286-50 clamp on power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.



Hioki CM3286-50 AC CLAMP POWER METER 0
