Fluke 1550 1550C Digital Insulation Tester
| Place of Origin | USA |
|---|---|
| Brand Name | Fluke |
| Certification | CCC.CE |
| Model Number | 1550 |
| Minimum Order Quantity | 1 |
| Price | $2980/pc |
| Packaging Details | carton |
| Delivery Time | 3 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 |
Product Details
| Bar Graph Range | 0 To 1 TΩ | Insulation Test Voltage Accuracy | -0%, +10% At 1 MA Load Current |
|---|---|---|---|
| Induced AC Mains Current Rejection | 2 MA Maximum | Display | 75 X 105 Mm |
| Temperature (operating) | -20°C To 50°C | Enclosure Sealing | IP40 |
| Highlight | Fluke 1550C digital insulation tester,Fluke 1550 insulation resistance meter,digital insulation tester with warranty |
||
Product Description

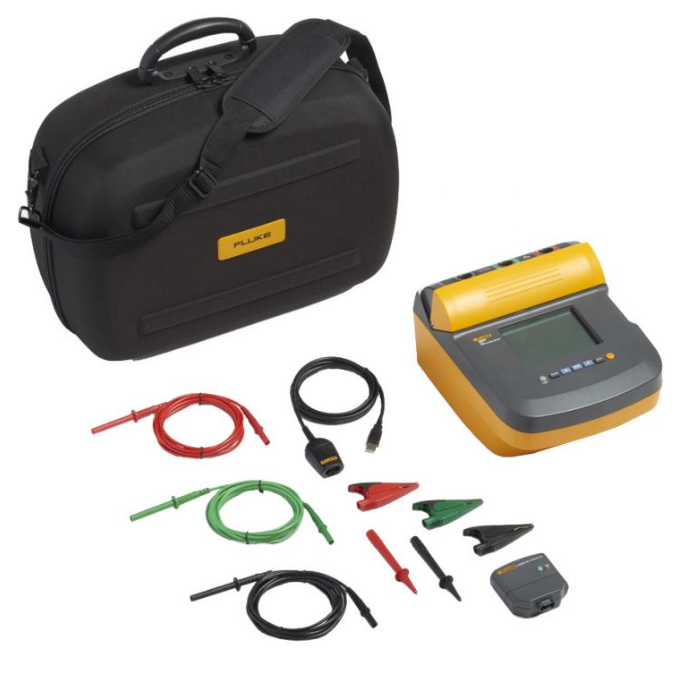

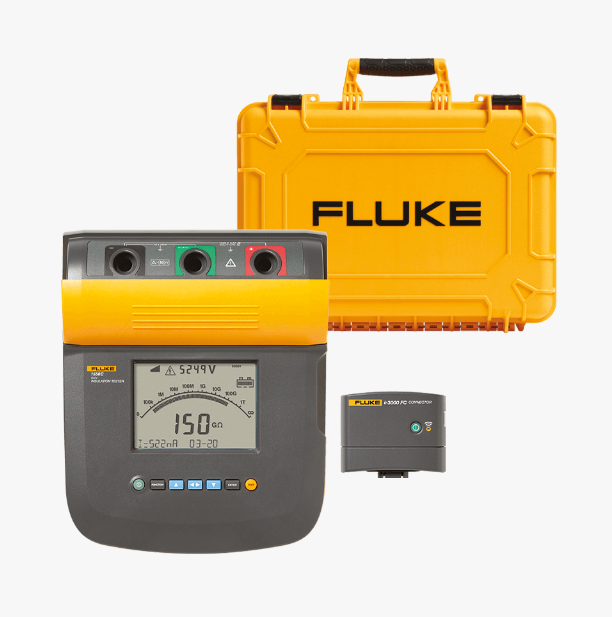

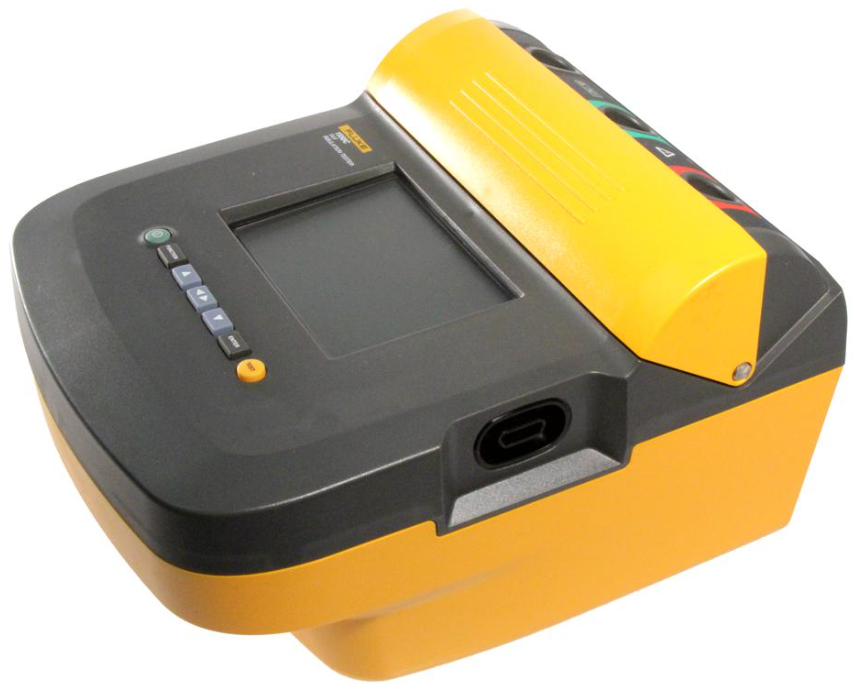

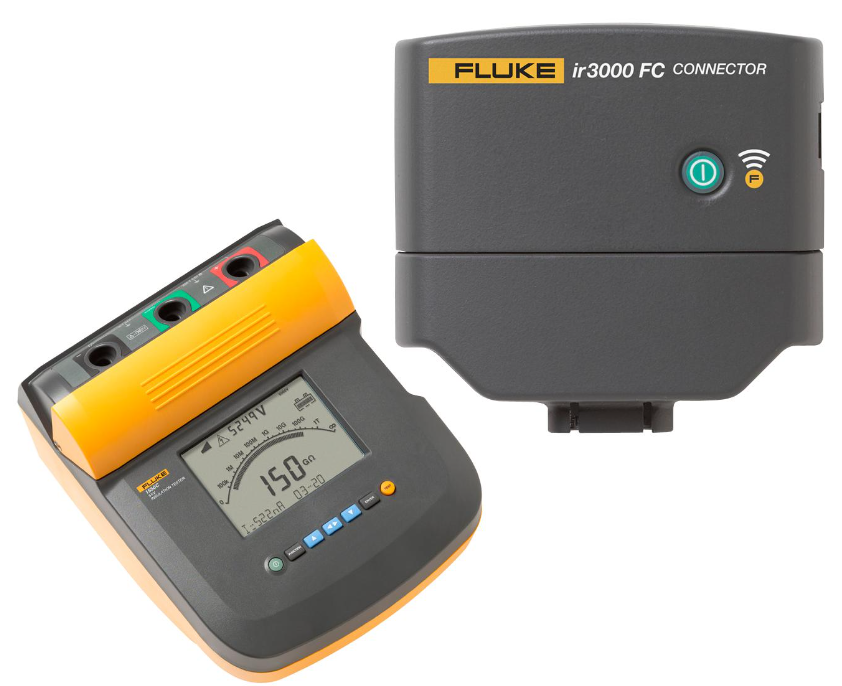

Fluke 1550 1550C Digital Insulation Tester
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- CAT III 1000 V, CAT IV 600 V safety rating
- Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- Long battery life gives the user over 750 tests between charges
- Large digital/analog LCD for easy viewing
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Resistance measurements up to 2 TΩ
- Timer settings up to 99 minutes for timed tests
