Dwyer Flow Switch V4-SS-U-AT-316
| Place of Origin | USA |
|---|---|
| Brand Name | Dwyer |
| Certification | CCC,CE |
| Model Number | V4-SS-U-AT-316 |
| Minimum Order Quantity | 1 |
| Price | USD$1400/PC |
| Packaging Details | carton |
| Delivery Time | 4-6 weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 10 |
Product Details
| Service | Gases Or Liquids Compatible With Wetted Materials | Wetted Materials | 316 SS; Body |
|---|---|---|---|
| Temperature Limit | -4 To 275°F | Pressure Limit | Brass Body 1000 Psig , 316 SS Body 2000 Psig |
| Switch Type | SPDT Snap Switch Standard, DPDT Snap Switch Optional | Process Connection | 1-1/2˝ Male NPT Or 1-1/2˝ Male BSPT |
| Conduit Connection | 3/4˝ Female NPT Standard Or M25 With -BSPT Option | Weight | 2kg |
| Highlight | Dwyer flow switch stainless steel,precision pressure transmitter with warranty,V4-SS-U-AT-316 flow switch |
||
Product Description

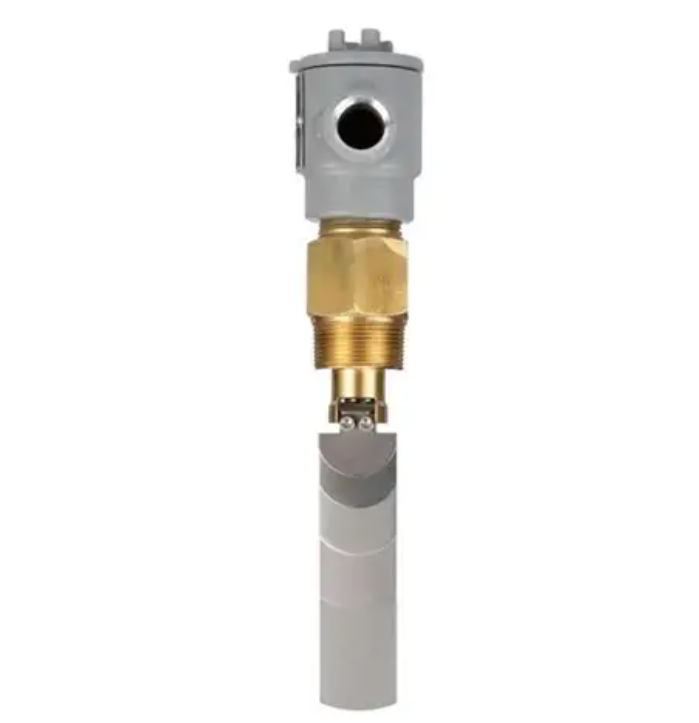

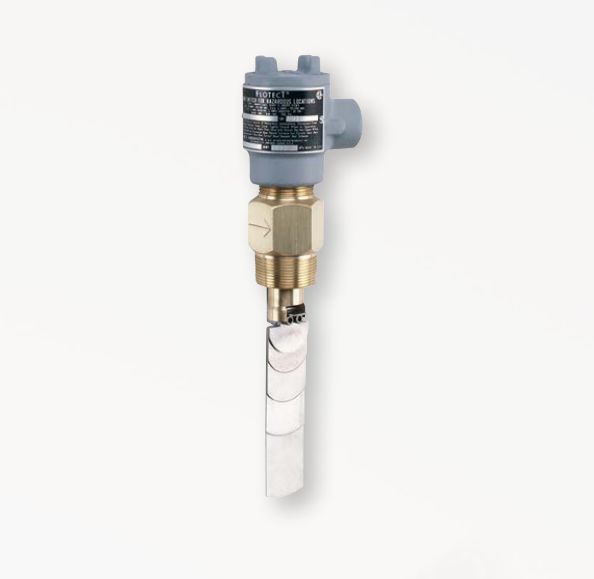

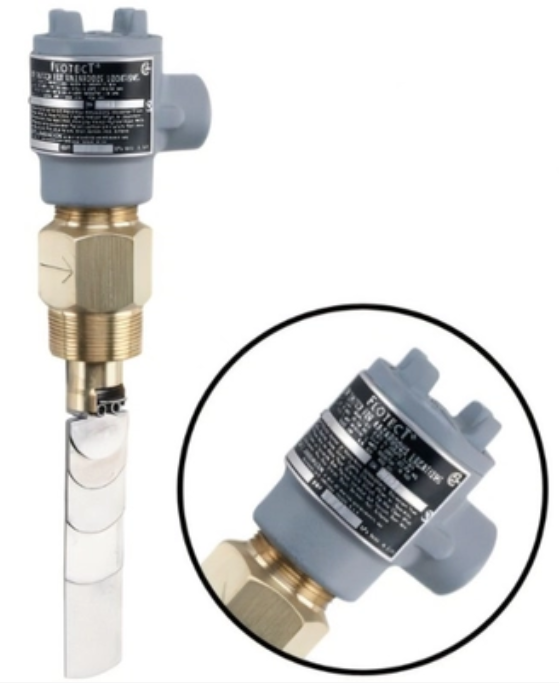

Dwyer Flow Switch V4-SS-U-AT-316
Unique magnetically actuated switching design gives superior performance
• Features a free-swinging vane which attracts a magnet within the solid metal switch body, actuating a snap switch by means
of a simple lever arm with no bellows, springs, or seals to fail
• Leak proof body machined from bar stock
• Electrical assembly can be easily replaced without removing the unit from installation so that the process does not have to
be shut down

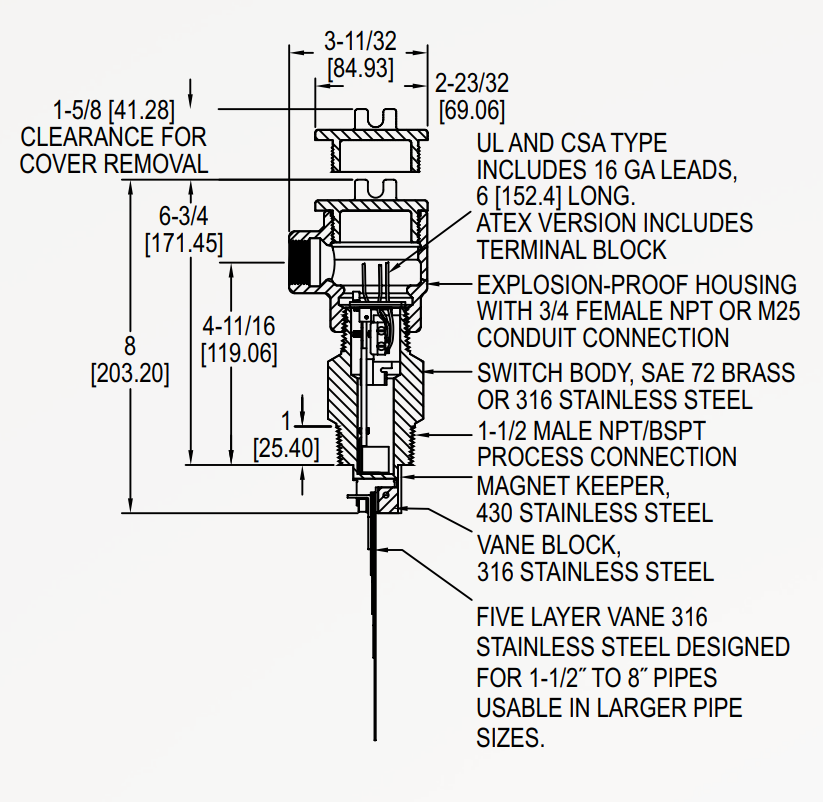

• Installs directly and easily into pipeline with a thredolet, tee, or flange (see application drawings)
• High pressure rating of 1000 psig (69 bar) with the brass body and 2000 psig (138 bar) with the 316 SS body
• Choice of custom vane calibrated for your application, Model V4, or field adjustable multilayer vane, Model V4-2-U (see set
point chart)
