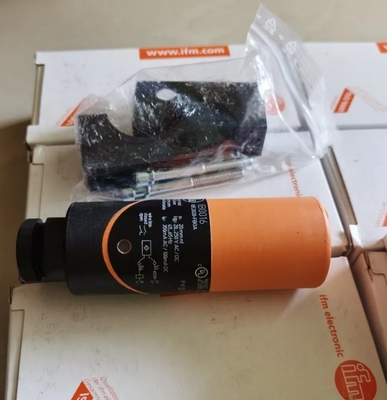

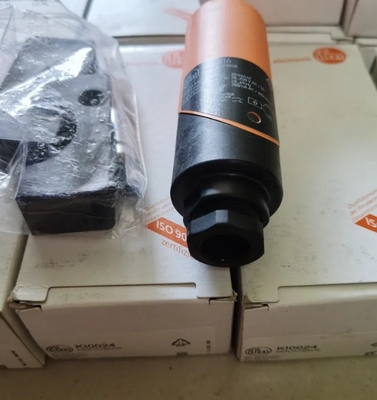

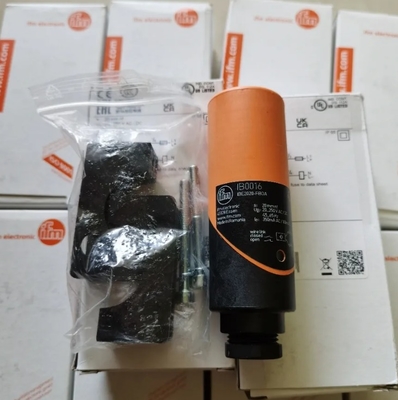

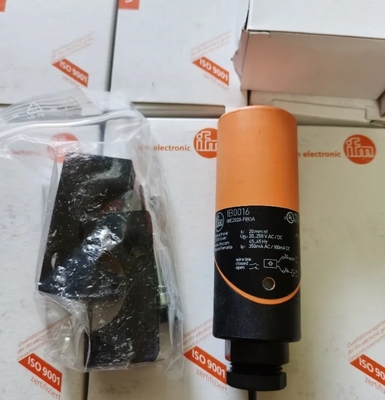

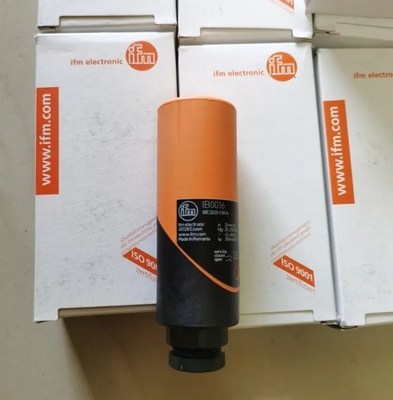

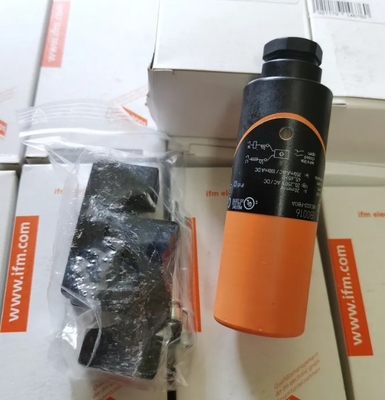

Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
| Place of Origin | China |
|---|---|
| Brand Name | IFM |
| Certification | - |
| Model Number | IB0004 |
| Minimum Order Quantity | 1 |
| Price | USD160/PC |
| Packaging Details | Original |
| Delivery Time | 2weeks |
| Payment Terms | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Communication Interface | Ethernet | Brand Name | IFM |
|---|---|---|---|
| Output Function | Normally Open / Normally Closed; (selectable) | Sensing Range[mm] | 20 |
| Highlight | Inductive Sensor IB0004 IB0026,Inductive Sensor IB5097 IB0017,Inductive Sensor IB0029 IB0011 |
||
Product Description
Product characteristics
| Output function | normally open |
| Sensing range[mm] | 20 |
| Housing | tubular |
| Dimensions[mm] | Ø 34 / L = 82 |
Electrical data
| Operating voltage[V] | 20...250 AC/DC |
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 6 |
| Max. voltage drop switching output AC[V] | 6.5 |
| Minimum load current[mA] | 5 |
| Max. leakage current[mA] | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
| Permanent current rating of switching output AC[mA] | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC[mA] | 100 |
| Short-time current rating of switching output[mA] | 2200; (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] | 25 |
| Switching frequency DC[Hz] | 50 |
| Short-circuit proof | no |
| Overload protection | no |
Monitoring range
| Sensing range[mm] | 20 |
| Real sensing range Sr[mm] | 20 ± 10 % |
| Operating distance[mm] | 0...16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 1...15 |
| Switch-point drift[% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||
| MTTF[years] | 610 |
Mechanical data
| Weight[g] | 257 |
| Housing | tubular |
| Mounting | non-flush mountable |
| Dimensions[mm] | Ø 34 / L = 82 |
| Material | PBT |
Displays / operating elements
| Display |
|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
Accessories
| Items supplied |
|
Remarks
| Remarks |
|
|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 2 m, PVC; 2 x 0.5 |
