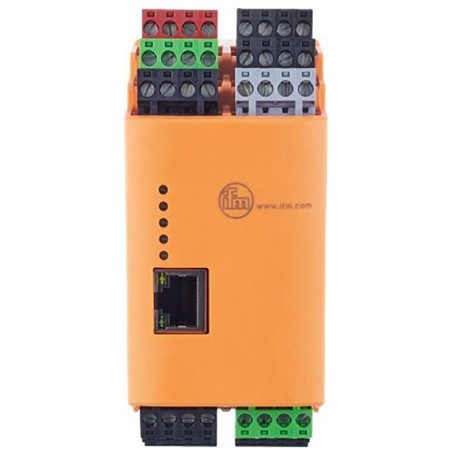

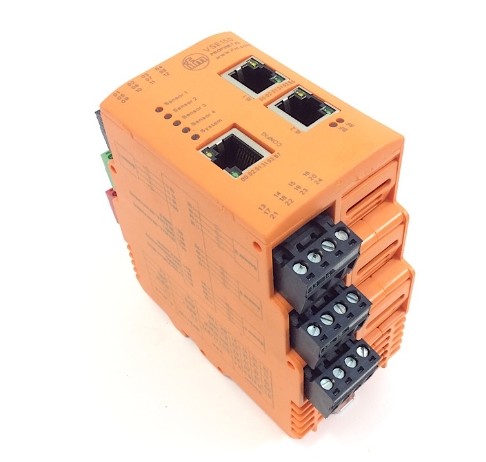

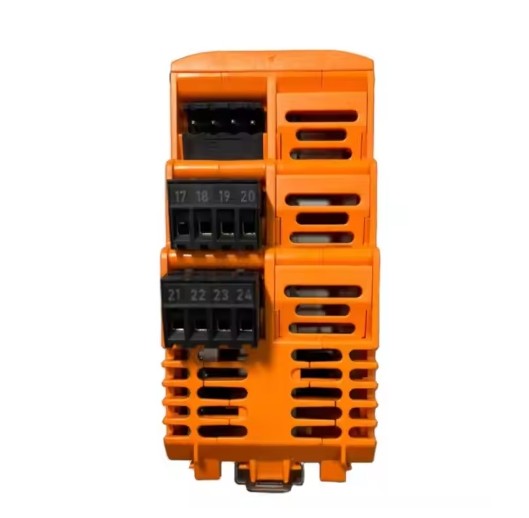

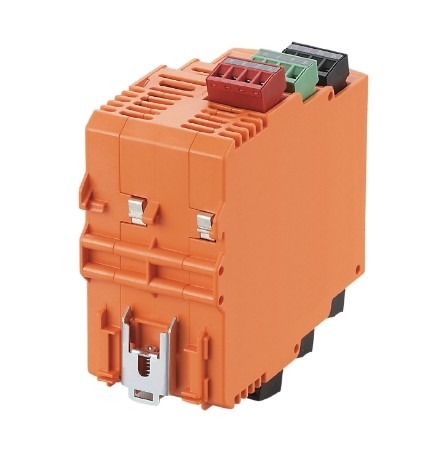

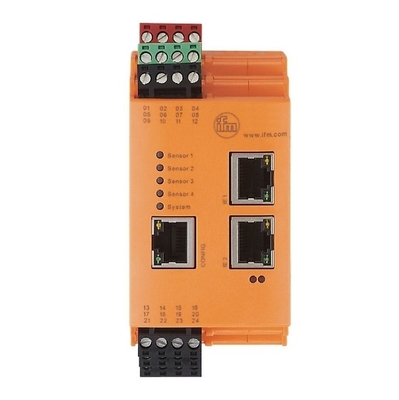

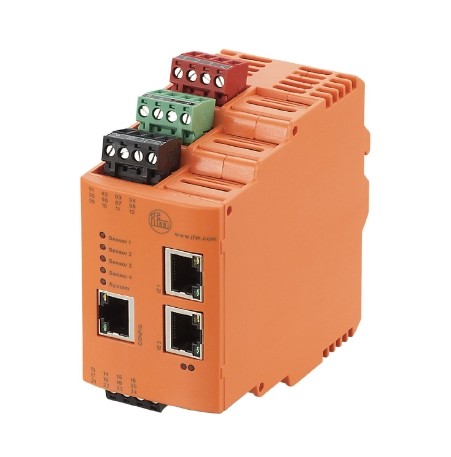

IFM VSE150 Vibration Analysis Module Vibration Sensor

  • IFM VSE150 Vibration Analysis Module Vibration Sensor
  • IFM VSE150 Vibration Analysis Module Vibration Sensor
  • IFM VSE150 Vibration Analysis Module Vibration Sensor
  • IFM VSE150 Vibration Analysis Module Vibration Sensor
  • IFM VSE150 Vibration Analysis Module Vibration Sensor
  • IFM VSE150 Vibration Analysis Module Vibration Sensor
Place of Origin Germany
Brand Name ifm
Certification CCC,CE
Model Number VSE150
Minimum Order Quantity 1
Price USD$1040/pc
Packaging Details original
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Range [Hz] 0.1...12000 Ambient Temperature [°C] 0...60
Weight [g] 415.2 Current Loss [mA] 200
Working Voltage [V] 24 DC
Highlight

IFM VSE150 Vibration Sensor

,

Vibration Analysis Module Vibration Sensor
Leave a Message
Product Description
Product characteristics
Frequency range [Hz] 0.1...12000
Communication interface Ethernet
Application
Design parameter setting via PC software VES004
Application continuous vibration monitoring
Electrical data
Operating voltage tolerance [%] 20
Operating voltage [V] 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric)
Current consumption [mA] 200; ((24 V DC))
Protection class III
Inputs / outputs
Total number of inputs and outputs 8; (configurable)
Number of inputs and outputs Number of analog inputs: 2; Number of dynamic inputs: 4; Number of digital outputs: 2; Number of analog outputs: 1
Inputs
Total number of inputs 6
Number of analog inputs 2
Analog input (current) [mA] 4...20
Resolution of analog input 12
Number of dynamic inputs 4
Dynamic input - signal 0...10 mA / IEPE / 4...20 mA
Dynamic input - resolution [bit] 16
Dynamic input - frequency range [Hz] 0,1...12000
Dynamic input - sampling rate [kSamples] 100
Outputs
Total number of outputs 2
Output signal switching signal; analog signal
Electrical design PNP
Number of digital outputs 2; (configurable)
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 100
Number of analog outputs 1; (configurable)
Analog current output [mA] 4...20
Max. load [Ω] 500
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Measuring/setting range
Frequency range [Hz] 0.1...12000
Interfaces
Communication interface Ethernet
Transmission rate 10 MBaud; 100 MBaud
Protocol PROFINET IO
Operating conditions
Ambient temperature [°C] 0...60
Storage temperature [°C] 0...60
Protection IP 20
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV contact discharge / 15 kV air discharge
EN 61000-4-3 10 V/m (80...2700 MHz)
EN 61000-4-4 Burst 4 kV capacitive coupling probe, earthed
EN 61000-4-6 10 V 0,15...80 MHz
EN 61000-6-4 industrial environments
MTTF [years] 92
UL approval
Ta 0...60 °C
Enclosure type open Type
voltage supply Limited Voltage/Current
UL approval number L001
Mechanical data
Weight [g] 415.2
Housing Plastic housing
Type of mounting rail; (TH35/EN60715)
Dimensions [mm] 114.2 x 50 x 105.3
Material PA
Data memory
Real-time clock yes
Accessories
Accessories (optional)
cross-over Ethernet patch cable for the direct connection to the PC
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Combicon:
