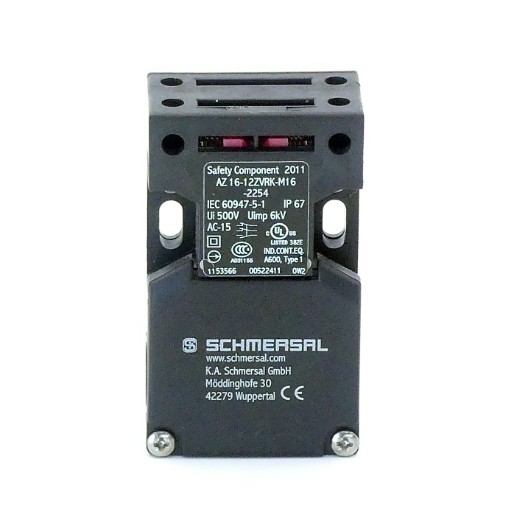

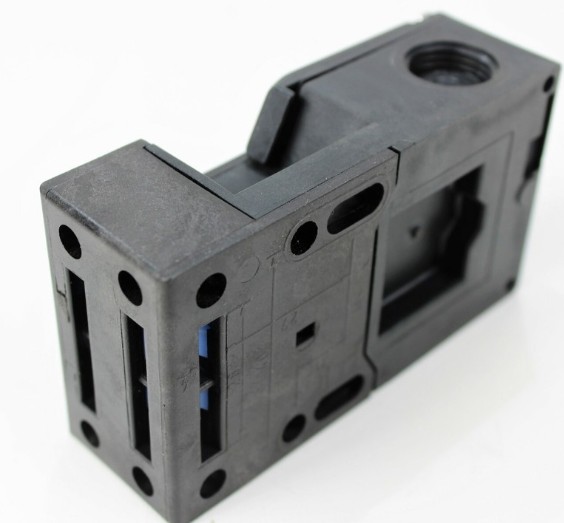

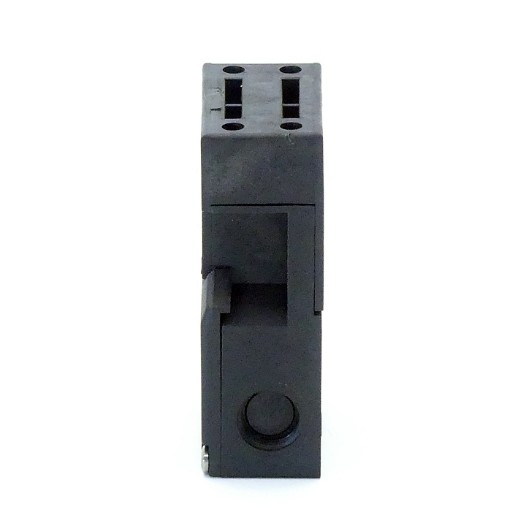

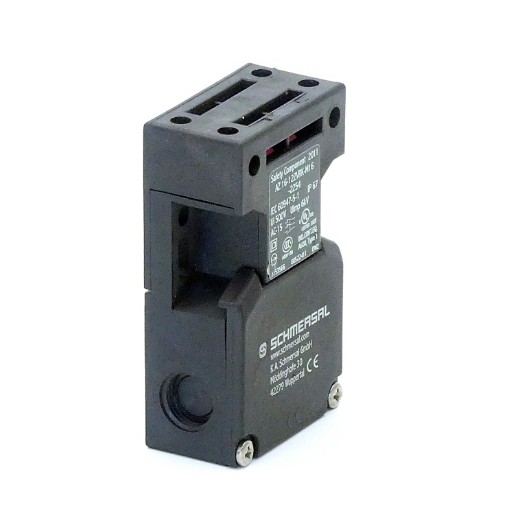

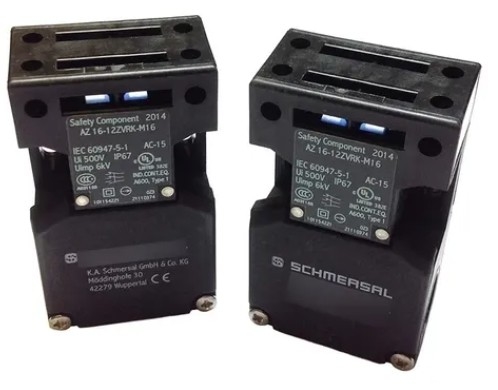

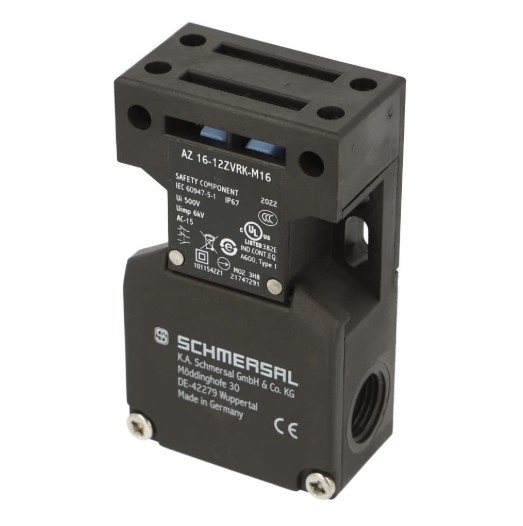

In Stock Schmersal AZ16-12ZVRK-M16 Safety Interlock Switch
| Place of Origin | CHINA |
|---|---|
| Brand Name | Schmersal |
| Certification | CE |
| Model Number | AZ16-12ZVRK-M16 |
| Minimum Order Quantity | 1 |
| Price | USD18/PC |
| Packaging Details | Paper box |
| Delivery Time | 1WEEK |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Vorschriften | EN ISO 13849-1 | Positive Break Travel | 8 Mm |
|---|---|---|---|
| Positive Break Force Per NC Contact, Minimum | 10 N | Type Of The Fixing Screws | 2x M6 |
| Highlight | In Stock Safety Interlock Switch,AZ16-12ZVRK-M16 Safety Interlock Switch,Schmersal Safety Interlock Switch |
||
Product Description
Ordering data
| Product type description | AZ 16-12ZVRK-M16 |
| Article number (order number) | 101154221 |
| EAN (European Article Number) | 4030661171586 |
| eCl@ss number, version 12.0 | 27-27-26-02 |
| eCl@ss number, version 11.0 | 27-27-26-02 |
| eCl@ss number, version 9.0 | 27-27-26-02 |
| ETIM number, version 7.0 | EC002592 |
| ETIM number, version 6.0 | EC002592 |
Approvals - Standards
| Certificates |
cULus CCC |
General data
| Standards |
EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-1 |
| Coding level according to EN ISO 14119 | Low |
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 120 g |
General data - Features
| Number of actuating directions | 3 |
| Number of auxiliary contacts | 1 |
| Number of safety contacts | 2 |
| Number of cable glands | 3 |
| Safety classification |
| Vorschriften | EN ISO 13849-1 |
| Performance Level, up to | c |
| Category | 1 |
| B10D Normally-closed contact (NC) | 2,000,000 Operations |
| Note | Electrical life on request. |
| B10D Normally-open contact (NO) | 1,000,000 Operations |
| Note | at 10% Ie and ohmic load |
| Mission time | 20 Year(s) |
