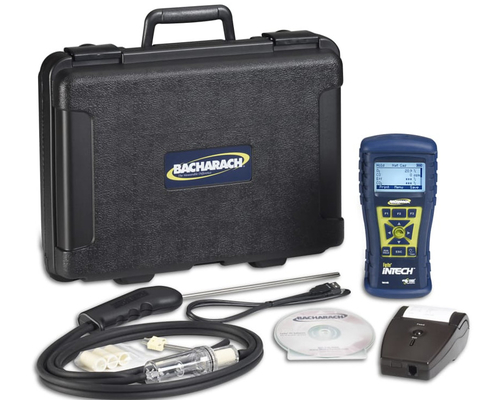

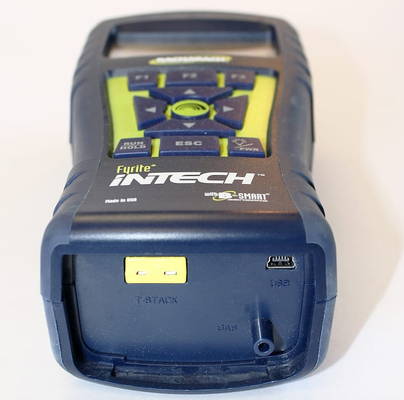

Original Bacharach 0024-8512 Accessories With 1 And 10 Memory Locations

Place of Origin	-
Brand Name	Bacharach
Certification	-
Model Number	0024-8512
Minimum Order Quantity	1
Price	USD120/PC
Packaging Details	Original
Delivery Time	1week
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	1000

Product Details

Warrany	1 Year	Memory	10 Locations For Storing Test Results
USB Connector	Mini B (USB 2.0)	Display	Monochrome With Backlight
Highlight	Original Bacharach 0024-8512 Accessories

Leave a Message

Product Description

Manufacturer Specs

Bacharach 0024-8512 Specifications
Temperature	Storage: -20° to 50° C ( -4° to 122° F),0° to 20° C (32° to 68° F ) optimal Operation: -5° to 45° C (23° to 113° F) Reference: 20° ± 2° C (68° ± 4° F)
Humidity	Storage: 15 to 90% RH, non-condensing Operation: 15 to 95% RH, non-condensing Reference: 45 ± 10% RH, non-condensing
Pressure	1 atmosphere ± 10%
Weight	16 ounces (454 g) with batteries
Dimensions	8.0" x 3.6" x 2.3" (20.3 cm x 9.1 cm x 5.8 cm) (H x W x D)
Warm-up Time	Minimum = 30 seconds; Maximum = 60 seconds
Gas Sample Flow Rate	300 to 700 cc/min
Sensors	O2 Electrochemical (P/N: 0024-0788) CO Electrochemical (P/N: 0024-7265) Temp (Stack) K-Type thermocouple
Product Approvals and Regulatory Compliance	EN50270: (CE Mark) EMC tested in accordance with European Directive 2004/108/EC. EN50379: Standard for portable electrical apparatus designed to measure combustion flue gas parameters of heating appliances (Siegert only) Parts 1 and 3. RoHS Compliance
Case Construction	High impact ABS plastic with co-molded rubber. Protective rubber boot with molded-in magnets.
Display	Monochrome with backlight
USB Connector	Mini B (USB 2.0)
Memory	10 locations for storing test results
IrDA Port	Protocol: IrDA-SIR Data Bits: 8 Stop Bits: 1 Baud Rate: 9600 Parity: None
Power Supply Options	Batteries (4 AA)	Type: Disposable Alkaline (Included) Duration: 15 hours min, continuous max draw
		Type: Disposable Lithium Duration: 20 hours, continuous max draw
		Type: Rechargeable Duration: 8 hours, continuous max draw

Measurement	Range	Resolution	Accuracy	Response Time (T90)
O2	0 to 20.9 %	0.1% O2	±0.3% O2 (on flue gas)	< 20 sec
CO	0 to 2000 ppm	1 ppm	±10 ppm (0 to 200) ±5% reading (201 to 2000)	< 40 sec
