100% Original New High Voltage Insulation , Ground Multifunctional Tester
| Place of Origin | Germany |
|---|---|
| Brand Name | - |
| Model Number | 3122B |
| Minimum Order Quantity | 1 |
| Price | USD$685/pc |
| Packaging Details | original |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test Voltage | 5000V | Measuring Range | 5/200GΩ (automatic Range) |
|---|---|---|---|
| Weight | About 1.7 Kg | Attachment | 7165A (Line Probe) |
| Highlight | multifunctional high voltage insulation tester,ground multifunctional high voltage insulation tester |
||
Product Description

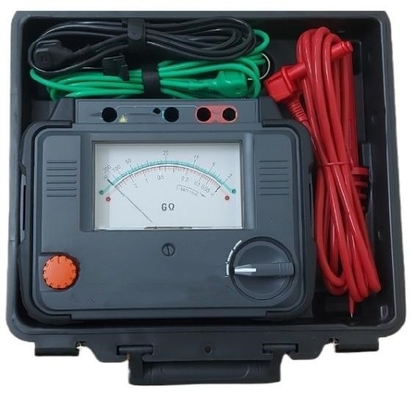

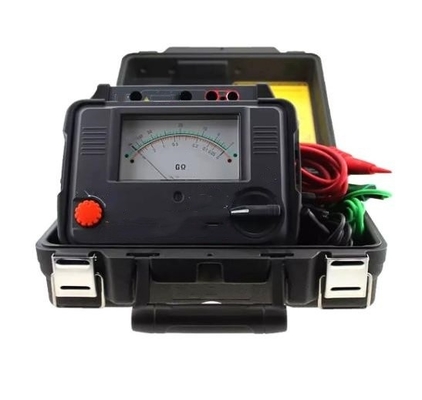

High voltage insulation resistance tester
Test voltage: 2500V
Measuring ranges: 5GΩ/200GΩ (Auto-ranging)
Accuracy:
0.2 - 100GΩ: ±5%rdg
0 - 0.2GΩ, 100GΩ - ∞:
±10%rdg or 0.5% of scale length
Applicable standards:
IEC 61010-1, 61010-2-030
Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2
Power source: DC12V : LR14/R14 × 8pcs
Dimensions: 177 (L) × 226 (W) × 100 (D) mm
Weight : 1.7kg approx.

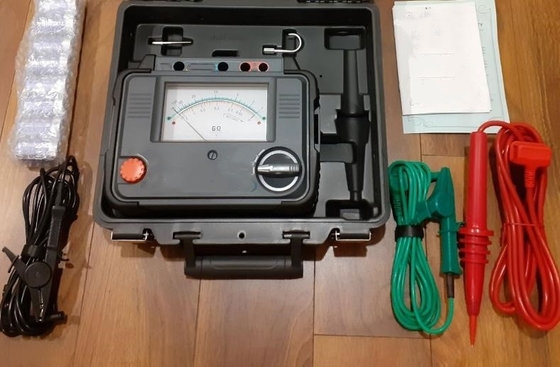

Accessories:
7165A (Line probe: 3m)
7264 (Earth cord: 3m)
7265 (Guard cord: 3m)
8019 (Hook type prod)

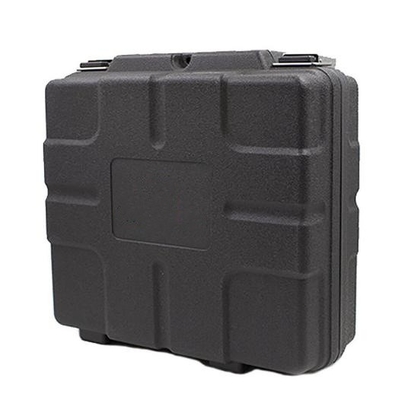

9183 (Carrying case[Hard])
LR14 (Alkaline battery size C) × 8
| Test voltage | 5000V |
| Measuring range | 5/200GΩ (automatic range) |
| weight | About 1.7 kg |
| attachment | 7165A (Line probe) |
