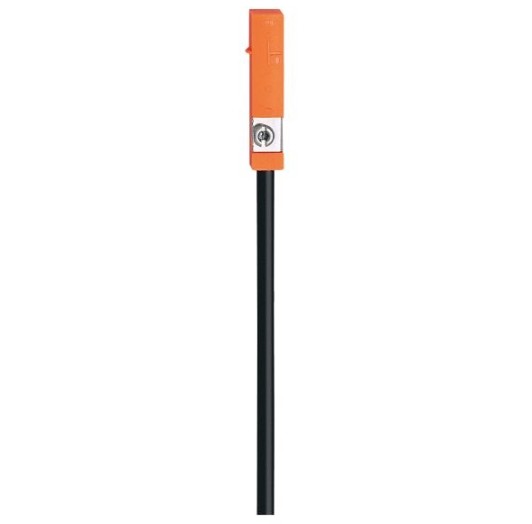

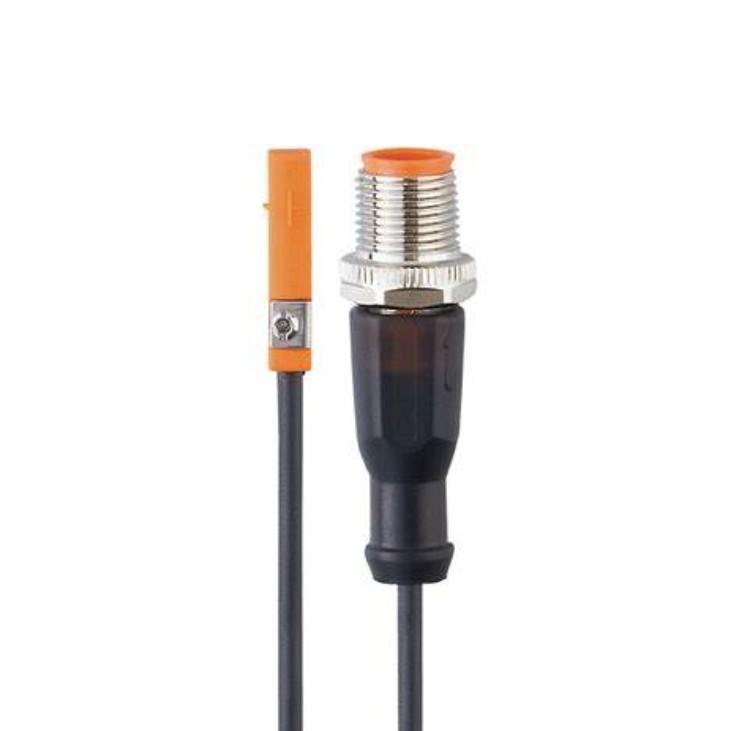

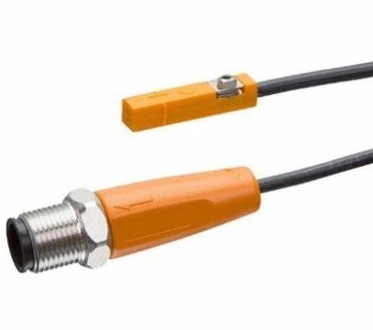

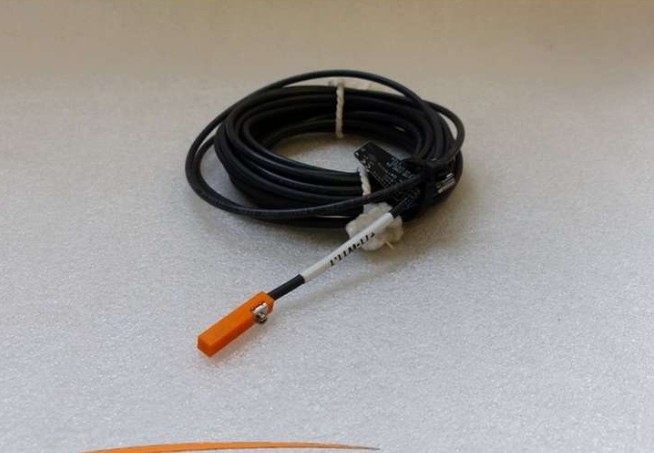

IFM T-slot Cylinder Sensor MK5117 MKT3028BBPKG/G/6,0M/ZH

Place of Origin	china
Brand Name	IFM
Certification	CE
Model Number	MK5117
Minimum Order Quantity	1
Price	USD$42
Packaging Details	carton
Delivery Time	3-4weeks
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	500pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Electrical Design

Output Function

Normally Open

Dimensions[mm]

25 X 5 X 6.5

Protection Class

Highlight

MK5117 T-slot cylinder sensor

MKT3028BBPKG/G/6

0M T-slot cylinder sensor

IFM T-slot cylinder sensor

Leave a Message

Product Description

Electrical design	PNP
Output function	normally open
Dimensions[mm]	25 x 5 x 6.5

Electrical data

Operating voltage[V]	10...30 DC; (cULus - Class 2 source required)
Current consumption[mA]	< 10
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time[ms]	30

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	200
Switching frequency DC[Hz]	10000
Short-circuit protection	yes
Overload protection	yes

Monitoring range

Magnetic sensitivity[mT]	2.8
Travel speed[m/s]	> 10

Accuracy / deviations

Hysteresis[mm]	< 1.5
Repeatability[mm]	< 0.2

Operating conditions

Ambient temperature[°C]	-25...85
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	- CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

Mechanical data

Weight[g]	73.5
Mounting	flush mountable
Type of mounting	fastening clamp with combined slot / hexagon socket, width across flats 1.5
Cylinder type	T-slot cylinders
Dimensions[mm]	25 x 5 x 6.5
Material	housing: PA; Fastening clamp: stainless steel
