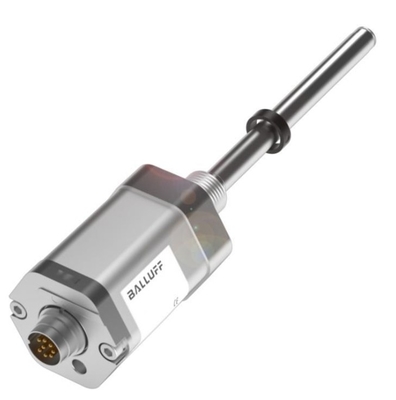

BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency

  • BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
  • BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
  • BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
  • BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
Place of Origin china
Brand Name Balluff
Certification CE
Model Number BTL7-E100-M0650-B-S32
Minimum Order Quantity 1
Price USD$750
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material Aluminum, Anodized Connection Connector, M16x0.75, 8-pin
Measuring Range 750 Mm Sampling Frequency Max. 1000 Hz
Highlight

BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer

,

750 mm Balluff Micropulse Transducer
Leave a Message
Product Description
Style
Rod series
Mounting part
Threaded flange M18x1.5
Housing material
Aluminum, Anodized
Magnets, number max.
1
Connection
Connector, M16x0.75, 8-pin
Analog output
Analog, current 4…20 mA
Measuring range
750 mm
Sampling frequency max.
1000 Hz
Non-linearity max.
±0.01 % FS
Repeat accuracy
± 5 µm
Operating voltage Ub
20...28 VDC
Ambient temperature
-40...85 °C
IP rating
IP67
Approval/Conformity
CE
UKCA
cULus
WEEE
