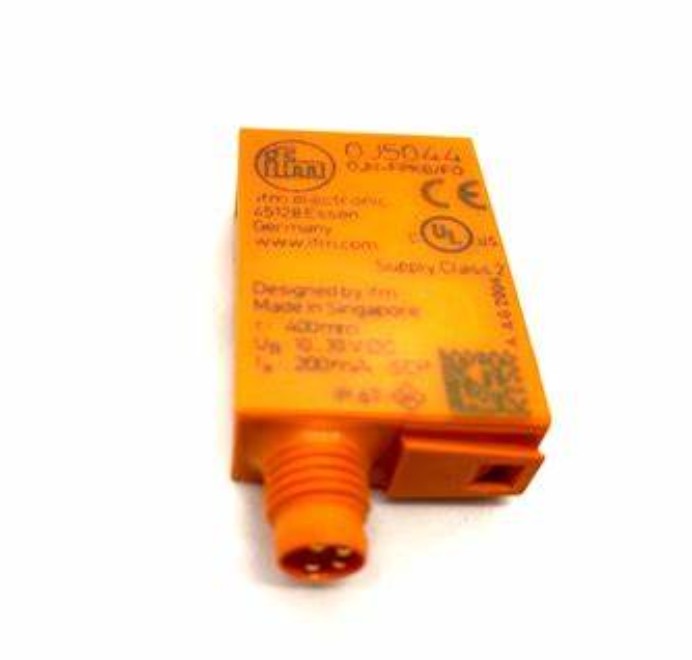

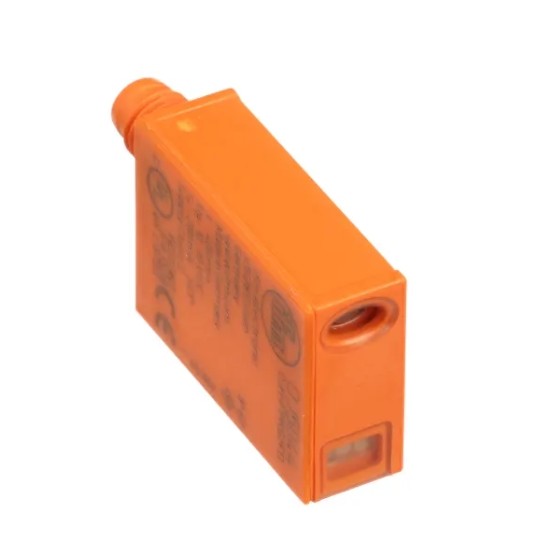

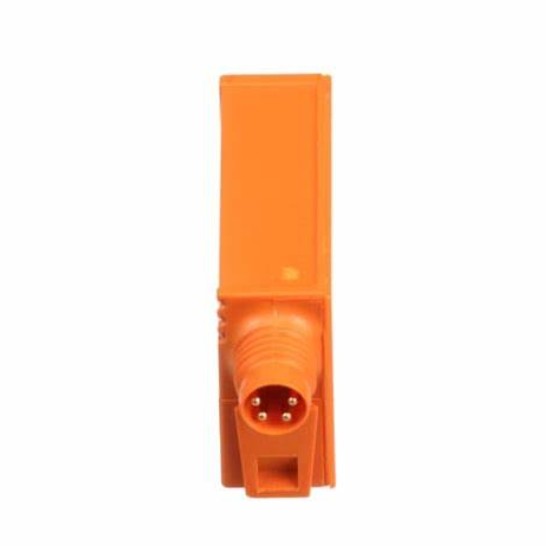

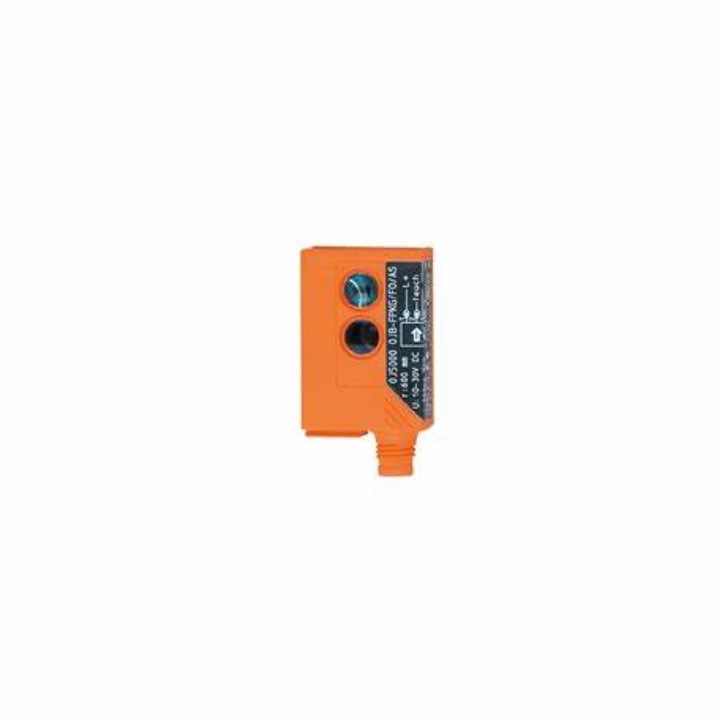

IFM Diffuse Reflection Sensors With Background Suppression OJ5044 OJH-FPKG/FO/AS

  • IFM Diffuse Reflection Sensors With Background Suppression OJ5044 OJH-FPKG/FO/AS
  • IFM Diffuse Reflection Sensors With Background Suppression OJ5044 OJH-FPKG/FO/AS
  • IFM Diffuse Reflection Sensors With Background Suppression OJ5044 OJH-FPKG/FO/AS
  • IFM Diffuse Reflection Sensors With Background Suppression OJ5044 OJH-FPKG/FO/AS
Place of Origin china
Brand Name IFM
Certification CE
Model Number OJ5044
Minimum Order Quantity 1
Price USD$120
Packaging Details carton
Delivery Time 8-10weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Of Light Red Light Housing Rectangular
System Background Suppression Current Consumption[mA] 25
Highlight

Background Suppression Diffuse reflection sensors

,

IFM Diffuse reflection sensors

,

OJ5044 Diffuse reflection sensors
Leave a Message
Product Description

Product characteristics

Type of light red light
Housing rectangular

Application

System Background suppression
Function principle Diffuse reflection sensor

Electrical data

Operating voltage[V] 10...30 DC
Current consumption[mA] 25
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length[nm] 660

Outputs

Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 200
Switching frequency DC[Hz] 1000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes

Monitoring range

Range[mm] 15...400; (white paper 200 x 200 mm 90 % remission)
Range adjustable yes
Max. light spot diameter[mm] 18
Light spot dimensions refer to Range
Background suppression available yes
