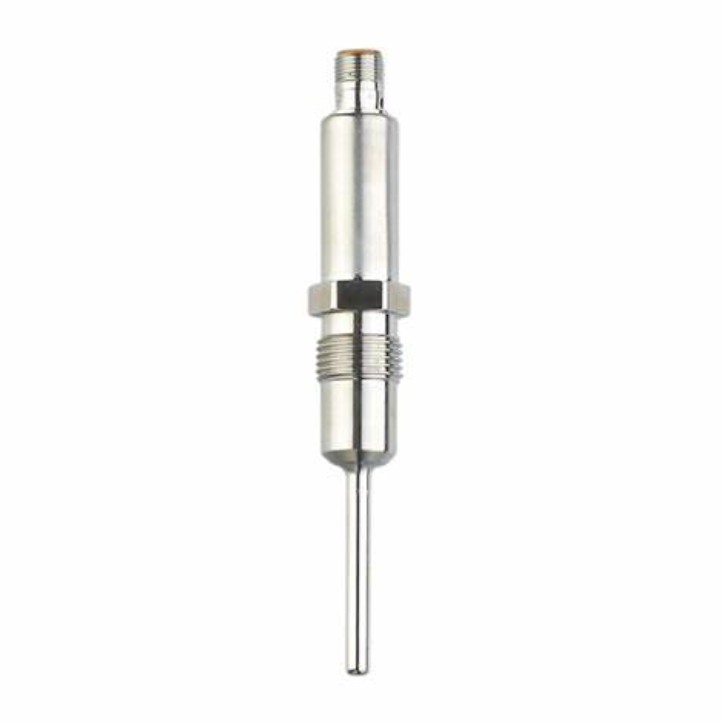

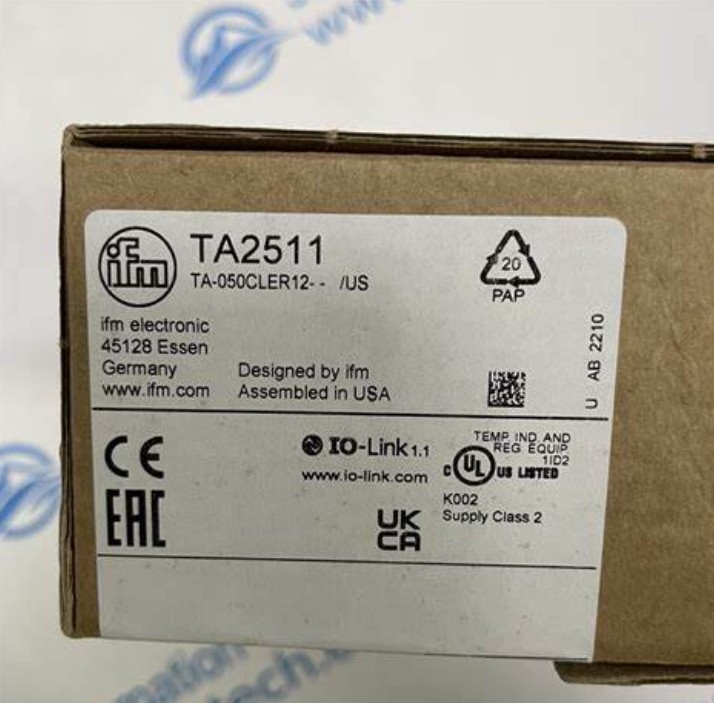

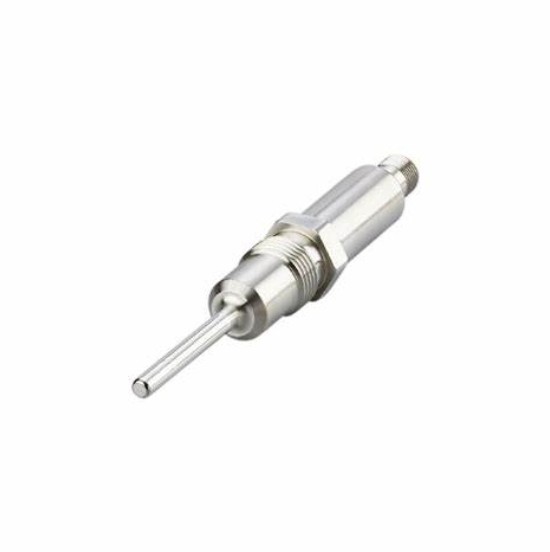

IFM Temperature Transmitter TA2511 TA-050CLER12- - /US

Place of Origin china
Brand Name IFM
Certification CE
Model Number TA2511
Minimum Order Quantity 1
Price USD$260
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range[°C] -50...200 Communication Interface IO-Link
Installation Length EL[mm] 50 Pressure Rating[bar] 160
Highlight

IFM Temperature transmitter TA2511

,

US Temperature transmitter TA2511

,

TA2511 Temperature transmitter

Leave a Message
Product Description

Product characteristics

Number of inputs and outputs Number of analog outputs: 1
Measuring range[°C] -50...200
Communication interface IO-Link
Process connection threaded connection G 1/2 sealing cone
Installation length EL[mm] 50

Application

Measuring element 1 x Pt 1000; (to DIN EN 60751, class A)
Media liquids and gases
Pressure rating[bar] 160
Vacuum resistance[mbar] -1000
MAWP (for applications according to CRN)[bar]

160



Electrical data

Operating voltage[V] 18...32 DC; (cULus - Class 2 source required)
Current consumption[mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time[s] 2

Outputs

Total number of outputs 1
Output signal analog signal; IO-Link; (configurable)
Number of analog outputs 1
Analog current output[mA] 4...20
Max. load[Ω] 250; ((18...19 V); 19...32 V: 300 Ω)
Short-circuit protection yes
Overload protection yes
