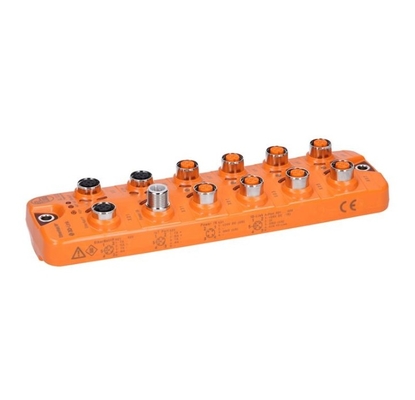

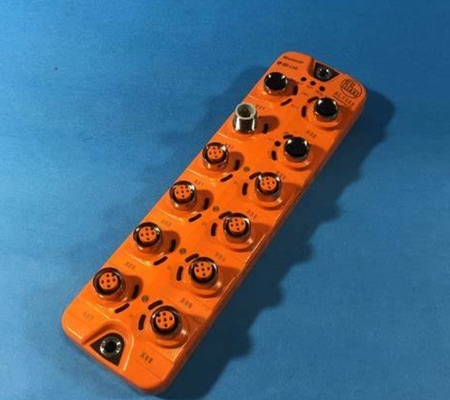

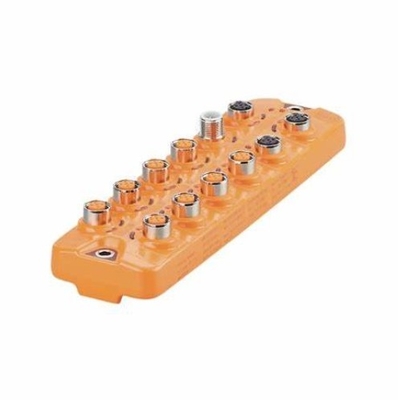

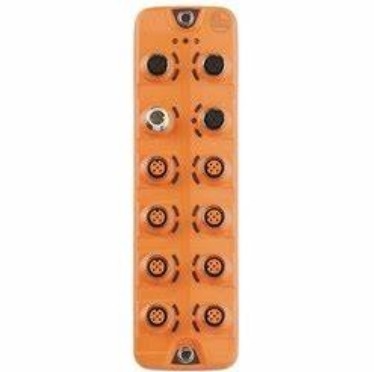

IFM IO-Link Master With EtherNet/IP Interface AL1322 IO-Link Master DL EIP 8P IP67

  • IFM IO-Link Master With EtherNet/IP Interface AL1322 IO-Link Master DL EIP 8P IP67
  • IFM IO-Link Master With EtherNet/IP Interface AL1322 IO-Link Master DL EIP 8P IP67
  • IFM IO-Link Master With EtherNet/IP Interface AL1322 IO-Link Master DL EIP 8P IP67
  • IFM IO-Link Master With EtherNet/IP Interface AL1322 IO-Link Master DL EIP 8P IP67
Place of Origin china
Brand Name IFM
Certification CE
Model Number AL1322
Minimum Order Quantity 1
Price USD$350
Packaging Details carton
Delivery Time 1-2weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Switching Level High [V] 11...30 Number Of Digital Inputs 16; (IO-Link Port Class A: 8 X 2)
Switching Level Low [V] 0...5 Max. Current Load Per Output [mA] 300
Highlight

8P IO-Link Master

,

IP67 IO-Link Master

,

EtherNet/IP IO-Link Master
Leave a Message
Product Description
Application
Application I/O modules for field applications
Daisy-chain function fieldbus interface
Electrical data
Operating voltage [V] 20...30 DC; (US ; to SELV/PELV)
Current consumption [mA] 300...3900; (US)
Protection class III
Sensor supply US
Max. current load total [A] 3.6
Inputs / outputs
Total number of inputs and outputs 16; (configurable)
Number of inputs and outputs Number of digital inputs: 16; Number of digital outputs: 8
Inputs
Number of digital inputs 16; (IO-Link Port Class A: 8 x 2)
Switching level high [V] 11...30
Switching level low [V] 0...5
Digital inputs protected against short circuits yes
Outputs
Number of digital outputs 8; (IO-Link Port Class A: 8 x 1)
Max. current load per output [mA] 300
Short-circuit proof yes
Interfaces
Communication interface Ethernet; IO-Link
Ethernet - EtherNet/IP
Transmission standard 10Base-T; 100Base-TX
Transmission rate 10 MBit/s; 100 MBit/s
Protocol EtherNet/IP
Factory settings
IP address: 192.168.1.250
subnet mask: 255.255.255.255
gateway IP address: 0.0.0.0
MAC address: see type label
Note on interfaces
DHCP, BOOTP, static
DLR (Device Level Ring)
Supported network topologies: line
ring
Ethernet - Internet of Things
Transmission standard 10Base-T; 100Base-TX
Transmission rate 10 MBit/s; 100 MBit/s
Protocol MQTT JSON
Factory settings
IP address: 169.254.x.x
subnet mask: 255.255.0.0
gateway IP address: 0.0.0.0
MAC address: see type label
Note on interfaces
Safety protocol: HTTPS
IO-Link Master
Transmission type COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision 1.1
Number of ports class A 8
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -25...85
Max. relative air humidity [%] 90
Protection IP 65; IP 66; IP 67
Protection rating (NEMA 250) 6P
Degree of soiling 2
Chemical media
ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1 AA
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-4
Shock resistance
DIN EN 60068-2-27
Vibration resistance
DIN EN 60068-2-64 2009-04
DIN EN 60068-2-6 2008-10
MTTF [years] 78
Mechanical data
Weight [g] 403
Material housing: PA orange; Socket: brass nickel-plated
Sealing material FKM
Remarks
Remarks
Further information is available in the manual.
Pack quantity 1 pcs.
Electrical connection - Ethernet
EtherNet/IP X21, X22 Connector: M12; coding: D; sealing: FKM
Electrical connection - IO-Link
IO-Link Port Class A X01...X08 Connector: M12; coding: A; sealing: FKM
Electrical connection - voltage supply
X31 Connector: M12; coding: A
