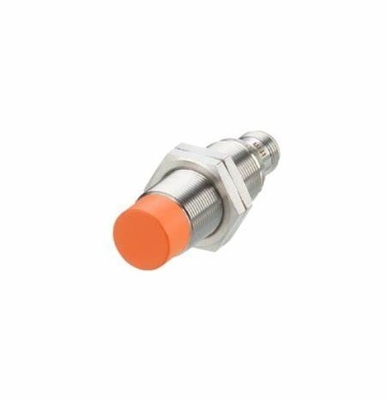

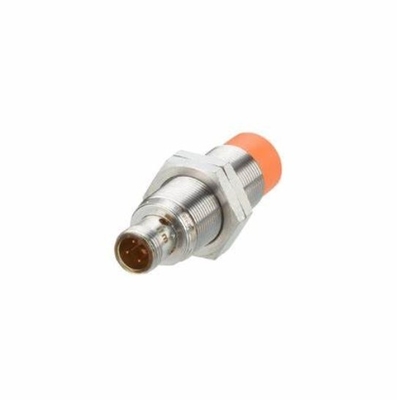

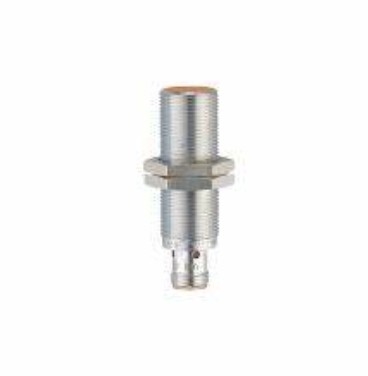

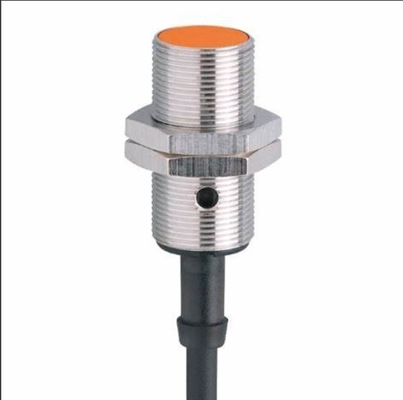

Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication

  • Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication
  • Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication
  • Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication
  • Normally Open / Closed Output Function IFM Inductive Sensor IG6215 IGK4012-FRKG/IO/US-104 with IO-Link Communication
Place of Origin china
Brand Name IFM
Certification CE
Model Number IG6215
Minimum Order Quantity 1
Price 65
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Electrical Design PNP/NPN; (configurable) Output Function Normally Open / Closed; (configurable)
Communication Interface IO-Link Housing Threaded Type
Highlight

IO-Link Communication Inductive Sensor

,

Normally Open/Closed Inductive Sensor

,

IFM Inductive Sensor
Leave a Message
Product Description
Product characteristics
Electrical design PNP/NPN; (configurable)
Output function normally open / closed; (configurable)
Communication interface IO-Link
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 60
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 15
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN; (configurable)
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 300
Notes on switching frequency [Hz]
IO-Link mode: 100
Short-circuit protection yes
Overload protection yes
Monitoring range
Switch point IO-Link [mm] 2.4...12.1; (configurable)
Measuring range IO-Link [mm] 1.3...13
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4
Hysteresis [% of Sr] 3...15
Note on hysteresis
configurable
Linearity error IO-Link [%] ± 2; (of the final value of the measuring range)
Repeatability analog output [%] ± 1; (of the final value of the measuring range)
Temperature coefficient [%/K vom MEW] ± 0,3
Temperature drift ± 10 %; (of the final value of the measuring range)
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel
SIO mode yes
Required master port class A
Min. process cycle time [ms] 3.2
IO-Link process data (cyclical)
Function bit length
process value 16
device status 4
binary switching information 2
IO-Link functions (acyclical) switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag
Supported DeviceIDs
Type of operation DeviceID
default 1344
Note
For further information please see the IODD PDF file at "Downloads"
Operating conditions
Ambient temperature [°C] -40...85
Protection IP 65; IP 66; IP 67; IP 68; IP 69
