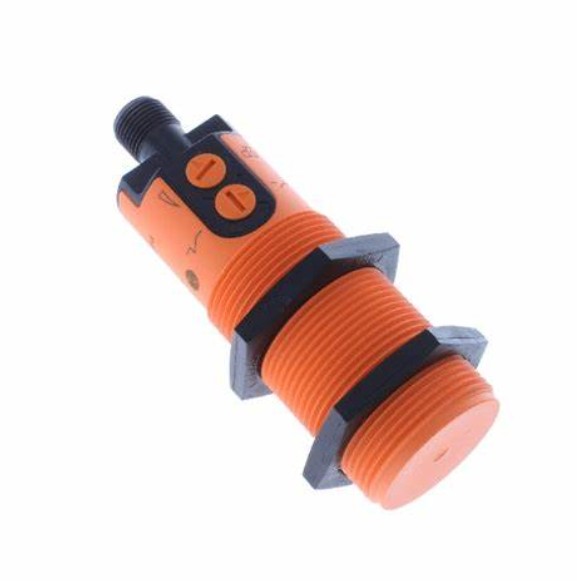

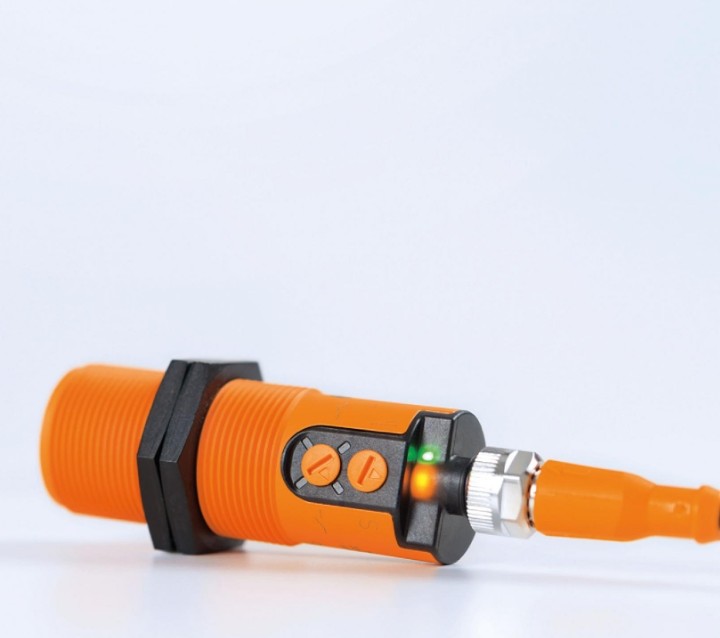

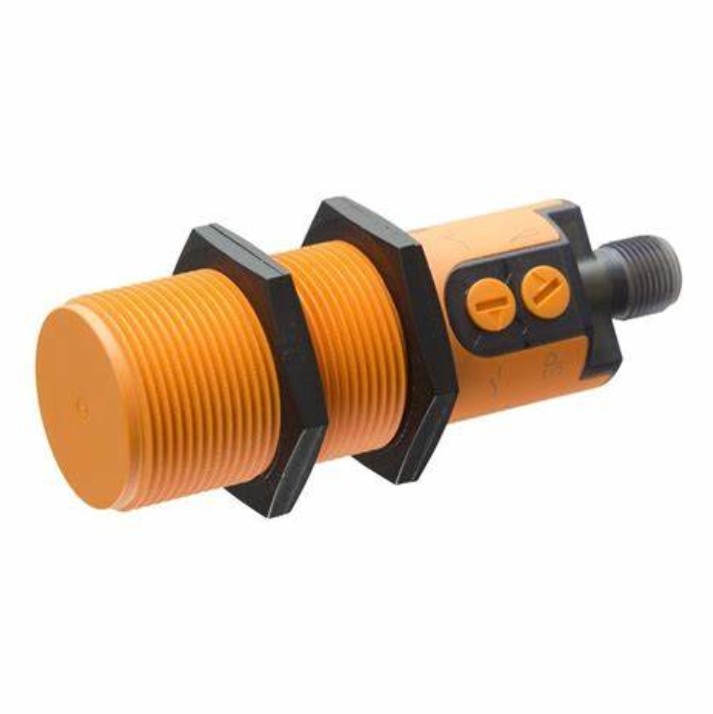

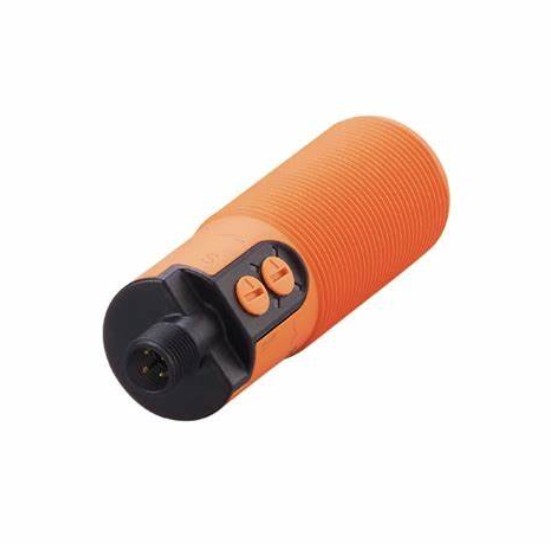

IFM Capacitive Sensor KI6000 KI-3250NFPKG/PL/2P/US/IO

  • IFM Capacitive Sensor KI6000 KI-3250NFPKG/PL/2P/US/IO
  • IFM Capacitive Sensor KI6000 KI-3250NFPKG/PL/2P/US/IO
  • IFM Capacitive Sensor KI6000 KI-3250NFPKG/PL/2P/US/IO
  • IFM Capacitive Sensor KI6000 KI-3250NFPKG/PL/2P/US/IO
Place of Origin china
Brand Name IFM
Certification CE
Model Number KI6000
Minimum Order Quantity 1
Price USD$80
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Electrical Design PNP Output Function Normally Open / Closed; (selectable)
Sensing Range [mm] 0.5...40 Communication Interface IO-Link
Highlight

US Capacitive sensor

,

IO Capacitive sensor

,

PL Capacitive sensor
Leave a Message
Product Description
Product characteristics
Electrical design PNP
Output function normally open / closed; (selectable)
Sensing range [mm] 0.5...40
Communication interface IO-Link
Housing Threaded type
Dimensions [mm] M30 x 1.5 / L = 92
Application
System optical setting aid
Medium temperature [°C] -25...110
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 22
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 30
Short-circuit protection yes
Overload protection yes
Monitoring range
Sensing range [mm] 0.5...40
Sensing range adjustable yes
Factory setting sensing range [mm] 25
Real sensing range Sr [mm] 25 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr] 1...15
Switch-point drift [% of Sr] -10...10
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Process Data Variable; Device Identification
SIO mode yes
Required master port class A
Min. process cycle time [ms] 20
IO-Link functions (acyclical) application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); Switch point setting; Hysteresis
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 65; IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 30 kV AD / 4 kV CD
EN 61000-4-3 10 V/m
EN 61000-4-4 2 kV
EN 61000-4-6 10 V
EN 55011 class B
Vibration resistance
DIN EN 60947-5-2 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz
Shock resistance
DIN EN 60947-5-2 30 g 6 shocks / 11 ms half-sine (x, y, z)
MTTF [years] 767.68
UL approval
Ta -25...60 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
UL approval number D001
File number UL E174191
Mechanical data
Weight [g] 53.8
Housing Threaded type
Mounting non-flush mountable
Dimensions [mm] M30 x 1.5 / L = 92
Thread designation M30 x 1.5
Material PBT; PC; POM
