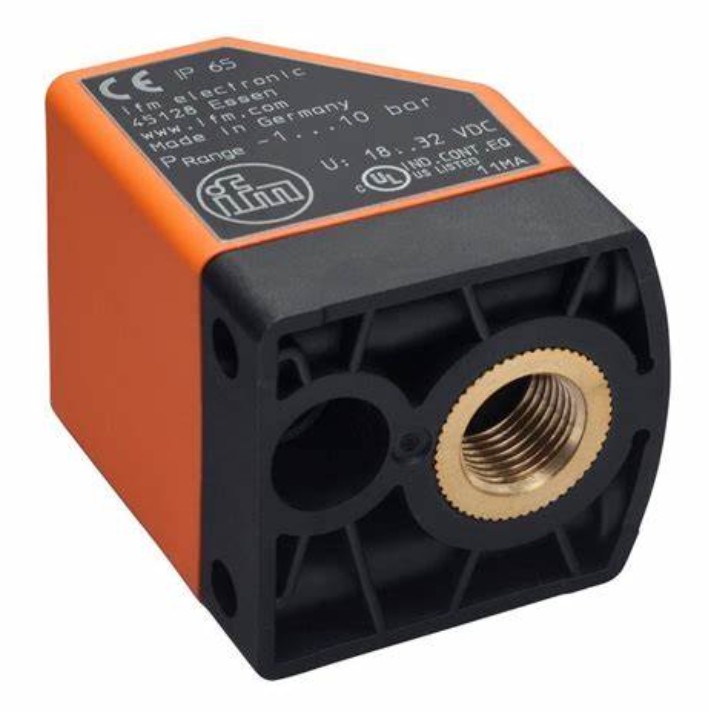

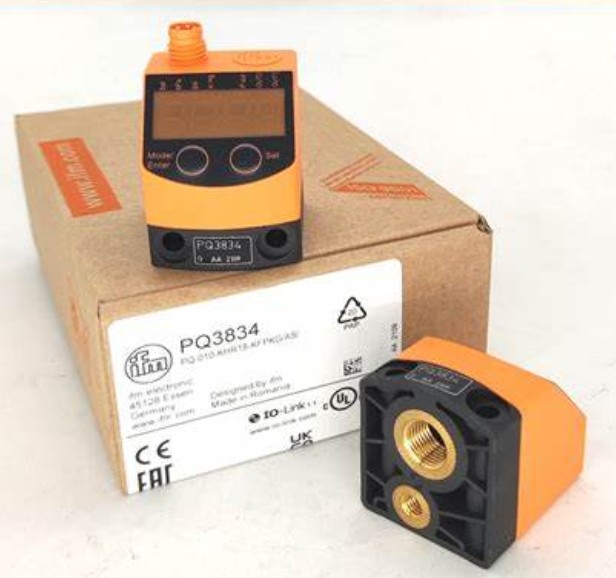

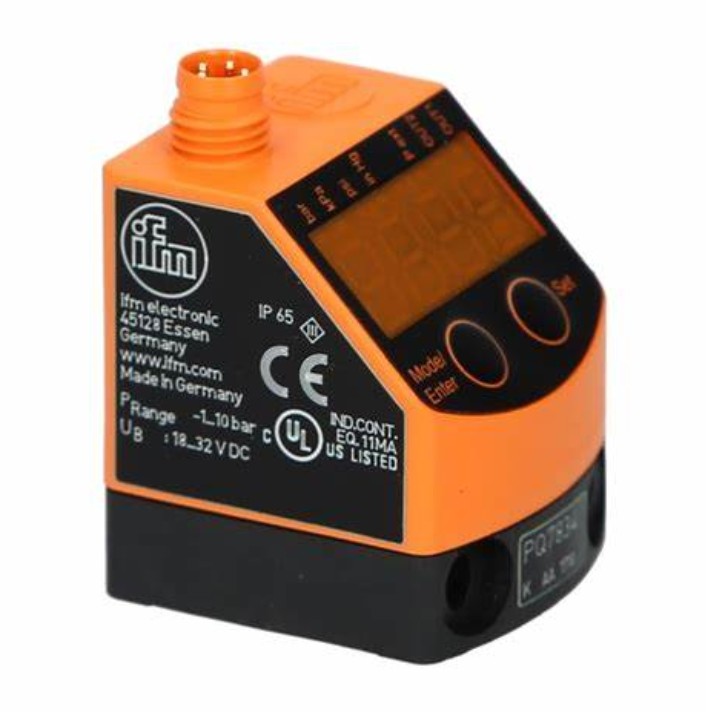

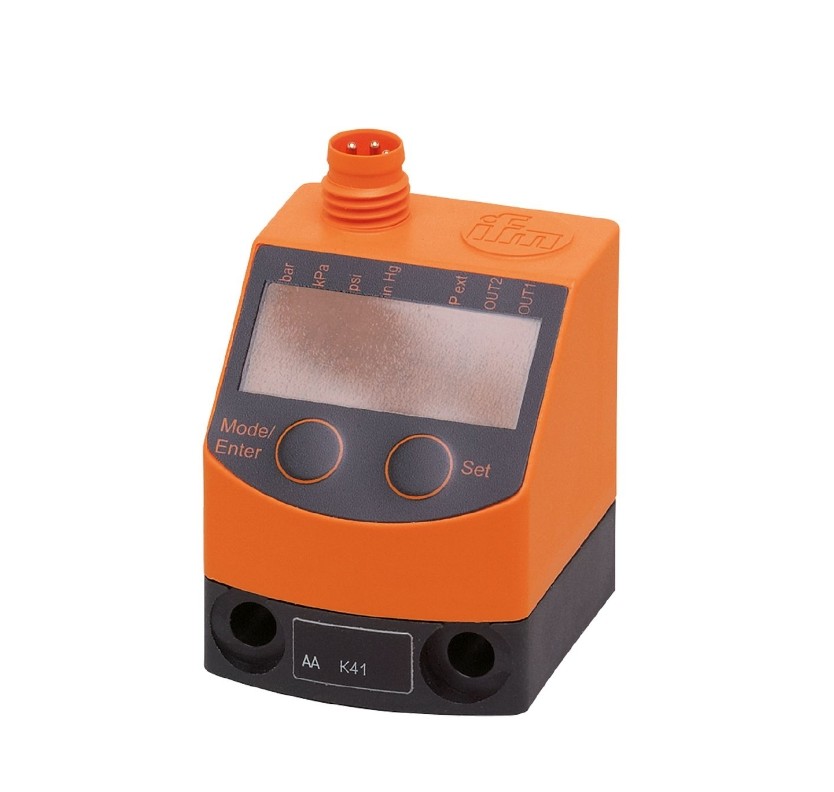

IFM Pressure Sensor For Pneumatics PQ7834 PQ-010-RHR18-QFPKG/AS/

  • IFM Pressure Sensor For Pneumatics PQ7834 PQ-010-RHR18-QFPKG/AS/
  • IFM Pressure Sensor For Pneumatics PQ7834 PQ-010-RHR18-QFPKG/AS/
  • IFM Pressure Sensor For Pneumatics PQ7834 PQ-010-RHR18-QFPKG/AS/
  • IFM Pressure Sensor For Pneumatics PQ7834 PQ-010-RHR18-QFPKG/AS/
Place of Origin china
Brand Name IFM
Certification CE
Model Number PQ7834
Minimum Order Quantity 1
Price USD$100
Packaging Details carton
Delivery Time in stock
Payment Terms D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
System Gold-plated Contacts Application For Industrial Applications
Media Compressed Air Vacuum Resistance [mbar] -1000
Highlight

IFM Pressure sensor

,

PQ7834 Pressure sensor

,

Pneumatics Pressure sensor
Leave a Message
Product Description
Number of inputs and outputs Number of digital outputs: 2
Measuring range
-1...10 bar -15...145 psi -30...296 inHg -100...1000 kPa
Process connection threaded connection G 1/8 Internal thread
Application
System gold-plated contacts
Application for industrial applications
Media compressed air
Conditionally suitable for other media on request
Medium temperature [°C] 0...60
Min. bursting pressure
30 bar 435 psi 886 inHg 3000 kPa
Pressure rating
20 bar 290 psi 591 inHg 2000 kPa
Vacuum resistance [mbar] -1000
Type of pressure relative pressure; vacuum
Electrical data
Operating voltage [V] 18...32 DC; (to SELV/PELV)
Current consumption [mA] < 50
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Overvoltage protection yes; (< 40 V)
Power-on delay time [s] 0.3
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2
Outputs
Total number of outputs 2
Output signal switching signal
Electrical design PNP
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] < 200
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Measuring/setting range
Measuring range
-1...10 bar -15...145 psi -30...296 inHg -100...1000 kPa
Set point SP
-0.9...10 bar -13...145 psi -26...296 inHg -90...1000 kPa
Reset point rP
-0.95...9.95 bar -14...144 psi -28...294 inHg -95...995 kPa
In steps of
0.05 bar 1 psi 2 inHg 5 kPa
Accuracy / deviations
Switch point accuracy [% of the span] < ± 0,5
Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span] < ± 0,25
Long-term stability [% of the span] < ± 0,05; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K] 0,2; (0...60 °C)
Temperature coefficient span [% of the span / 10 K] 0,2; (0...60 °C)
Reaction times
Response time [ms] < 2.5
Delay time programmable dS, dr [s] 0; 0,002...5
Software / programming
Parameter setting options hysteresis / window; normally open / closed; Diagnostic function; switching logic; switch-on/switch-off delay; Damping; Display unit
Operating conditions
Ambient temperature [°C] 0...70
Storage temperature [°C] -25...85
Protection IP 65
