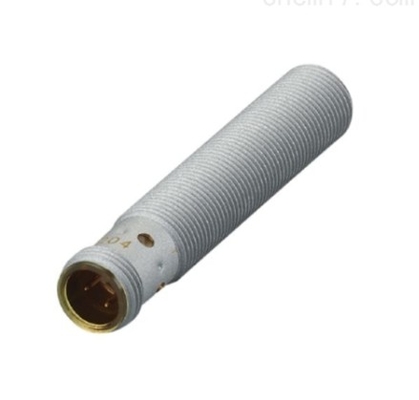

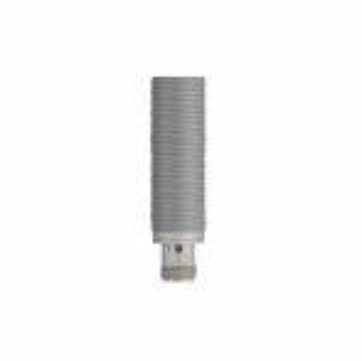

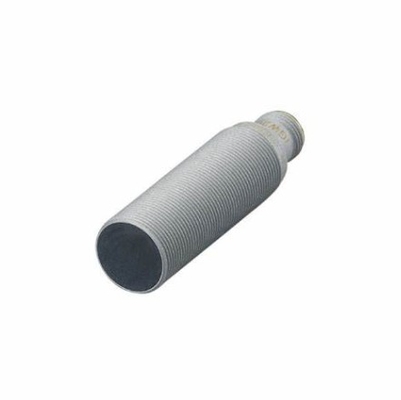

IFM Inductive Sensor IGW202 IGK3008UBPKG/K1/SC/US-104 M18 X 1 / L 65 Sensing Range 8mm Ideal For Industrial

  • IFM Inductive Sensor IGW202 IGK3008UBPKG/K1/SC/US-104 M18 X 1 / L 65 Sensing Range 8mm Ideal For Industrial
  • IFM Inductive Sensor IGW202 IGK3008UBPKG/K1/SC/US-104 M18 X 1 / L 65 Sensing Range 8mm Ideal For Industrial
  • IFM Inductive Sensor IGW202 IGK3008UBPKG/K1/SC/US-104 M18 X 1 / L 65 Sensing Range 8mm Ideal For Industrial
  • IFM Inductive Sensor IGW202 IGK3008UBPKG/K1/SC/US-104 M18 X 1 / L 65 Sensing Range 8mm Ideal For Industrial
  • IFM Inductive Sensor IGW202 IGK3008UBPKG/K1/SC/US-104 M18 X 1 / L 65 Sensing Range 8mm Ideal For Industrial
Place of Origin china
Brand Name IFM
Certification CE
Model Number IGW202
Minimum Order Quantity 1
Price USD$18
Packaging Details carton
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Electrical Design PNP Output Function Normally Open
Sensing Range [mm] 8 Dimensions [mm] M18 X 1 / L = 65
Highlight

M18 Inductive Sensor

,

Industrial Inductive Sensor

,

L 65 Inductive Sensor
Leave a Message
Product Description
Product characteristics
Electrical design PNP
Output function normally open
Sensing range [mm] 8
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 65
Application
System gold-plated contacts; Increased sensing range; correction factor = 1; Magnetic-field immune
Application Inductive sensors for welding applications
Magnetic-field immune yes
Max. electromagnetic field immunity [mT] 300
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 20
Protection class II
Reverse polarity protection yes
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 2000
Short-circuit protection yes
Overload protection yes
Monitoring range
Sensing range [mm] 8
Real sensing range Sr [mm] 8 ± 10 %
Operating distance [mm] 0...6.48
Increased sensing range yes
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1
Hysteresis [% of Sr] 3...15
Switch-point drift [% of Sr] -10...10
Correction factor = 1 yes
Operating conditions
Ambient temperature [°C] -40...85
Protection IP 65; IP 66; IP 67; IP 68; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 emission class B
