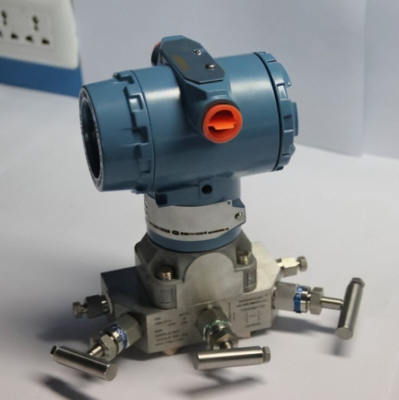

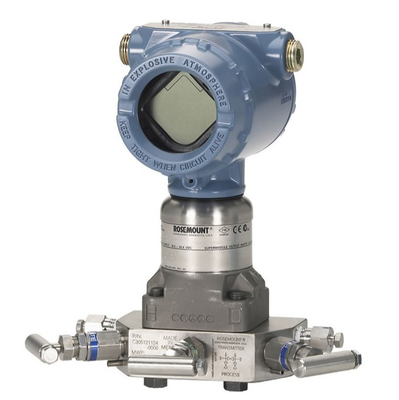

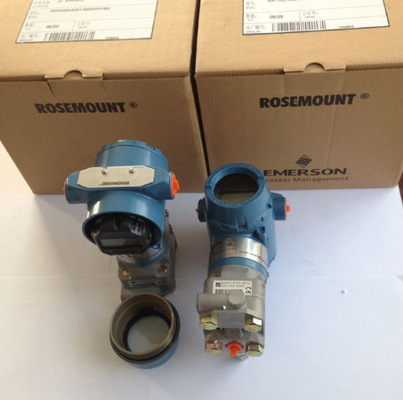

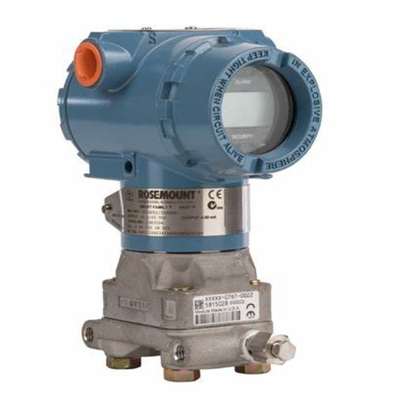

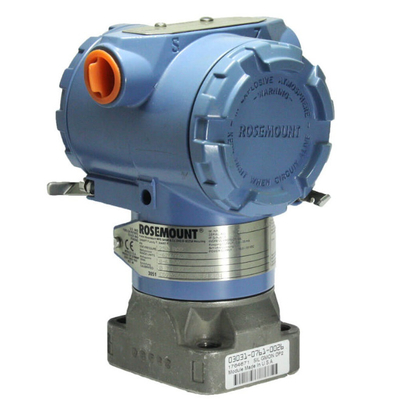

3051Emerson Rosemounte Pressure Transmitter 4-20ma Pressure Transmitters3051CD 3051gp 3051S 3051TG Pressure Sensors
| Place of Origin | Singapore |
|---|---|
| Brand Name | Rosemount |
| Certification | - |
| Model Number | 3051CD |
| Minimum Order Quantity | 1 |
| Price | USD340/PC |
| Packaging Details | Original |
| Delivery Time | 1-2WEEKS |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Customized Support | OEM, ODM | Brand Name | Rosemount |
|---|---|---|---|
| Model Number | 3051 | Material | Stainless Steel, Aluminum |
| Output | 4-20ma | Pressure Type | Gauge Pressure Absolute |
| Protection Level | IP 65 | Usage | Industrial Usage |
| Highlight | 3051S Pressure Transmitter,3051gp Pressure Transmitter,3051Emerson Rosemounte Pressure Transmitter |
||
Product Description
- Warranty
- Up to 5-year limited warranty
- Rangedown
- Up to 150:1
- Communication Protocol
- 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
- Measurement Range
- Up to 20000 psig (1378,95 bar) gage
Up to 20000 psia (1378,95 bar) absolute
- Process Wetted Material
- 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
- Diagnostics
- Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
- Certifications/Approvals
- SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
- Wireless Update Rate
- 1 sec. to 60 min., user selectable
- Power Module Life
- Up to 10-year life, field replaceable (order separately)
- Wireless Range
- Internal antenna (225 m)
-
Product Description
Confidently measure pressure and level with the Rosemount 3051 In-Line Pressure Transmitter. Engineered for 10-year installed stability and 0.04% of span accuracy, this industry-leading pressure transmitter provides you with the information necessary to run, control and monitor processes. Available with a graphical, back-lit display, Bluetooth® connectivity, and enhanced software capabilities designed to access the data you need faster than ever before.
