Honeywell Differential Pressure Transmitter STD735-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000
| Place of Origin | China |
|---|---|
| Brand Name | Honeywell |
| Certification | CCC,CE |
| Model Number | STD735-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000 |
| Minimum Order Quantity | 1 |
| Price | 540USD/PC |
| Packaging Details | Original |
| Delivery Time | 1 Weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Differential Pressure Transmitter | Process Connection | 1/4" NPTF Female Thread Std |
|---|---|---|---|
| Fill Fluid | Silicone Oil 200 | Process Head Material | 316 Stainless Steel |
| Diaphragm Material | 316L Stainless Steel | Bolt/Nut Materials | Carbon Steel |
| Analog Output | 4-20mA Dc | Digital Protocol | HART Protocol |
| Weight | 5kg | ||
| Highlight | Honeywell Differential Pressure Transmitter,STD735-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000 Differential Pressure Transmitter |
||
Product Description

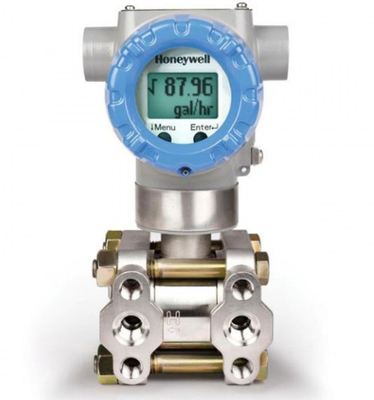

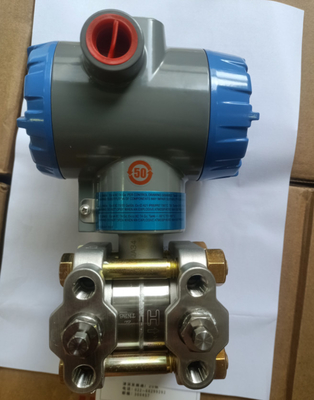

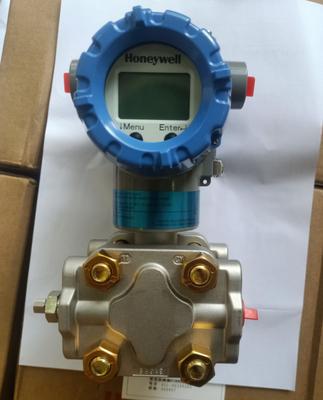

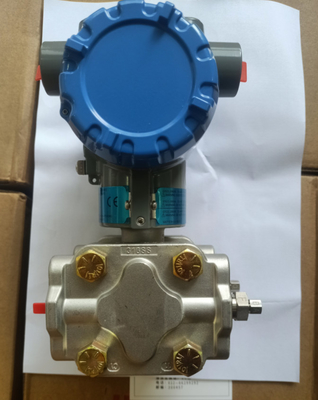

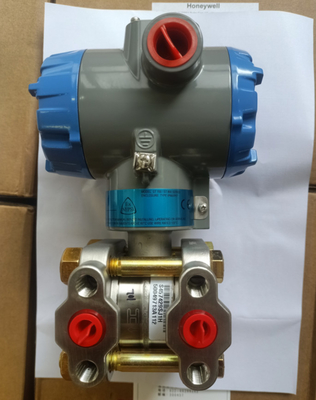

Honeywell Differential Pressure Transmitter STD735-E1AC4AS-1-G-AHS-11S-A-00A0-00-0000
Features:
• Accuracies up to 0.05% of span standard & 0.04% of span optional.
• Stability up to 0.02% of URL per year for 10 years.
• Automatic static pressure & temperature compensation.
• Rangeability up to 100:1.
• Response times as fast as 100ms.
• Multiple local display capabilities.
• External zero, span, & configuration capability.
• Polarity insensitive electrical connections.
• Comprehensive on-board diagnostic capabilities.
• Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0.
• World class overpressure protection.
• Full compliance to SIL 2/3 requirements.
• Modular design characteristics
• Available with additional 4-year warranty
