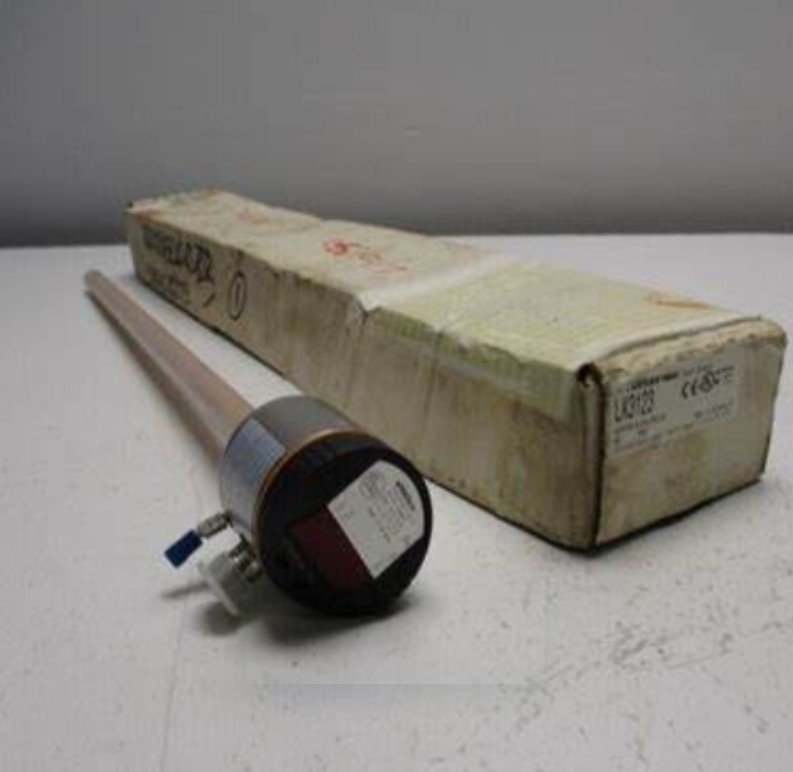

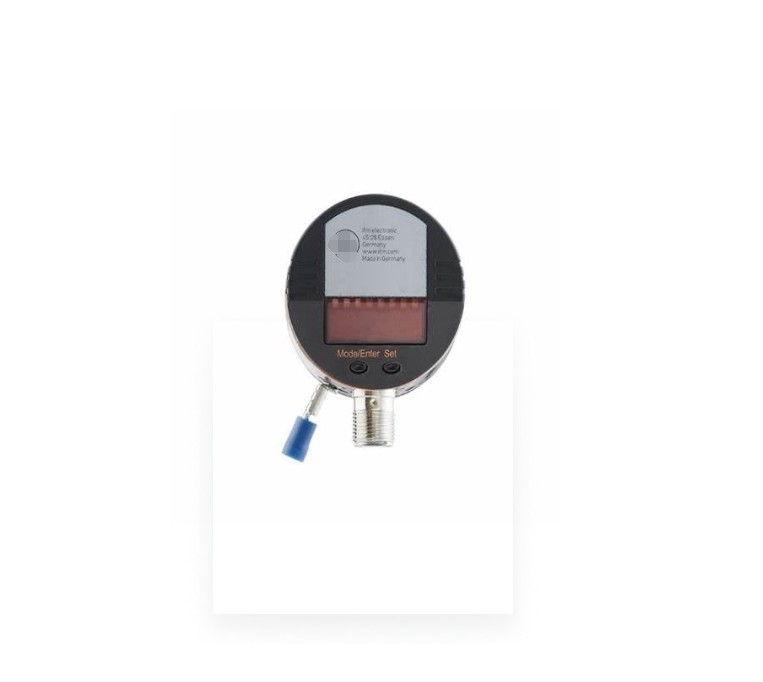

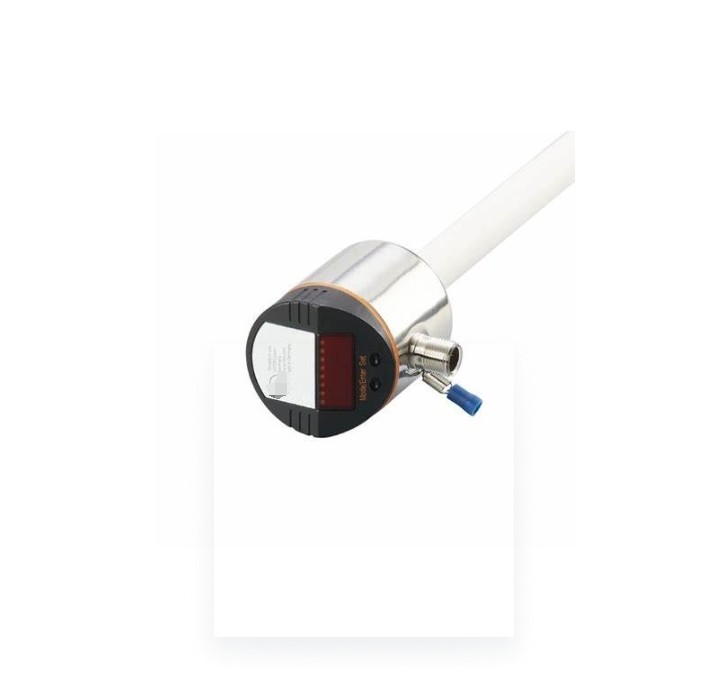

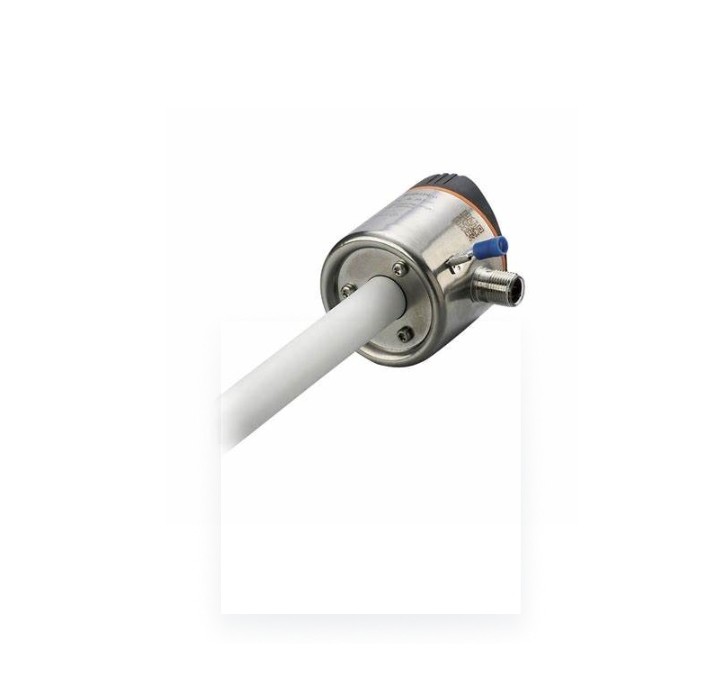

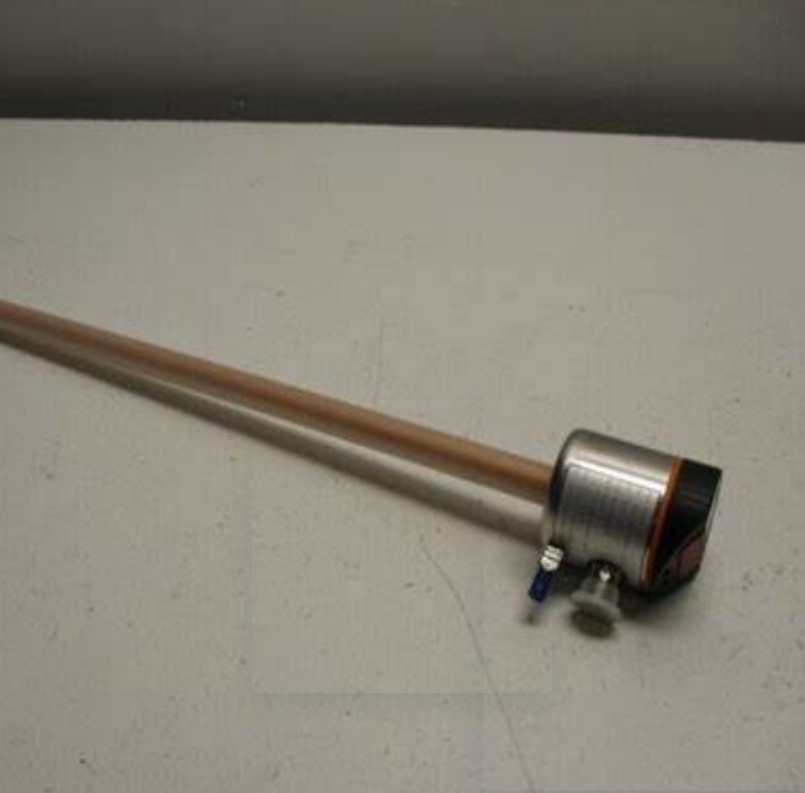

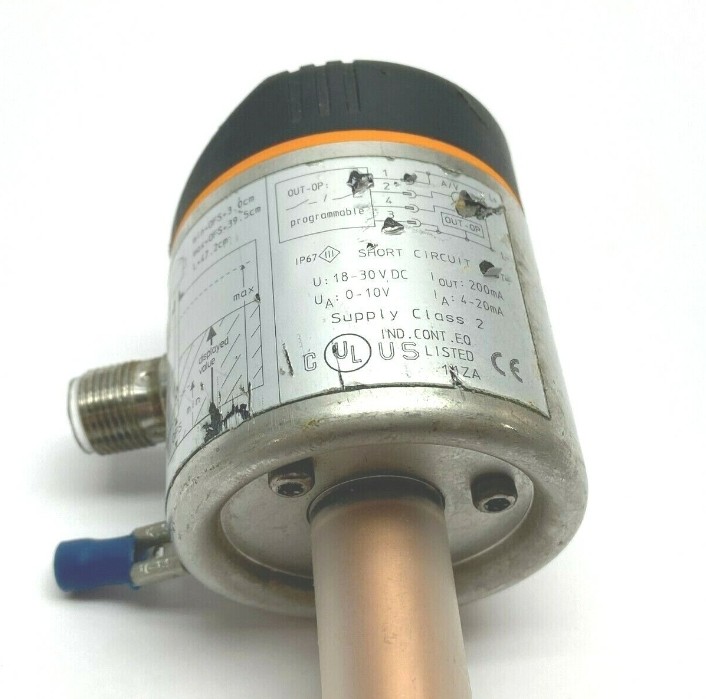

IFM Electronic level sensor LK3123 LK0472B-B-00KLPKG/US

  • IFM Electronic level sensor LK3123 LK0472B-B-00KLPKG/US
  • IFM Electronic level sensor LK3123 LK0472B-B-00KLPKG/US
  • IFM Electronic level sensor LK3123 LK0472B-B-00KLPKG/US
  • IFM Electronic level sensor LK3123 LK0472B-B-00KLPKG/US
  • IFM Electronic level sensor LK3123 LK0472B-B-00KLPKG/US
  • IFM Electronic level sensor LK3123 LK0472B-B-00KLPKG/US
Place of Origin china
Brand Name IFM
Certification CE
Model Number LK3123
Minimum Order Quantity 1
Price USD$300
Packaging Details carton
Delivery Time 6-8weeks
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500pc

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Probe Length L [mm] 472 System Gold-plated Contacts
Medium Temperature [°C] 0...70 Operating Voltage [V] 18...30 DC
Highlight

Electronic level sensor LK0472B-B-00KLPKG/US

,

Electronic level sensor LK3123

,

Electronic level sensor
Leave a Message
Product Description
Product characteristics
Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Factory setting hydrous coolants; water; media similar to water
Probe length L [mm] 472
Application
System gold-plated contacts
Media hydrous coolants; oils; oil-based media; water; media similar to water
Dielectric constant of the medium > 2
Cannot be used for extremely conductive media; adhering media; granulates; bulk material; acids; alkali; food and electroplating industry
Maximum speed of the change of level [mm/s] 200
Tank pressure [bar] 0.5; (when mounting with mounting accessories: E43001 - E43007, E43019)
Coolants
Medium temperature [°C] 0...35; (with climate tube E43101: 35...60 °C)
Oil
Medium temperature [°C] 0...70
Medium temperature short time [°C] 0...90; (< 1 h)
Water
Medium temperature [°C] 0...35; (with climate tube E43101: 35...60 °C)
Electrical data
Operating voltage [V] 18...30 DC
Current consumption [mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time [s] < 3
Measuring principle capacitive
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analog signal; IO-Link
Electrical design PNP/NPN
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Number of analog outputs 1
Analog current output [mA] 4...20, invertible
Max. load [Ω] 500
Analog voltage output [V] 0...10, invertible
Min. load resistance [Ω] 2000
Short-circuit protection yes
Type of short-circuit protection thermal, pulsed
Overload protection yes
Measuring/setting range
Factory setting hydrous coolants; water; media similar to water
Probe length L [mm] 472
Active range A [mm] 390
Inactive range I1 / I2 [mm] 60 / 22
Setting range
Set point SP [mm] 35...390
Reset point rP [mm] 30...385
Hysteresis [mm] 5
Reference point OP [mm] 139 - 163 - 188 - 212 - 236 - 261 - 285 - 310 - 334 - 358 - 383 - 407 - OFF
Hysteresis, OP [mm] 3
Accuracy / deviations
Measuring error [% of the final value] ± 5
Repeatability ± 2
Resolution [mm] 5
Zero signal (voltage) [V] 0
Zero signal (current) [mA] 4.0
Full signal (voltage) [V] 10
Full signal (current) [mA] 20
